产品技术规格
| 应用领域 | 汽车 |
|---|---|
| 1 | 5.055 |
| 16000 | 3.096 |
| 20 | 4.814 |
| 3Ddrawings | https://productdata.aptiv.com/api/assetstorage/2949_06408d75-c55b-40a3-a878-6cf9227fdd85/12010974_3D_STP |
| 4000 | 3.251 |
| 800 | 3.344 |
| 8000 | 3.158 |
| Assembly Country of Origin | Not available |
| batch | N |
| BRHTS | 85389090 |
| CAHTS | 8538903900 |
| Catalogue | https://productdata.aptiv.com/api/assetstorage/2949_2817c047-0281-49f5-a58a-4d43263f7063/Low%20Voltage%20Catalog |
| CNHTS | 8547200000 |
| Country of Diffusion | Not available |
| Country of Origin | United States |
| Drawings | https://productdata.aptiv.com/api/assetstorage/2949_1cee8f1a-3329-43a5-bdf8-c4acbf2236e8/12010974_2D_PDF |
| ECCN | EAR99 |
| ELV | True |
| JPHTS | 853890000 |
| REACH | True |
| RoHS | True |
| RoHS状态 | RoHS Compliant |
| Standard Pack Qty | 800 |
| TARIC | 8538909999 |
| USHTS | 8538906000 |
| 主体材料 | PA66 HI |
| 主锁定类型 | CAVITY LOCK |
| 交期 | 70 Days |

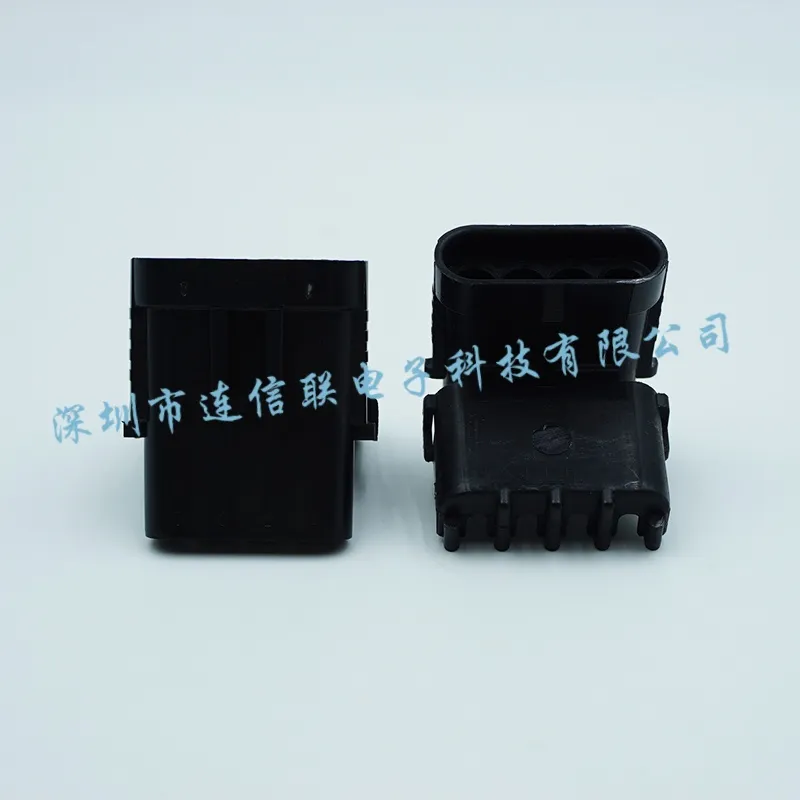

| 产品名称 | 12010974 (APTIV) |
| 产品描述 | 4 Way Black Weather Pack Shroud Sealed Male Connector, Max Current 20 amps |
| 产品概述 | Aptiv’s Weather Pack connectors are environmentally sealed electrical connectors designed to withstand exposure to extreme temperatures and moisture. They feature tin-plated terminals with special core wings that allow crimp-only connections, eliminating the need for solder. The connector and cavity seals are triple-ribbed and made of self-lubricating silicone. Cavity plugs are available to fill unused cavities. Weather Pack terminals utilize a flex-pin and lap-lock design to alleviate the problem of stress relaxation. They also have dual-locking tangs that lock into the connector cavity and help prevent backing out. |
| 产品状态 | GLOBAL - PN IN USE / HAS FUTURE USE |
| 产品系列 | Weather-Pack |
| 产品链接 | https://www.mouser.hk/en/ProductDetail/Aptiv-formerly-Delphi/12010974?qs=Pw7FMpsglsXRJdoBUlz3vQ%3D%3D |
| 产地 | 美国/USA |
| 公端/母端 | 公端 |
| 净重 | 10.36716 g |
| 出线方向 | 180° |
| 制造地点 | FR47 - CS PLANT 47 US |
| 单位重量（kg） | 0.0122585 |
| 品名 | 塑壳 |
| 回路数 | 4 |
| 基本分类 | 连接器 |
| 官方产品图片1 | https://productdata.aptiv.com/api/assetstorage/2949_a37382ce-b6a1-469c-9936-94ca6478c06a/12010974 |
| 官方产品图片2 | https://productdata.aptiv.com/api/assetstorage/2949_3232a8ed-4bfb-4311-b3c1-5c08075b1c05/12015792 |
| 宽度 | 39.5 |
| 对配产品 | 12015797 |
| 工作温度范围 | -40 to 125 |
| 排数 | 1排 |
| 接口性别 | Male |
| 插片宽度 | 2.6mm |
| 数据手册 | https://www.mouser.com/catalog/specsheets/Delphi Connection Systems_aptiv-12010974-datasheet.pdf |
| 是否密封 | True |
| 替代包装型号 | 12010974-B |
| 材料 | PA 66 |
| 标准包装数量 | 0 |
| 电路数 | 4 |
| 电路数(装载) | 4 |
| 触头材料 | PA66 |
| 贸泽编号 | 829-12010974 |
| 配套密封件 | 12010300, 15324982 |
| 配套端子 | 12089040 |
| 长度 | 46.7 |
| 颜色 | BLACK |
| 高度 | 17.1 |
| 接触件材质 | PA66 |
| 包装 | Bulk |
相关产品信息
同品牌、系列或类别的相似产品（不代表兼容或可替代）
已核验询价信息
- Packaging
- Bulk
- 最小订购量
- 1
制造商及授权来源记录
产品资料
12010974
12010974 是 Aptiv (formerly Delphi) 的 Connectors产品。适用信息：Aptiv’s Weather Pack connectors are environmentally sealed electrical connectors designed to withstand exposure to extreme temperatures and moisture. They feature tin-plated terminals with special core wings that allow crimp-only connections, eliminating the need for solder. The connector and cavity seals are triple-ribbed and made of self-lubricating silicone. Cavity plugs are available to fill unused cavities. Weather Pack terminals utilize a flex-pin and lap-lock design to alleviate the problem of stress relaxation. They also have dual-locking tangs that lock into the connector cavity and help prevent backing out.。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Aptiv (formerly Delphi)
制造商
Aptiv (formerly Delphi)
产品类别
Connectors
技术参数
| 产品状态 | Active |
|---|---|
| 电路数(装载) | 4 |
| 电路数 | 4 |
| 主体材料 | PA66 HI |
| 插片宽度 | 2.6mm |
| 公端/母端 | 公端 |
| 工作温度范围 | -40 to 125 |
| Packaging | Bulk |
| Standard Pack Qty | 800 |
| 单位重量（kg） | 0.0122585 |
| 宽度 | 39.5 |
| 材料 | PA 66 |
| 长度 | 46.7 |
| 颜色 | BLACK |
| 高度 | 17.1 |
| 净重 | 10.36716 g |
| 回路数 | 4 |
| 出线方向 | 180° |
| 制造地点 | FR47 - CS PLANT 47 US |
| 接口性别 | Male |
| 是否密封 | True |
| 主锁定类型 | CAVITY LOCK |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
| 替代包装型号 | 12010974-B |
合规信息
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8538909999 |
| CAHTS | 8538903900 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| ELV | True |
| RoHS | True |
| REACH | True |
其他信息
| 产地 | 美国/USA批量参考批次： |
|---|---|
| 品名 | 塑壳 |
配套产品
| 对配产品 | 12015797 |
|---|
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
