产品资料

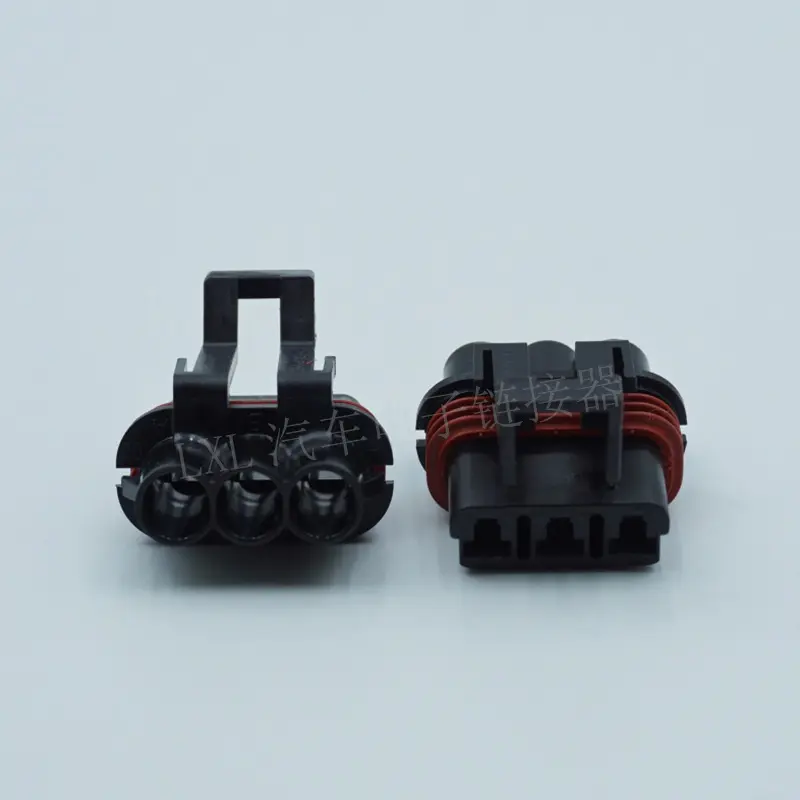

12040977
12040977 是 Aptiv (formerly Delphi) 的 Connectors产品。适用信息：Metri-Pack 280 Series comes with a line of sealed and unsealed device and in-line wire-to-wire connectors. These versatile connectors are suitable for Marine, appliance, and industrial applications. The sealed connectors utilize triple rib peripheral silicone rubber that makes these connectors suitable for harsh environment.。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Aptiv (formerly Delphi)
制造商
Aptiv (formerly Delphi)
产品类别
Connectors
技术参数
| Packaging | Bulk |
|---|---|
| Standard Pack Qty | 1100 |
| 单位重量（kg） | 0.007280891 |
| 颜色 | BLACK |
| 材料 | PA 66 |
| 长度 | 36.7 |
| 宽度 | 30.4 |
| 高度 | 26.5 |
| 接口性别 | Female |
| 回路数 | 3 |
| 是否密封 | True |
| 主锁定类型 | CAVITY LOCK |
| 出线方向 | 180° |
| 产品状态 | GLOBAL - PN IN USE / HAS FUTURE USE |
| 制造地点 | 10007 - CS JAMBEIRO, BRAZIL |
| 净重 | 6.27293 g |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
| 替代包装型号 | 12040977-B |
合规信息
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8538909999 |
| CAHTS | 8538903900 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Mexico |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| RoHS | True |
| REACH | True |
| ELV | True |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
