13648598

产品资料

13648598

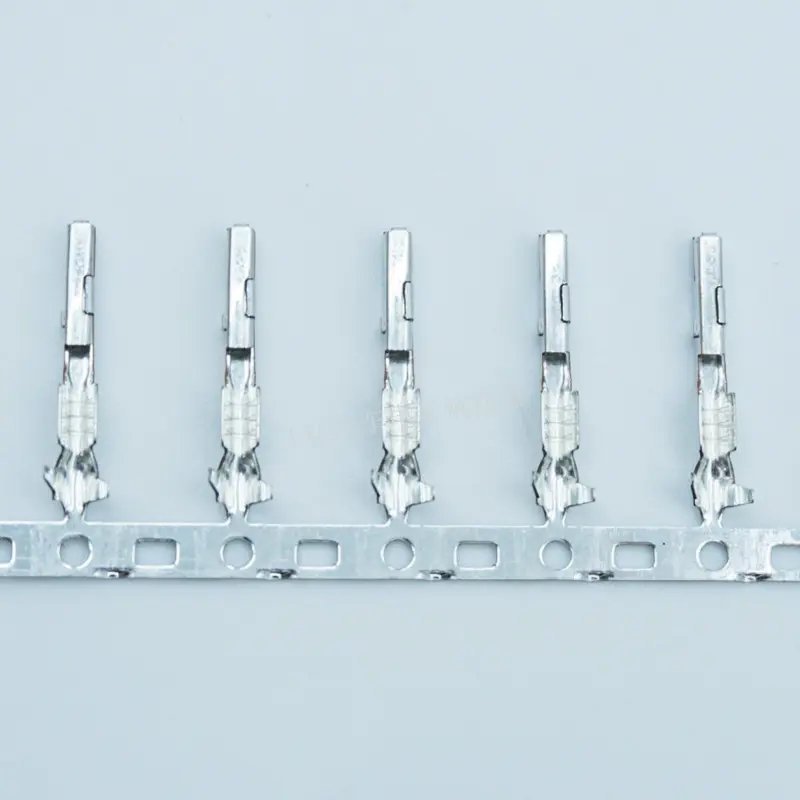

13648598 是 Aptiv (formerly Delphi) 的 Terminals产品。适用信息：The clean body design allows GTS 0.64 Unsealed Terminals to pass through a mat seal smoothly, reducing assembly complexity and operator error. Available configurations include both genders, wire gages from 22–18 AWG (0.22 - 0.85mm2), and tin and gold plating options. Contact mating force is less than 3 N, with an unmating force of under 0.5 N. Advanced construction allows for 20 mating cycles and a cavity pullout force of more than 80 N. And with a maximum temperature range of 120° C and maximum vibration rating of 15G, the GTS 0.64 is built to withstand the harshest environmental conditions.。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
