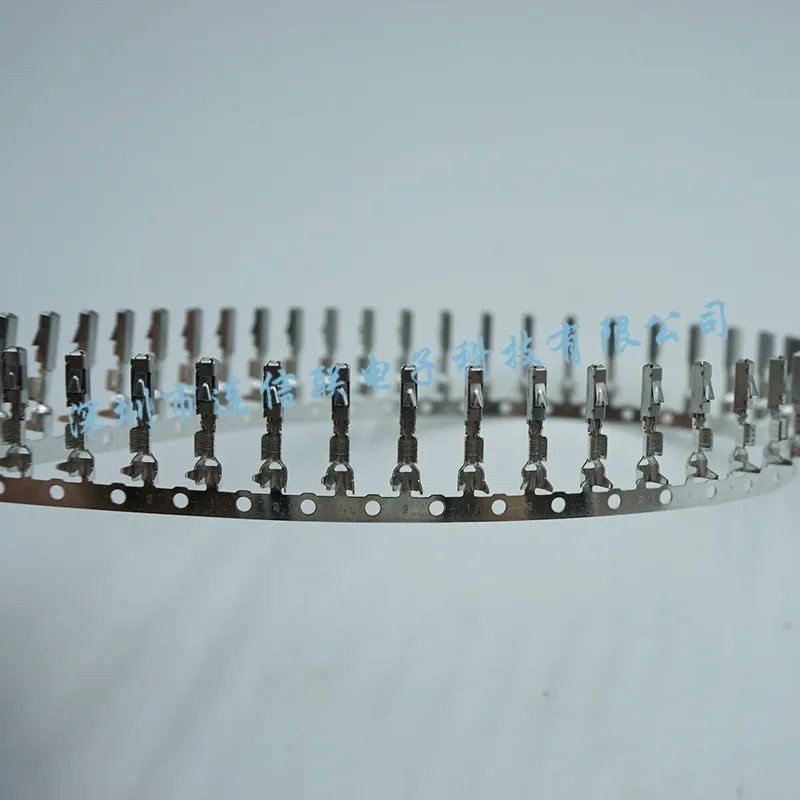

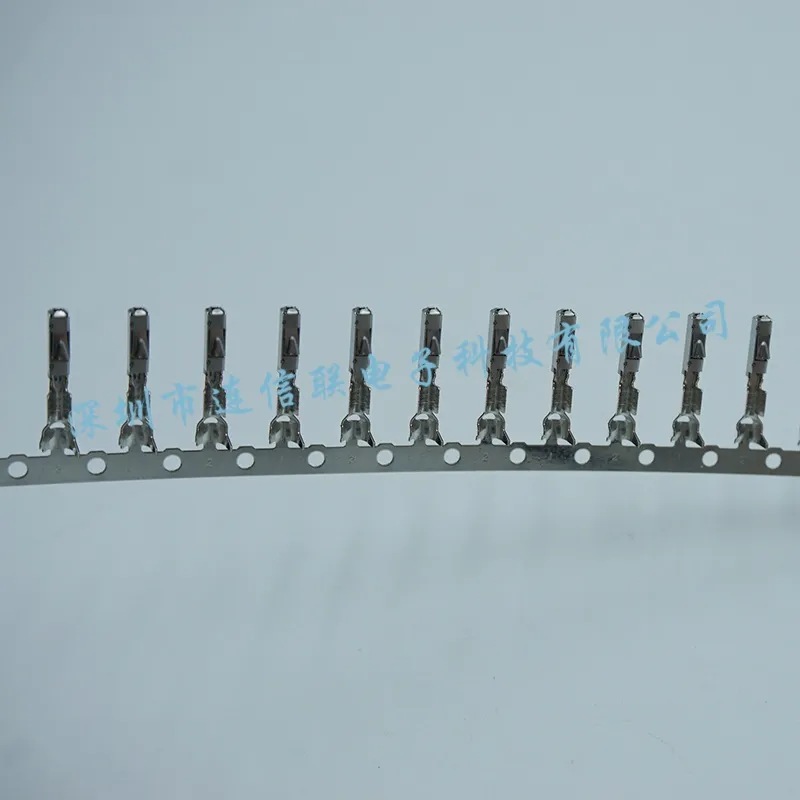

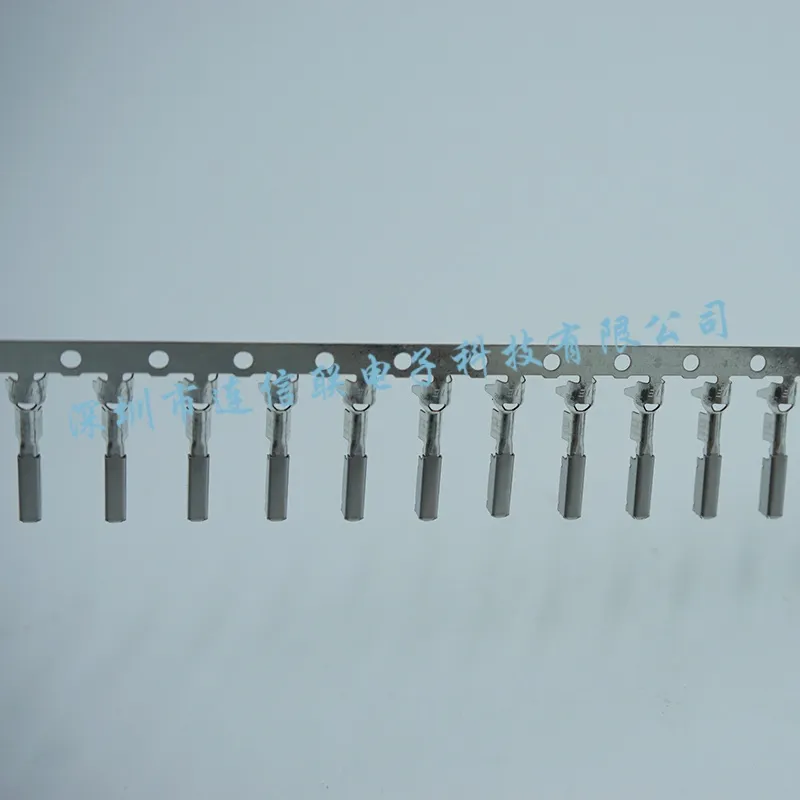

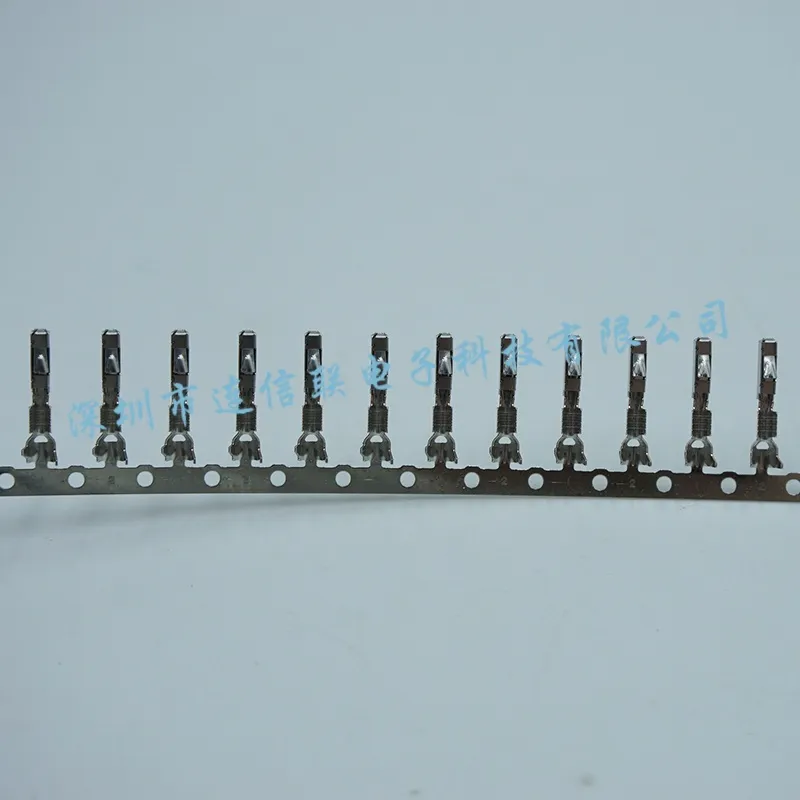

TE Connectivity 5-965906-1 连接器端子

描述: Automotive Terminals, Receptacle, Mating Tab Width .63 mm [.025 in], Tab Thickness .63 mm [.025 in], 20 – 18 AWG Wire Size, MQS
参数: TE内部编号: 5-965906-1 公端/母端: 母端 线规-AWG: 18 AWG

¥ 0.14

包装
- 个
- 箱
- 盘

加入购物车

添加到心愿单

销售与网站使用条款
价格、库存与交期以订单确认为准

香港标准配送：17:00 截单，处理 3 个工作日 + 运输 3 个工作日，周一至周五，免运费。查看配送政策

品牌：TE Connectivity 产品类别：汽车端子

5-965906-1

5-965906-1 是 TE Connectivity / AMP 的 Automotive Terminals产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。

品牌

TE Connectivity / AMP

制造商

TE Connectivity / AMP

产品类别

Automotive Terminals

技术参数

Packaging	Reel
Standard Pack Qty	9000
单位重量（kg）	0.00012
Terminal Type	Receptacle
Wire Size ( A W G)	20 – 18
Wire Size (Mm²)	.5 – .75
Mating Tab Width	.63 mm [ .025 in ]
Interface Plating	Tin (Sn)
Product Features & Characteristics	Select All
Receptacle Style	180°
Primary Locking Feature	Locking Lance
Sealable	Yes
Terminal Seal Type	Single Wire Seal (SWS)
Wire Contact Termination Area Plating Material	Tin
Contact Fabrication	Stamped & Formed
Contact Size	.63mm
Crimp Type	F-Crimp
Typical Current Rating ( A)	7.5
Mating Tab Thickness	.63 mm [ .025 in ]
Termination Method To Wire & Cable	Crimp
Product Terminates To	Wire
Compatible Insulation Diameter Range	2.4 – 2.6 mm [ .09 – .1 in ]
Wire Size Search (Mm²)	.5 \| .6 \| .75
Wire Size Search ( A W G)	18 \| 19 \| 20
Tab Length	14.3 mm [ .56 in ]
Insulation Option	Uninsulated
Operating Temperature ( Max)	120 °C [ 248 °F ]
Operating Temperature Range	-40 – 120 °C [ -40 – 248 °F ]
Conforms To Automation Guideline	Yes, DIN 72036 Automation of Wiring Harness Production, Version June 2024 \| Yes, KOMAX Guideline for automatic component insertion for electrical connections, Version 5.0 (March 2018)
Compatible With Wire Base Material	Copper
Compatible With Agency/ Standards Products	DIN 72036
Packaging Quantity	9000
Packaging Method	Reel
Terminal Transmits	0 – 24 A (Low Power)

采购与包装

最小订购量	9000
订购倍数	9000
工厂库存	0

合规信息

CNHTS	8538900000
TARIC	8536901000
CAHTS	8536900020
USHTS	8536904000
JPHTS	853690000
KRHTS	8536699000
MXHTS	8536902800
BRHTS	85366990
ECCN	EAR99
Country of Origin	Germany
Assembly Country of Origin	Not available
Country of Diffusion	Not available
RoHS状态	RoHS Compliant

参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
