产品资料

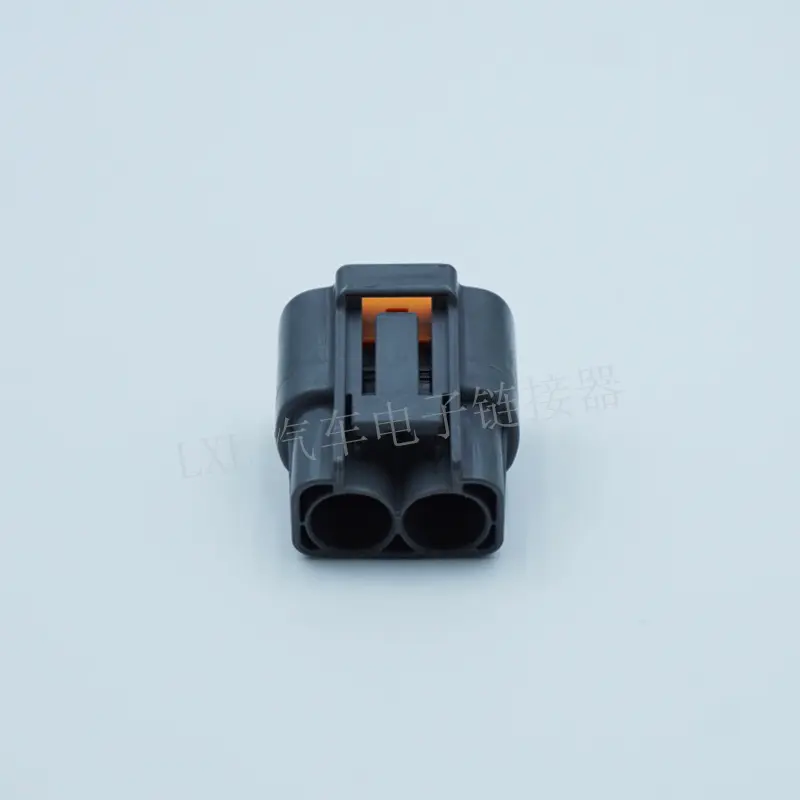

6195-0060
本页汇总官方技术资料、贸易合规、包装和国内供货信息。
产品类别
All / 连接器 / 胶壳
技术参数
| Sealed/ Unsealed | sealed |
|---|---|
| Male/ Female | F |
| Way | 2 |
| Mating Parts | 6195-0057(DL sealed series) |
| Materials | PBT |
| Color | Dark Gray |
| Contact Resistance | Initial3mΩ Max. after durability tests10mΩ Max. |
| Leak Current | 100μA Max. |
| Insulation Resistance | 100MΩ Min. |
| Seal | Initial49.0kPa Min. after durability tests29.4kPa Min. |
| Clamp | Bracket Clamp : TYPE2 |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
