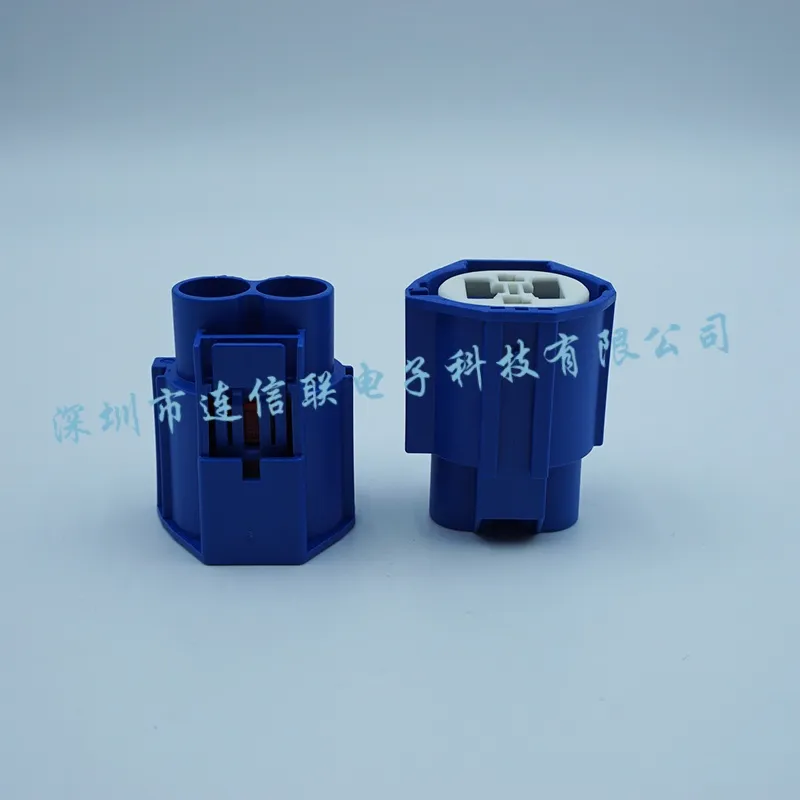

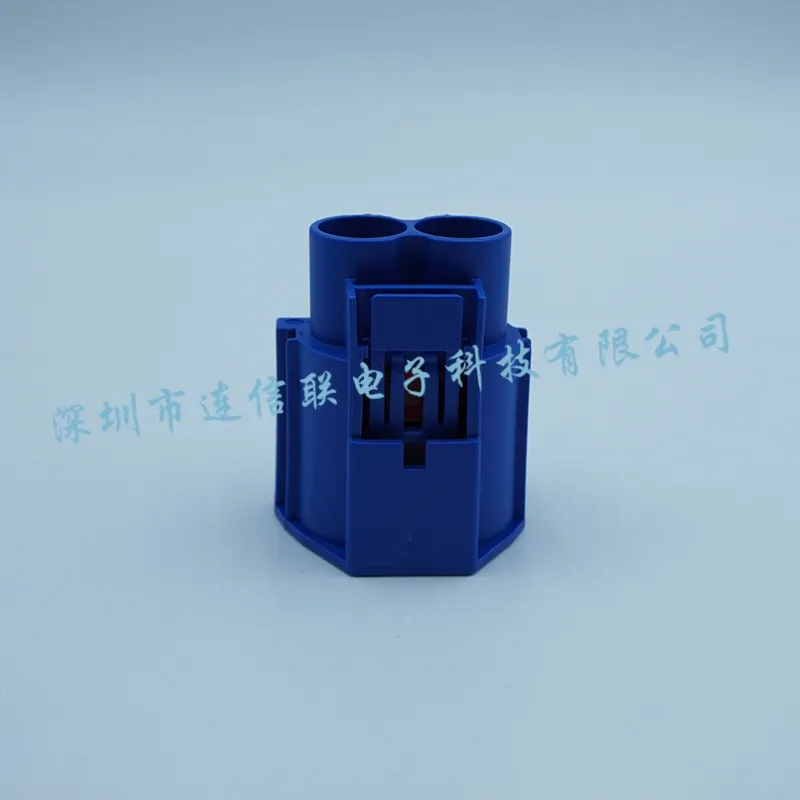

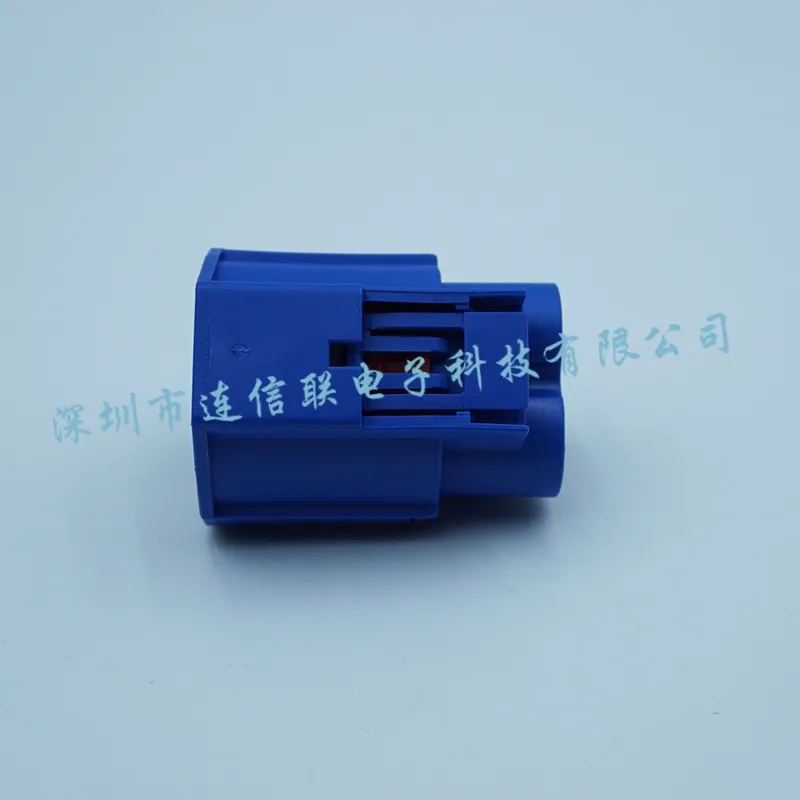

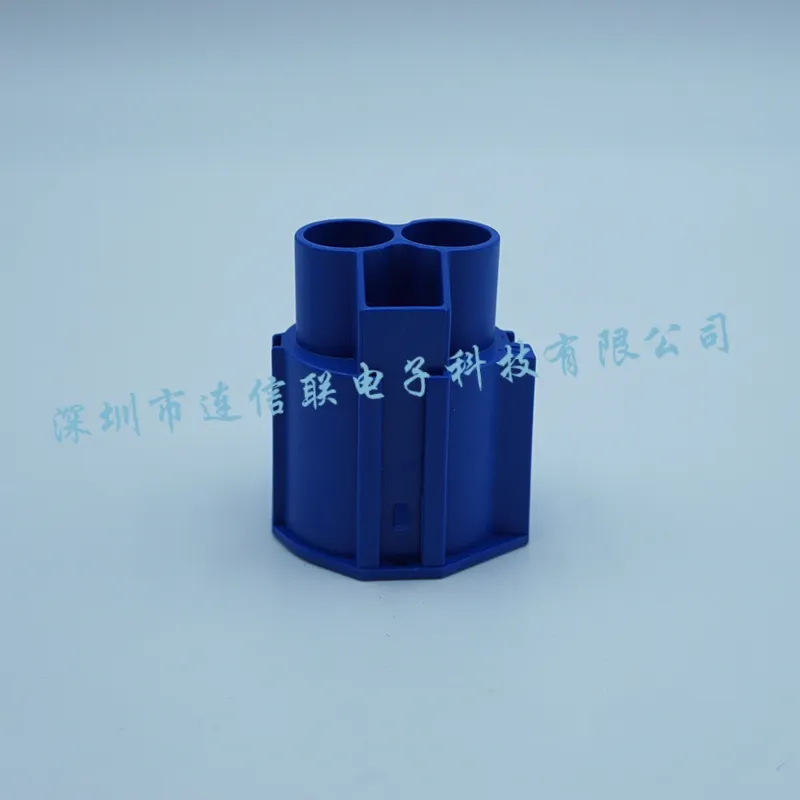

7283-8497-90
本页汇总官方技术资料、贸易合规、包装和国内供货信息。
产品类别
All / 连接器 / 胶壳
技术参数
| Classified Parts | Housing |
|---|---|
| Family | Y-type |
| Mating Part Numbers | 7282-8497-90 |
| Connection Type | Wire Harness Connector |
| Unsealed/ Seald | Sealed |
| Male/ Female | Female |
| Number Of Poles | 4 |
| Tab Size (Mm) | 1.509.50 |
| Materials | PBT-GF |
| Size (Mm)( Outer Shape Of Parts) | Length |
| Length | 48.55 |
| Width | 39.2 |
| Color | BLUE |
| Height | 36.35 |
| Hybrid | YES |
| Clip Installation Structure | YES |
| Compatible Holesize (Mm) | Min |
| Compatible Platethickness (Mm) | Min |
| Electric Current Classification | MEDIUMLARGE |
| Product Standard No. | YPES-11-04-087E |
| Handling Manual No. | YPES-15-604 |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
