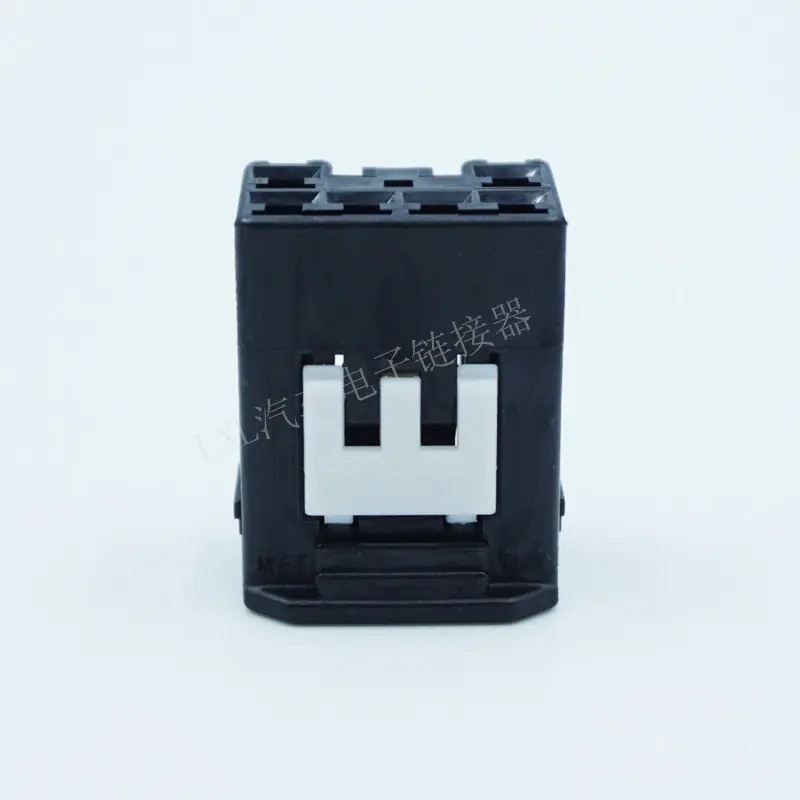

MG651044-5
本页汇总官方技术资料、贸易合规、包装和国内供货信息。
产品类别
Wire To Wire Connector
技术参数
| Part Number | MG651044-5 |
|---|---|
| Series | 090 II SERIES |
| Dimensions | 19.80*18.00*22.00 |
| Material Type | PBT |
| Sealed | NO |
| Color | Black |
| Number Of Poles | 6 |
| T P A | YES |
| Mating Connector | MG641047, MG642449 |
| Mating Terminal | ST730675, ST730676, ST730677 |
| Pitch(Mm) | 5 |
| Mating Tab Width(In) | .090 |
| Wire Range | 090:flaluy 0.75, avs(cavs) 0.3~0.5, civus 0.35, civus 0.5, avs(cavs) 0.85~1.25, flaluy 1.25, avss 2.0, aessxf 2.5 |
| Insulation Resistance | DC 500V 100MΩ MIN |
| Contact Resistance | 3mΩ MAX (Initial) |
| Terminal Transmits( A) | 10 |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
