产品资料

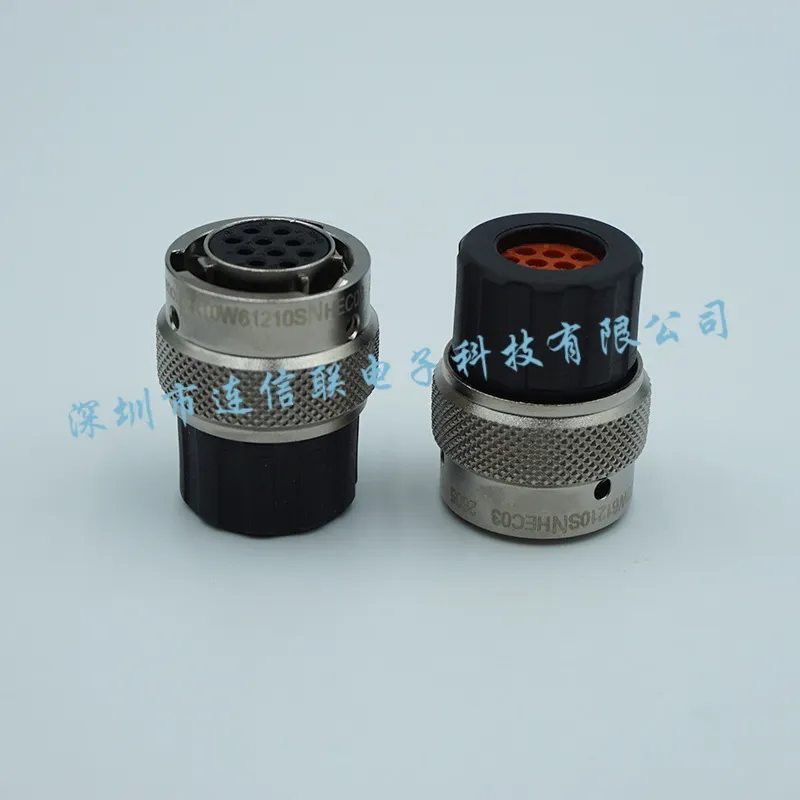

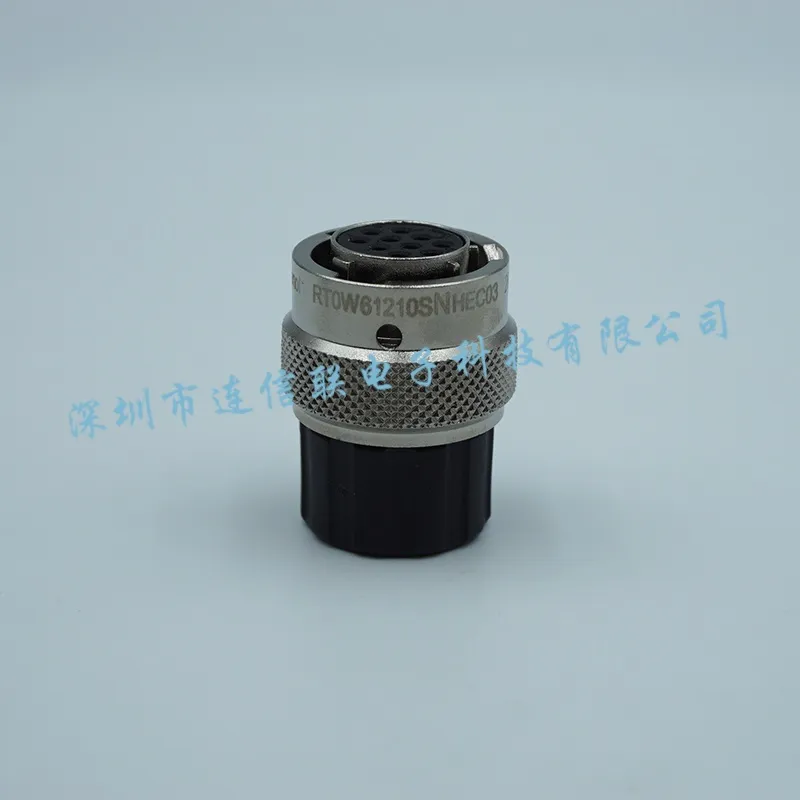

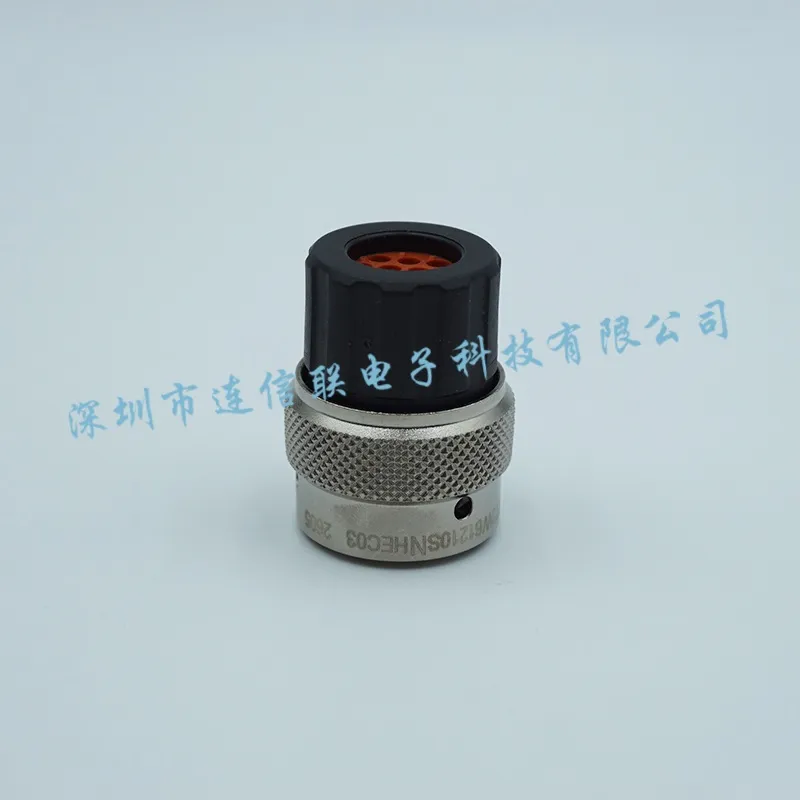

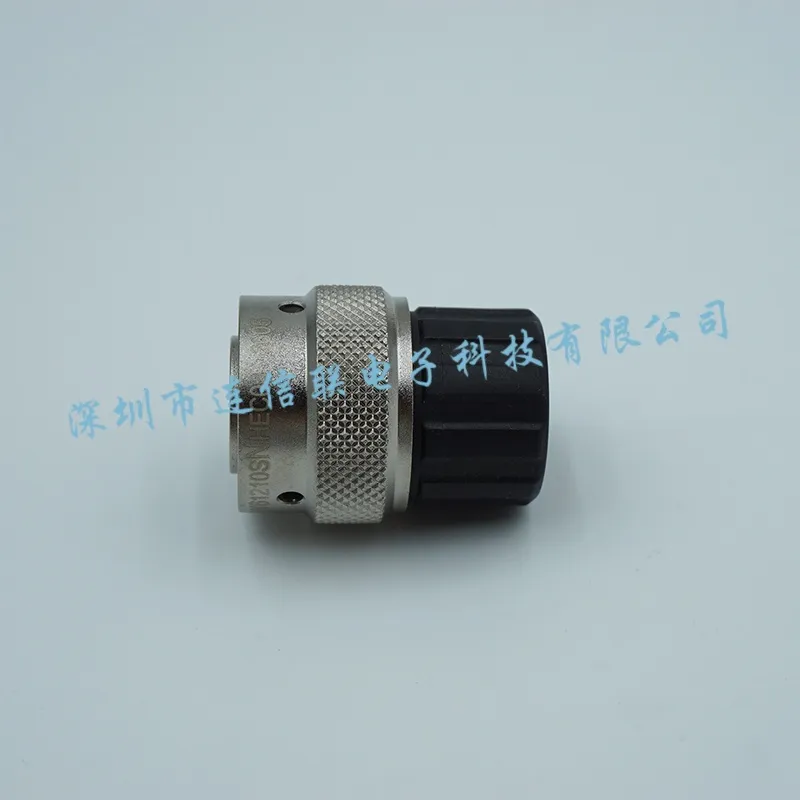

RT0W61210SNHEC03
RT0W61210SNHEC03 是 Amphenol Sine Systems Corp 的 Connectors, Interconnects产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Amphenol Sine Systems Corp
制造商
Amphenol Sine Systems Corp
产品类别
Connectors, Interconnects
技术参数
| Packaging | Bulk |
|---|---|
| Standard Pack Qty | 50 |
| Connector Type | Plug Housing |
| Type | For Female Sockets |
| Number of Positions | 10 |
| Grade | - |
| Qualification | - |
| Shell Size - Insert | 12-10 |
| Shell Size, MIL | - |
| Contact Type | Crimp |
| Contact Size | 20 |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Coupling Nut |
| Shielding | Shielded |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 150 |
合规信息
| RoHS状态 | ROHS3 Compliant |
|---|---|
| REACH状态 | REACH Unaffected |
| USHTS | 8536694030 |
| TARIC | 8536699099 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
