产品资料

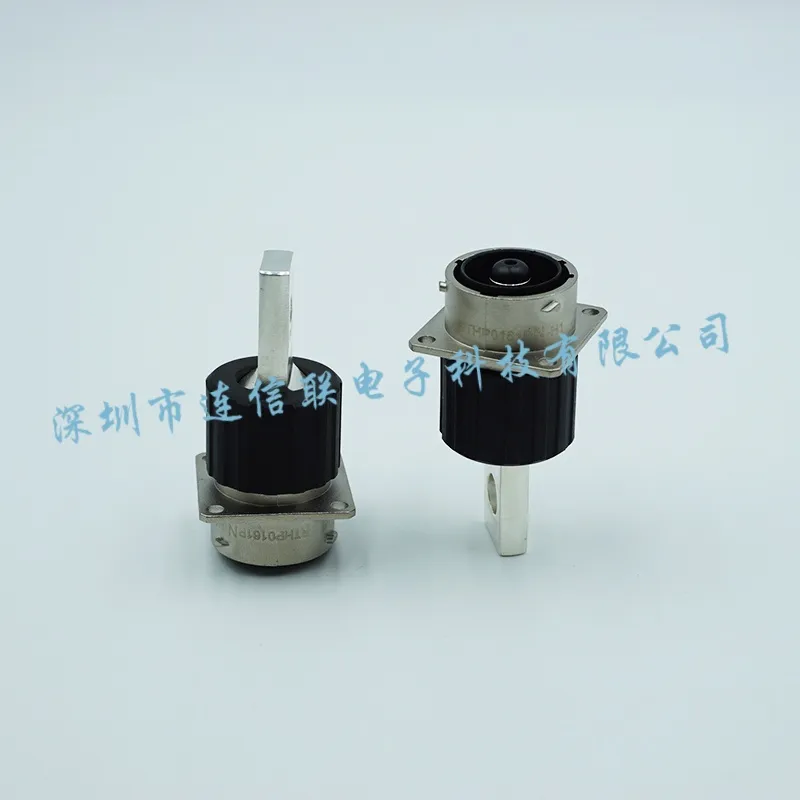

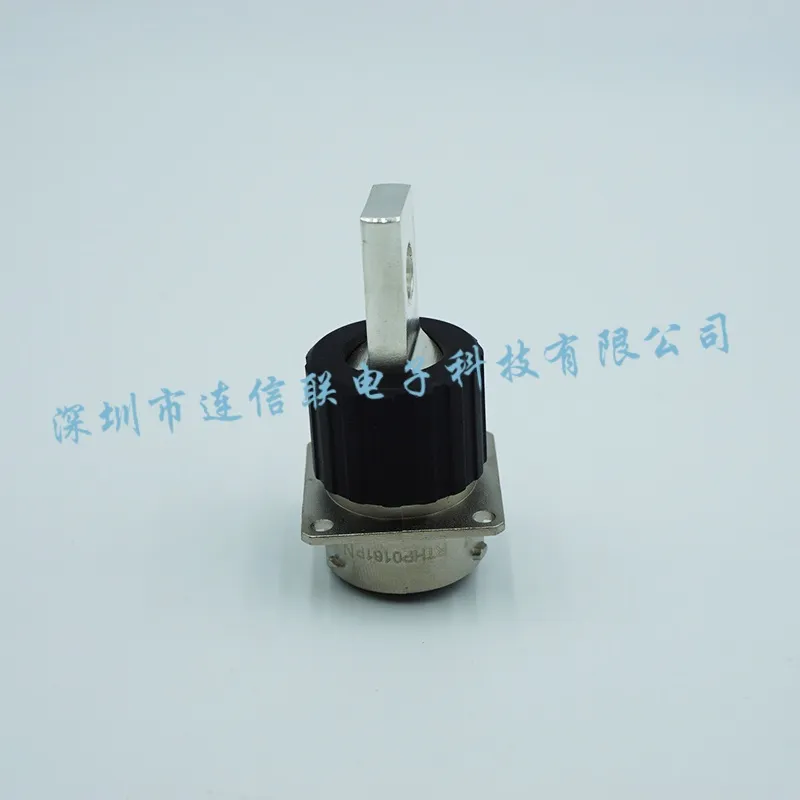

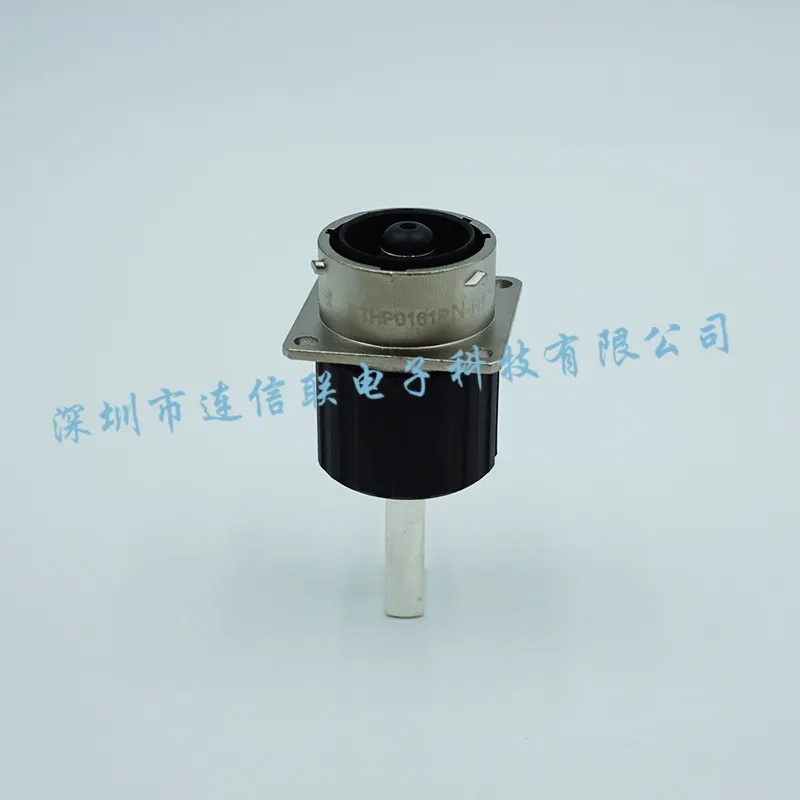

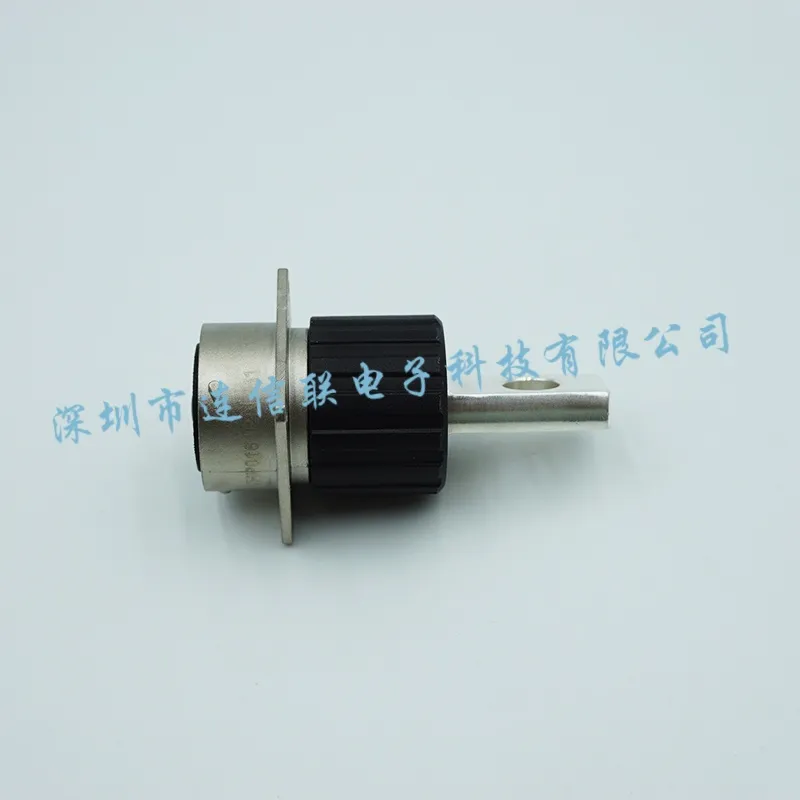

RTHP0161PN-H1
RTHP0161PN-H1 是 Amphenol Sine Systems Corp 的 Connectors, Interconnects产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Amphenol Sine Systems Corp
制造商
Amphenol Sine Systems Corp
产品类别
Connectors, Interconnects
技术参数
| Packaging | Bulk |
|---|---|
| Standard Pack Qty | 25 |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 1 |
| Shell Size - Insert | 16-1 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Eyelet(s) |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Contact Finish - Mating | Silver |
| Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Shielding | Shielded |
| Current Rating (Amps) | 180A |
| Voltage Rating | 630VAC |
| Operating Temperature | -40°C ~ 125°C |
| 单位重量（kg） | 0.076668889 |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| RoHS状态 | ROHS3 Compliant |
|---|---|
| REACH状态 | REACH Unaffected |
| 湿敏等级 | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS编码 | 8536.69.4020 |
| CNHTS | 8538900000 |
| CAHTS | 8536690040 |
| USHTS | 8536694030 |
| JPHTS | 853669000 |
| KRHTS | 8536699000 |
| TARIC | 8536699099 |
| MXHTS | 8536699999 |
| BRHTS | 85366990 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
