产品资料

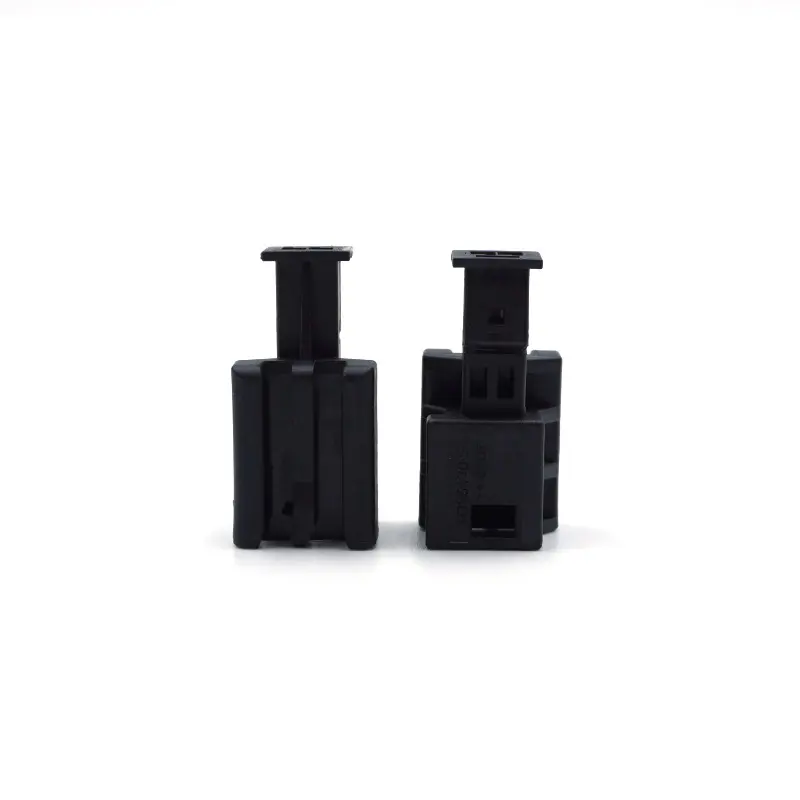

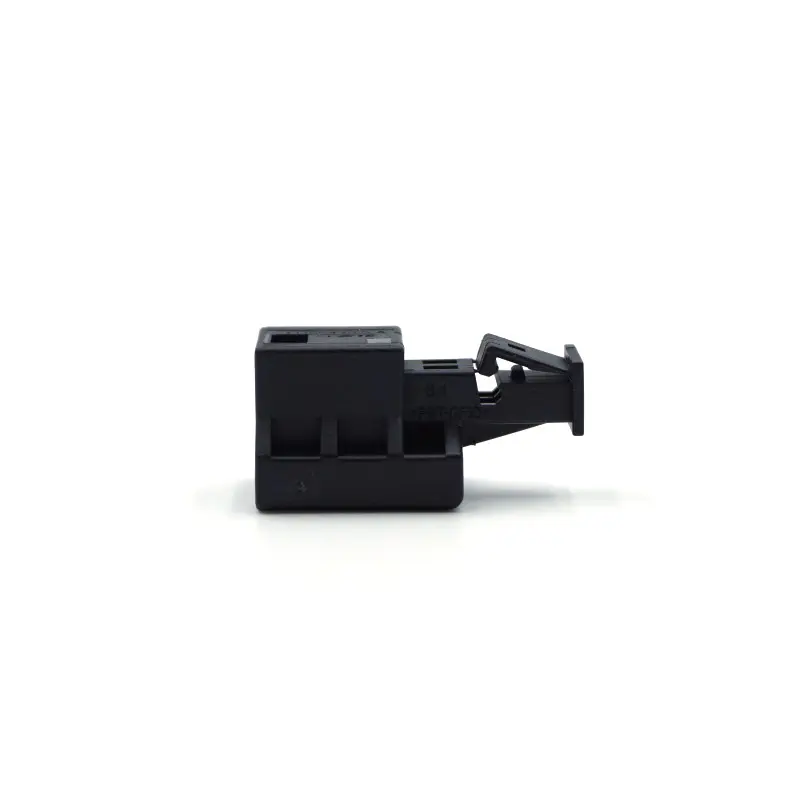

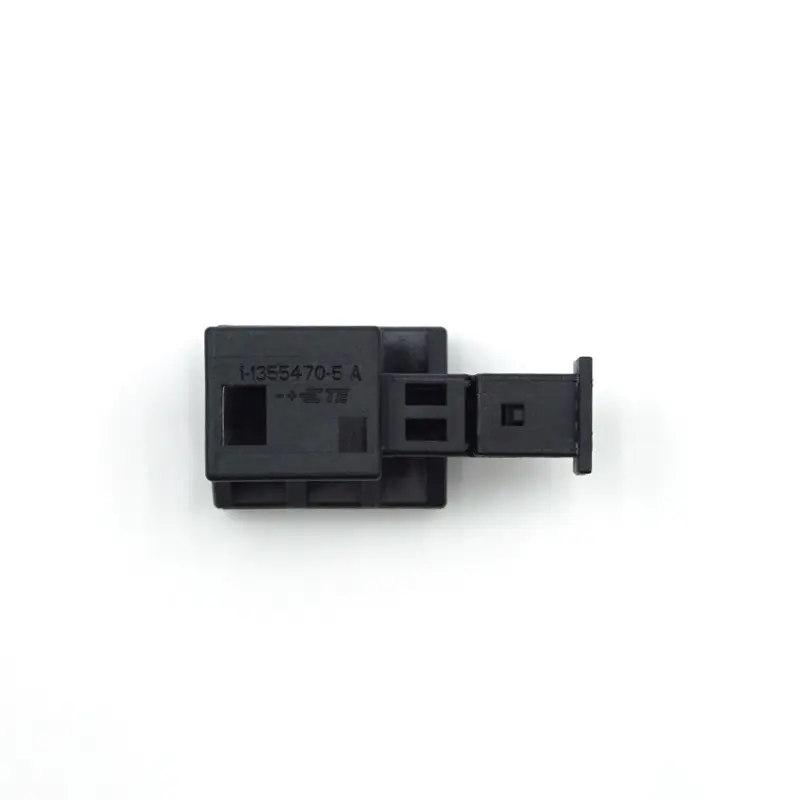

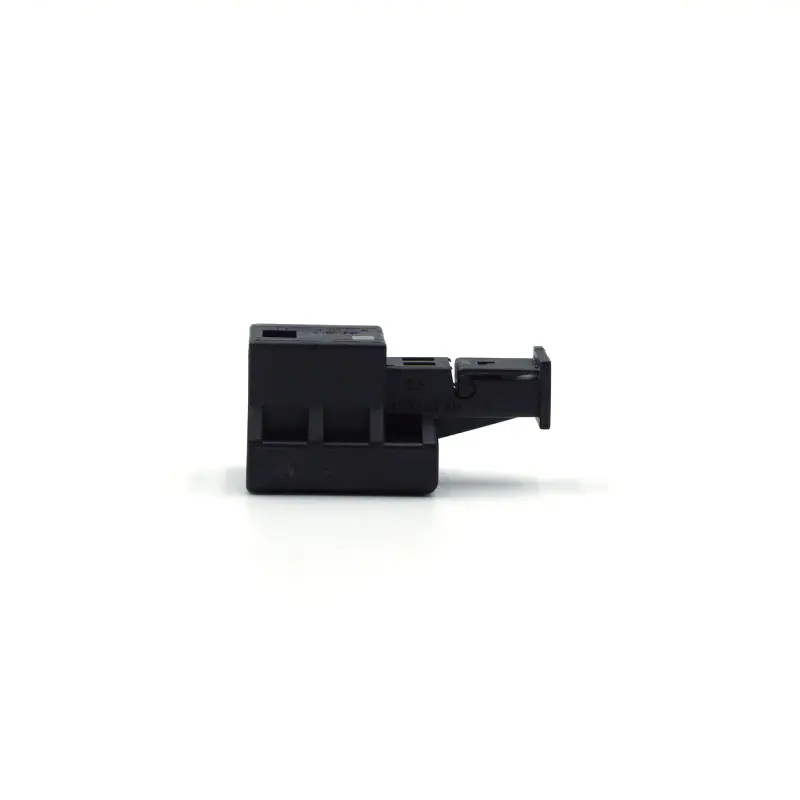

1-1355470-5
1-1355470-5 是 TE Connectivity / AMP 的 Automotive Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity / AMP
制造商
TE Connectivity / AMP
产品类别
Automotive Housings
技术参数
| Standard Pack Qty | 2000 |
|---|---|
| 单位重量（kg） | 0.0018 |
| Nominal Voltage Architecture ( V) | 25 |
| Connector & Housing Type | Housing for Male Terminals |
| Number Of Positions | 2 |
| Sealable | No |
| Operating Temperature Range | -40 – 120 °C [ -40 – 248 °F ] |
| Product Features & Characteristics | Select All |
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Primary Locking Feature | Clean Body |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Rows | 1 |
| Cable Exit Angle (°) | 180 |
| Primary Product Color | Black |
| Connector & Keying Code | A |
| Contact Type | Tab |
| Contact Size | .64mm |
| Mating Tab Width | .64 mm [ .025 in ] |
| Contact Current Rating ( Max) ( A) | 7.5 |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Terminal Position Assurance | No |
| Strain Relief | Without |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Housing Material | PBT GF10 |
| Centerline ( Pitch) | 2.54 mm [ .1 in ] |
| Connector Height | 9.8 mm [ .38 in ] |
| Product Length | 10.9 mm [ .42 in ] |
| Operating Temperature ( Max) | 120 °C [ 248 °F ] |
| Circuit Application | Signal |
| Packaging Quantity | 2000 |
| Packaging Method | Bag |
| Serviceable | Yes |
| Connector Position Assurance Capable | No |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| CNHTS | 8538900000 |
|---|---|
| TARIC | 8538909999 |
| CAHTS | 8538903900 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Germany |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
