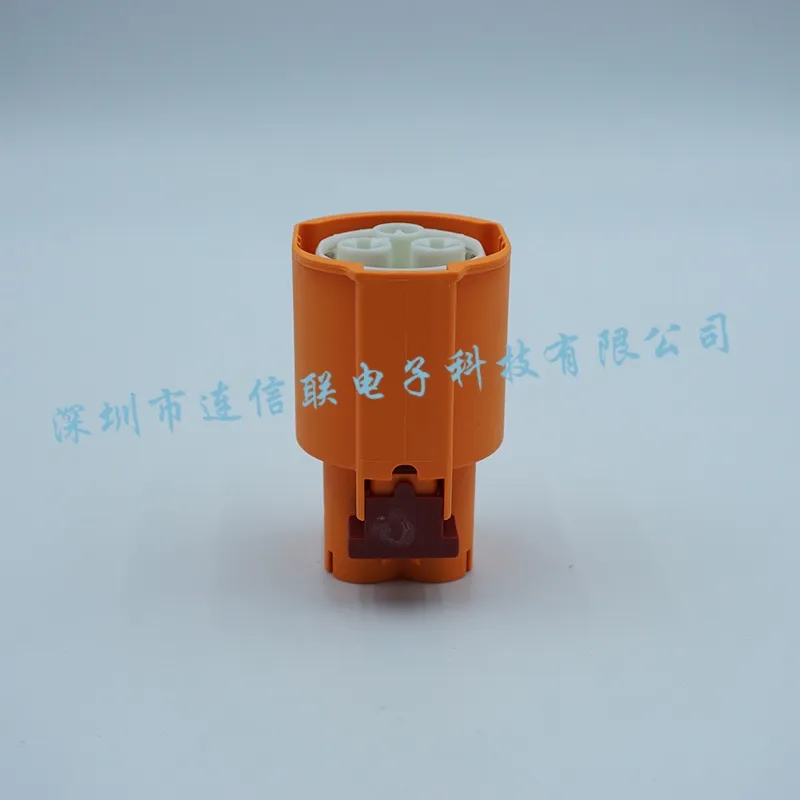

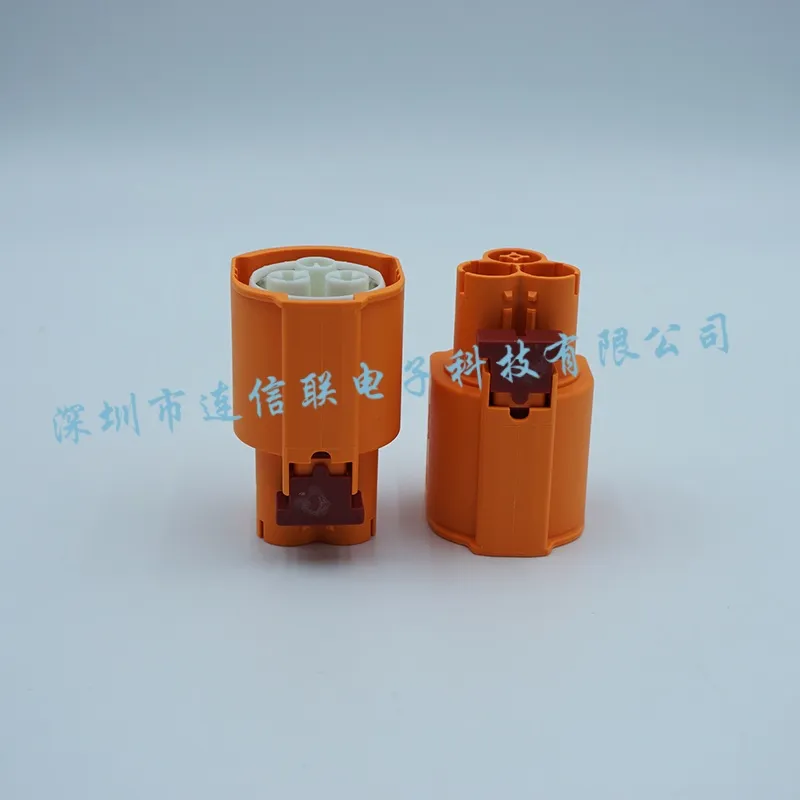

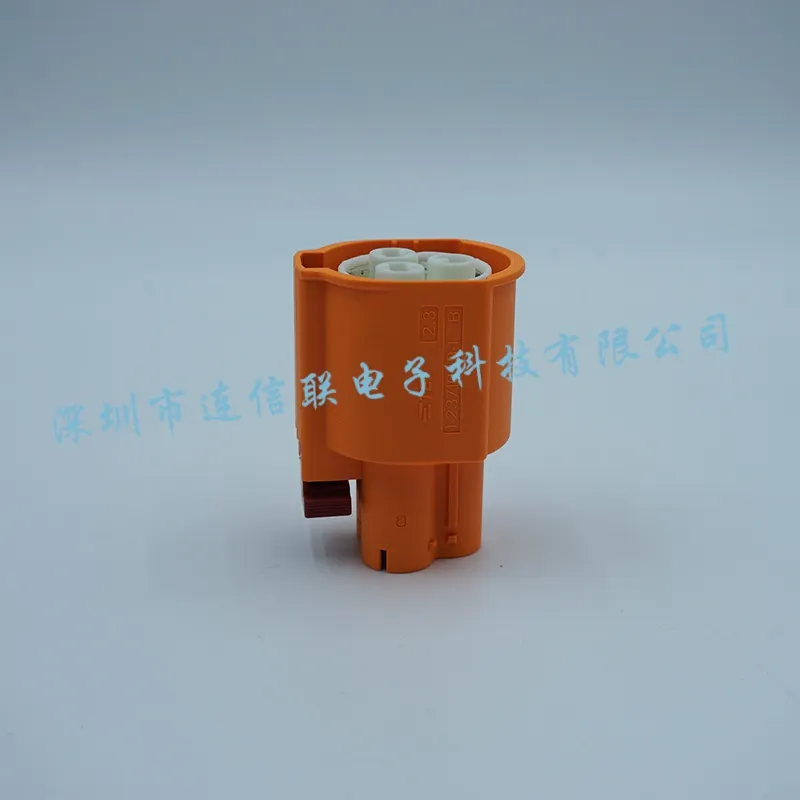

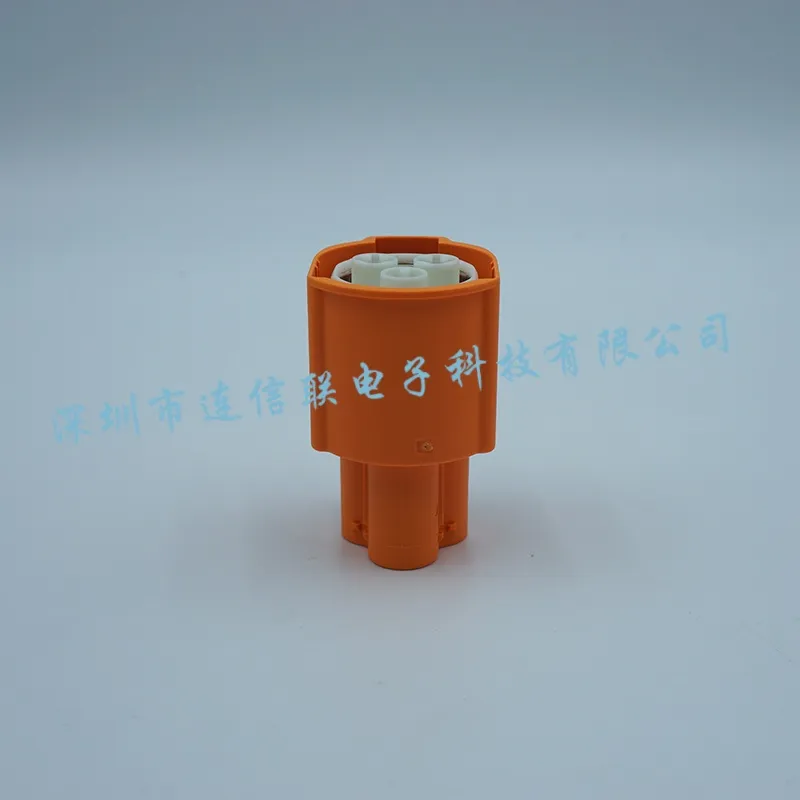

1-2371035-2
1-2371035-2 是 TE Connectivity 的 Automotive Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity
制造商
TE Connectivity
产品类别
Automotive Housings
技术参数
| Standard Pack Qty | 144 |
|---|---|
| Nominal Voltage Architecture ( V) | 12 |
| Connector & Housing Type | Housing for Female Terminals |
| Number Of Positions | 2 |
| Sealable | Yes |
| Operating Temperature Range | -40 – 140 °C [ -40 – 284 °F ] |
| Product Features & Characteristics | Select All |
| Connector Shape | Circular |
| Mixed & Hybrid Connector | Yes |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Cable-to-Panel |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Rows | 1 |
| Operating Voltage ( V D C) | 1000 |
| Operating Voltage ( V A C) | 1000 |
| Cable Exit Angle (°) | 180 |
| Primary Product Color | Orange |
| Connector & Keying Code | B |
| Contact Type | Receptacle | Socket |
| Contact Size | 1.2mm | 4mm |
| Mating Tab Width | 1.2 mm [ .047 in ] |
| Mating Pin Diameter | 4 mm [ .157 in ] |
| Contact Current Rating ( Max) ( A) | 70 |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Terminal Position Assurance | Yes |
| Strain Relief | With |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Housing Material | PA GF |
| Operating Temperature ( Max) | 140 °C [ 284 °F ] |
| Circuit Application | Power |
| I P Rating | IPX9K |
| Connector Position Assurance Capable | Yes |
采购与包装
| 最小订购量 | 770 |
|---|---|
| 订购倍数 | 154 |
| 工厂库存 | 0 |
合规信息
| REACH-SVHC | Octamethylcyclotetrasiloxane [D4] (556-67-2)、Dodecamethylcyclohexasiloxane [D6] (540-97-6)、Decamethylcyclopentasiloxane [D5] (541-02-6) |
|---|---|
| TARIC | 8547200000 |
| USHTS | 8538908180 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
