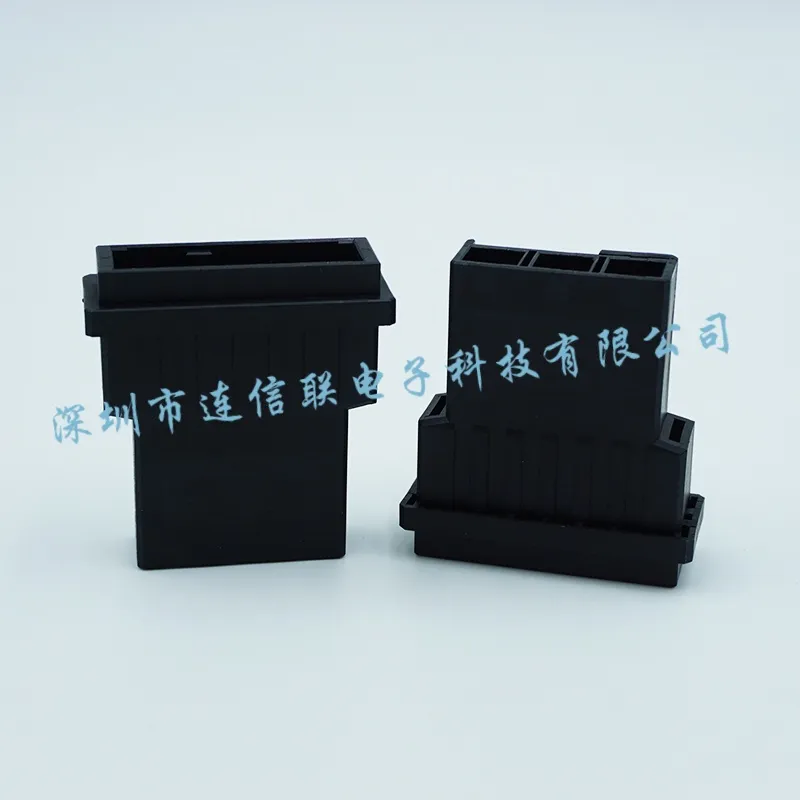

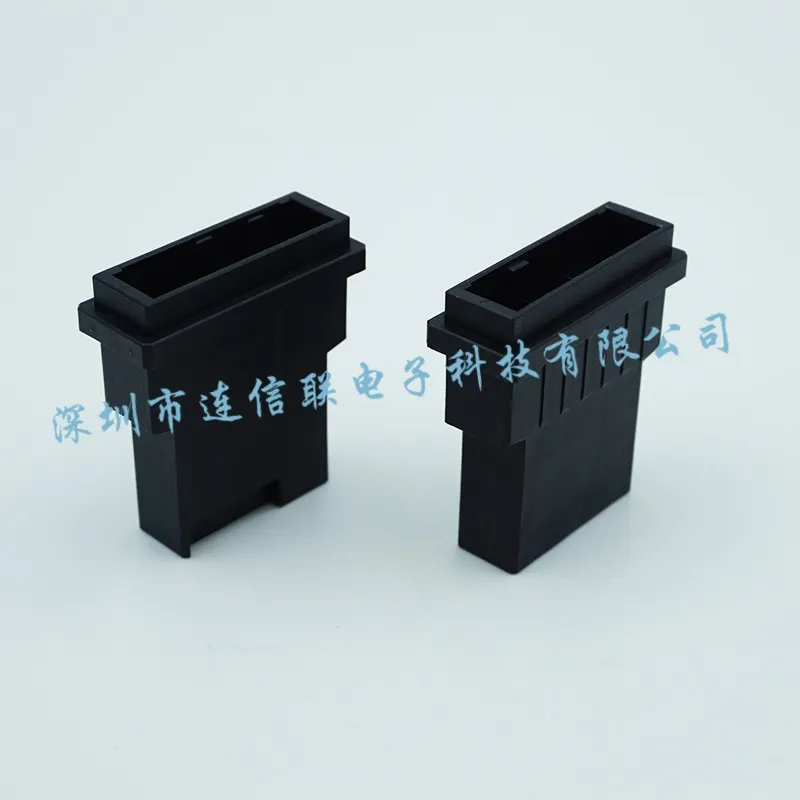

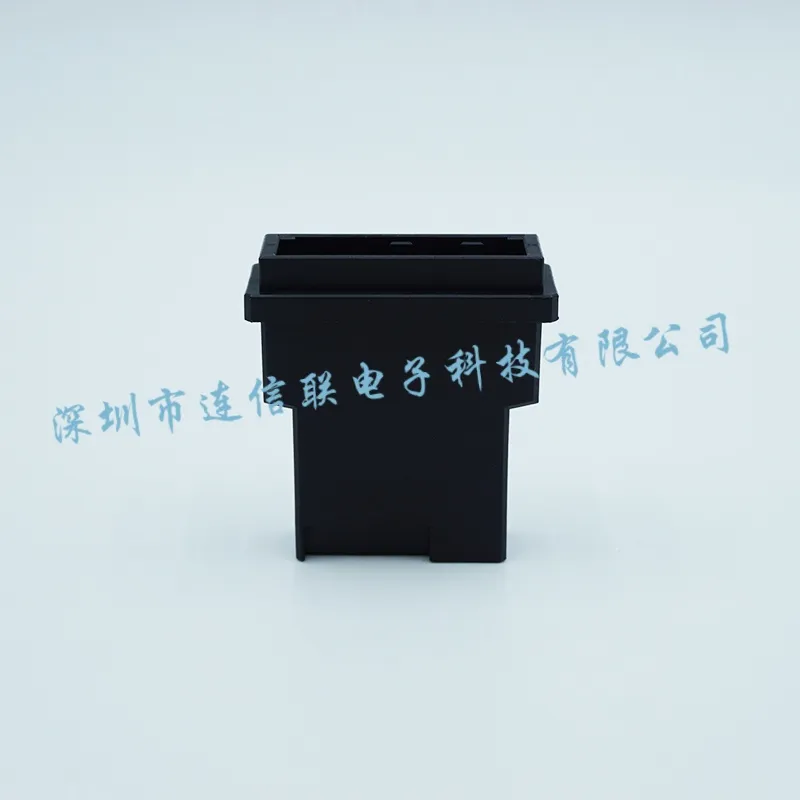

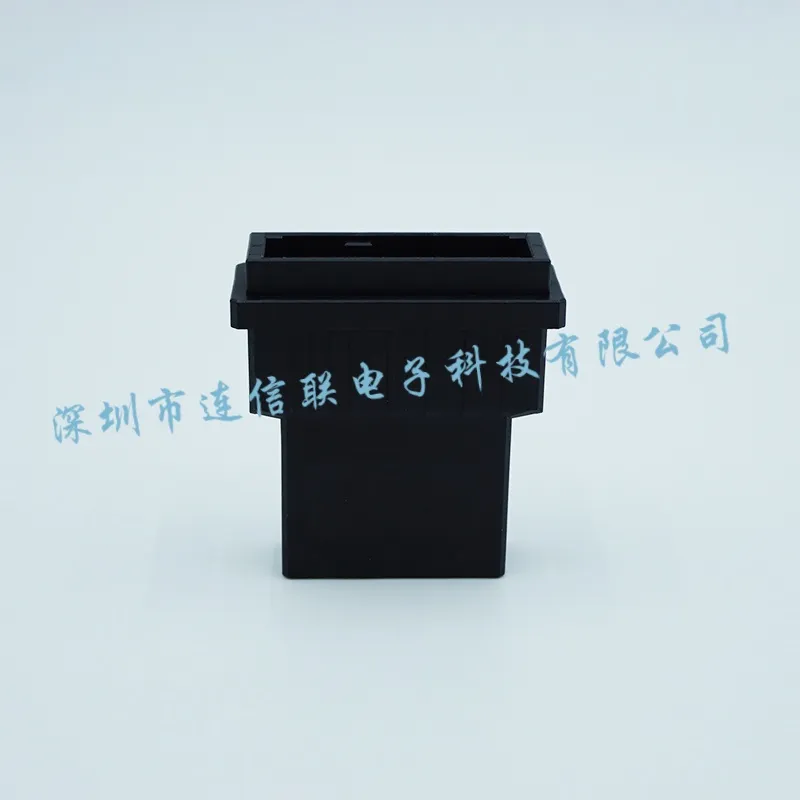

TE Connectivity 1-353046-3 连接器

¥ 0.00 ¥ 0.00
价格请询价
  • 品牌
加入购物车
添加到心愿单
销售与网站使用条款
价格、库存与交期以订单确认为准
联系我们
香港标准配送：17:00 截单，处理 3 个工作日 + 运输 3 个工作日，周一至周五，免运费。 查看配送政策

产品技术规格

1 8.128
100 4.948
1000 4.673
20 7.741
2000 4.582
500 4.811
A29648-ND Bulk
Assembly Country of Origin Not available
batch N
BRHTS 85389090
CAHTS 8538903900
Centerline (Pitch) 10.16 mm [ .399 in ]
Circuit Application Power
CNHTS 8547200000
Color Black
Connector & Contact Terminates To Wire & Cable
Connector & Housing Type Housing for Male Terminals
Connector Mounting Type Free-Hanging (In-Line)
Connector Product Type Housing
Connector System Wire-to-Wire
Connector Type Plug
Contact Type Male Pin
Country of Diffusion Not available
Country of Origin China
Customer Drawing https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=353046&DocType=Customer%20Drawing&DocLang=Japanese&DocFormat=pdf&PartCntxt=1-353046-3
DigiKey编号 A29648-ND
ECCN EAR99
ENG_AAD_CSA_164196_6233_1228257_A.pdf https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CSA_164196_6233_1228257&DocType=Agency%20Approval%20Document&DocLang=English&DocFormat=pdf&PartCntxt=1-353046-3
ENG_AAD_TUV_CERT_R09650368_C1_B.pdf https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=TUV_CERT_R09650368_C1&DocType=Agency%20Approval%20Document&DocLang=English&DocFormat=pdf&PartCntxt=1-353046-3
ENG_AAD_UL_CERT_E247738_19930105_C1_2.pdf https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=UL_CERT_E247738_19930105_C1&DocType=Agency%20Approval%20Document&DocLang=English&DocFormat=pdf&PartCntxt=1-353046-3
ENG_CVM_1-353046-3_D.2d_dxf.zip https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-353046-3&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=1-353046-3
ENG_CVM_1-353046-3_D.3d_igs.zip https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-353046-3&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=1-353046-3
ENG_CVM_1-353046-3_D.3d_stp.zip https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-353046-3&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=1-353046-3
ENG_CVM_1-353046-3_D.pdf https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-353046-3&DocType=Customer%20View%20Model&DocLang=English&DocFormat=pdf&PartCntxt=1-353046-3
ENG_DS_1-1773732-4_DYNAMIC_SERIES_CATALOG_2408.pdf https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773732-4_DYNAMIC_SERIES_CATALOG&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=1-353046-3
ENG_SS_108-5453_F1.pdf https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5453&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=1-353046-3
Fastening Type -
Features Polarizing Key
HTSUS编码 8538.90.6000
Insulation Material Thermoplastic, Polyester, Glass Filled
JPHTS 853890000
JPN_DS_1-1773732-4_DYNAMIC_SERIES_CATALOG_2408.pdf https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773732-4_DYNAMIC_SERIES_CATALOG&DocType=Data%20Sheet&DocLang=Japanese&DocFormat=pdf&PartCntxt=1-353046-3
JPN_SS_501-5428_O.pdf https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-5428&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=pdf&PartCntxt=1-353046-3
JPN_SS_501-5428_O.tif https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-5428&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=tif&PartCntxt=1-353046-3
Mating Retention With
Number of Rows 1
工作温度 -55°C ~ 105°C
工作温度 -55 – 105 °C [ -67 – 221 °F ]
Primary Product Color Black
Product Features & Characteristics Select All
REACH状态 REACH Unaffected
Row Spacing -
Sealable No
SINGLE ROW TAB HSG ( FREE HANGING ) < DYNAMIC D-5200 S > https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=353046&DocType=Customer%20Drawing&DocLang=Japanese&DocFormat=tif&PartCntxt=1-353046-3
Standard Pack Qty 100
TARIC 8547200090
Termination Method to Wire & Cable Crimp
TE内部描述 DYNAMIC D-5200S TAB HSG 3P K/X
TE内部编号 1-353046-3
USHTS 8538906000
中心线（间距） .399 in
主体颜色 黑色
交期 82 Days
产品名称 1-353046-3 (TE Connectivity)
产品描述 Housing, Housing for Male Terminals, Wire-to-Wire, 3 Position, .399 in [10.16 mm] Centerline, Crimp, 1 Row, Black, Dynamic 5000 Series
产品状态 Id：0；Status：Active
产地 中国/CHN
制造商交期（周） 12
单位重量（kg） 0.02
参考单价（USD） 3.81
可密封性 否
可用库存 371
品名 针座
品牌归属地 国际
基本分类 连接器
子品牌 AMP
官方产品图片1 https://www.te.com/content/dam/te-com/catalog/part/013/530/463/1-353046-3-t1.jpg/jcr:content/renditions/product-details.png
工作温度范围 -67 – 221 °F
排数 1
接合固定 带有
数据手册 https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=353046&DocType=Customer+Drawing&DocLang=JP
替代型号 92T8-00163（JiDC(济德)）
湿敏等级 1 (Unlimited)
电路应用 电源
线缆端接方法 压接
贸泽编号 571-1-353046-3
连接器产品类型 外壳
连接器和壳体类型 公端子护套
连接器和端子端接到 电线和电缆
连接器安装类型 电缆安装（自由悬挂）
连接器系统 线到线
针位数 3
零件编号 1-353046-3
安装风格 Free Hanging (In-Line)
包装 Bulk
间距 0.400" (10.16mm)
芯数 3
系列 Dynamic D-5200
端接方式 Crimp
品牌：TE Connectivity 产品类别：标准矩形连接器 产品系列：Dynamic 5000 Series

同品牌、系列或类别的相似产品（不代表兼容或可替代）

TE Connectivity 5-965906-1 连接器端子TE Connectivity 936207-1 连接器胶壳TE Connectivity 3-1534127-1 连接器胶壳TE Connectivity 2822357-1 连接器密封件TE Connectivity 2822354-1 连接器密封件TE Connectivity 963142-3 连接器密封件TE Connectivity 1564411-7 连接器配件TE Connectivity 1703278-2 连接器端子

已核验询价信息

Packaging
Bulk
最小订购量
1

制造商及授权来源记录

产品资料

1-353046-3

1-353046-3 是 TE Connectivity AMP Connectors 的 Standard Rectangular Connectors产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。

品牌

TE Connectivity AMP Connectors

制造商

TE Connectivity AMP Connectors

产品类别

Standard Rectangular Connectors

技术参数

主体颜色黑色
品牌归属地国际
排数1
系列Dynamic 5000 Series
针位数3
TE内部编号1-353046-3
中心线（间距）.399 in
分类线到板连接器组件和护套
可密封性否
子品牌AMP
工作温度范围-67 – 221 °F
接合固定带有
描述DYNAMIC D-5200S TAB HSG 3P K/X
电路应用电源
线缆端接方法压接
连接器产品类型外壳
连接器和壳体类型公端子护套
连接器和端子端接到电线和电缆
连接器安装类型电缆安装（自由悬挂）
连接器系统线到线
零件编号1-353046-3
PackagingBulk
Standard Pack Qty100
Connector TypePlug
Contact TypeMale Pin
Number of Positions3
Pitch0.400" (10.16mm)
Number of Rows1
Row Spacing-
Mounting TypeFree Hanging (In-Line)
Contact TerminationCrimp
Fastening Type-
ColorBlack
FeaturesPolarizing Key
Insulation MaterialThermoplastic, Polyester, Glass Filled
Operating Temperature-55°C ~ 105°C
单位重量（kg）0.02
Connector Product TypeHousing
Connector & Housing TypeHousing for Male Terminals
Mating RetentionWith

采购与包装

最小订购量1
订购倍数1
工厂库存0

合规信息

RoHS状态ROHS3 Compliant
REACH状态REACH Unaffected
湿敏等级1 (Unlimited)
ECCNEAR99
HTSUS编码8538.90.6000
CNHTS8547200000
CAHTS8538903900
USHTS8538906000
JPHTS853890000
TARIC8547200090
BRHTS85389090
Country of OriginChina
Assembly Country of OriginNot available
Country of DiffusionNot available

其他信息

产地中国/CHN批量参考批次：
品名针座

参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
