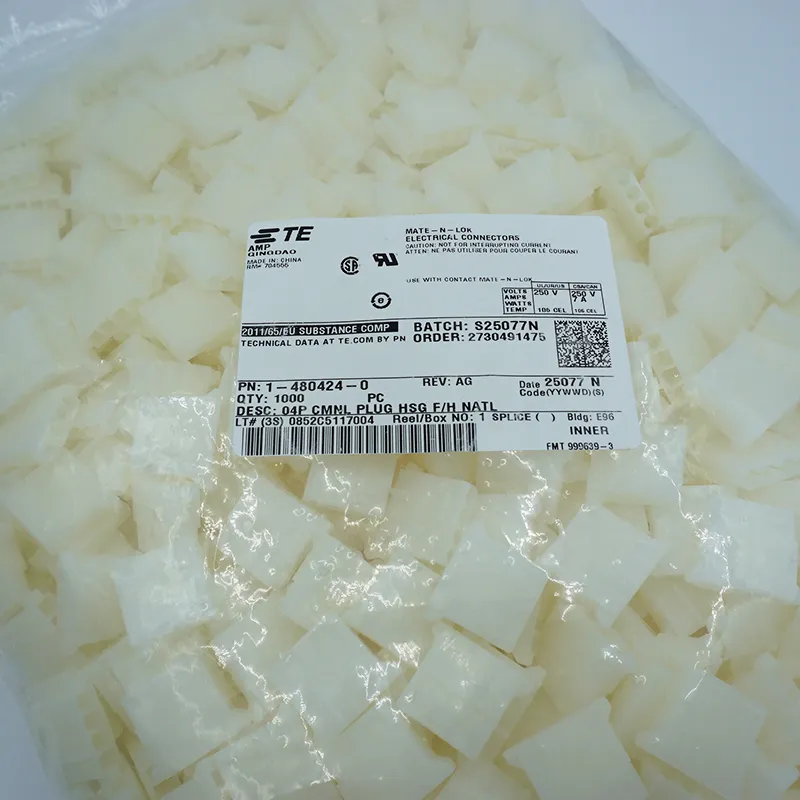

1-480424-0
1-480424-0 是 TE Connectivity / AMP 的 Standard Rectangular Connectors产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity / AMP
制造商
TE Connectivity / AMP
产品类别
Standard Rectangular Connectors
技术参数
| Standard Pack Qty | 1000 |
|---|---|
| 单位重量（kg） | 0.00234 |
| Connector Product Type | Housing |
| Connector & Housing Type | Plug |
| Termination Method To Wire & Cable | Crimp |
| Connector System | Wire-to-Wire |
| Contact Retention Within Housing | Without |
| Product Features & Characteristics | Select All |
| Sealable | No |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Positions | 4 |
| Number Of Rows | 1 |
| Operating Voltage ( V A C) | 250 |
| Primary Product Color | Natural |
| Contact Layout | Inline |
| Contact Type | Socket |
| Panel Mount Feature | Without |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Centerline ( Pitch) | 5.08 mm [ .2 in ] |
| Housing Material | Nylon |
| Operating Temperature Range | -55 – 105 °C [ -67 – 221 °F ] |
| Circuit Application | Power & Signal |
| Circuit Identification Feature | With |
| C S A Rating | LR 16455 |
| Compatible With Approved Standards Products | UL E28476 |
| U L Rating | Certified | Recognized |
| Compatible With Agency/ Standards Products | CSA | UL |
| U L Flammability Rating | UL 94V-2 |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Packaging Quantity | 4000 |
| Packaging Method | Package |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8538903900 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
