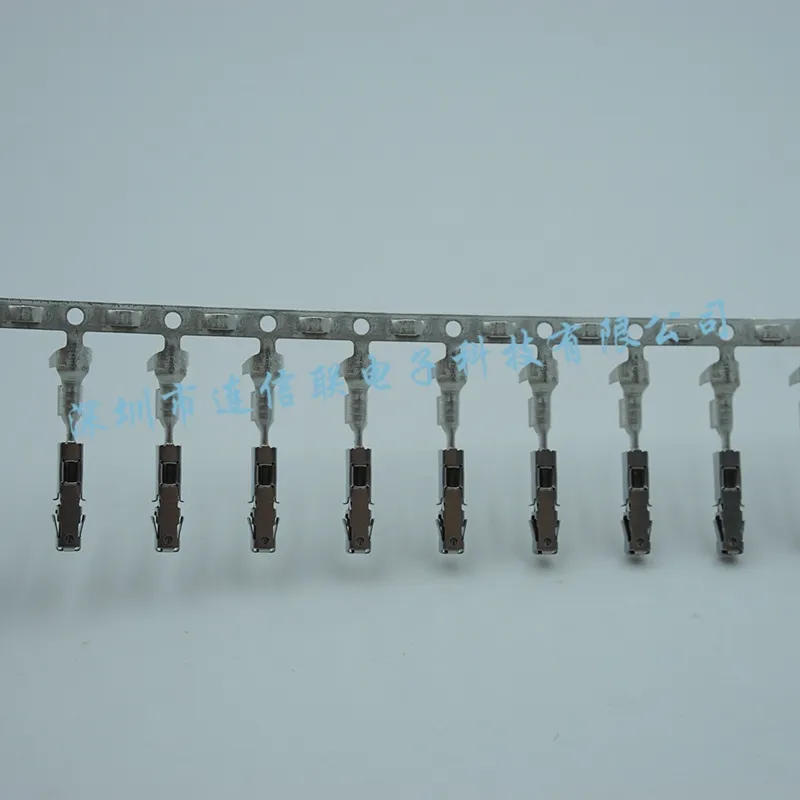

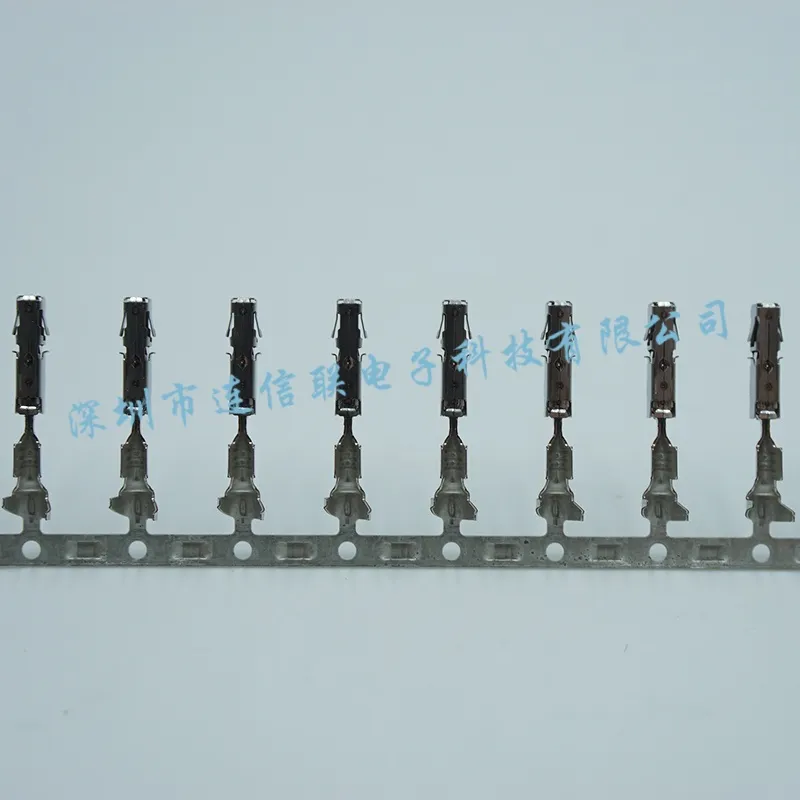

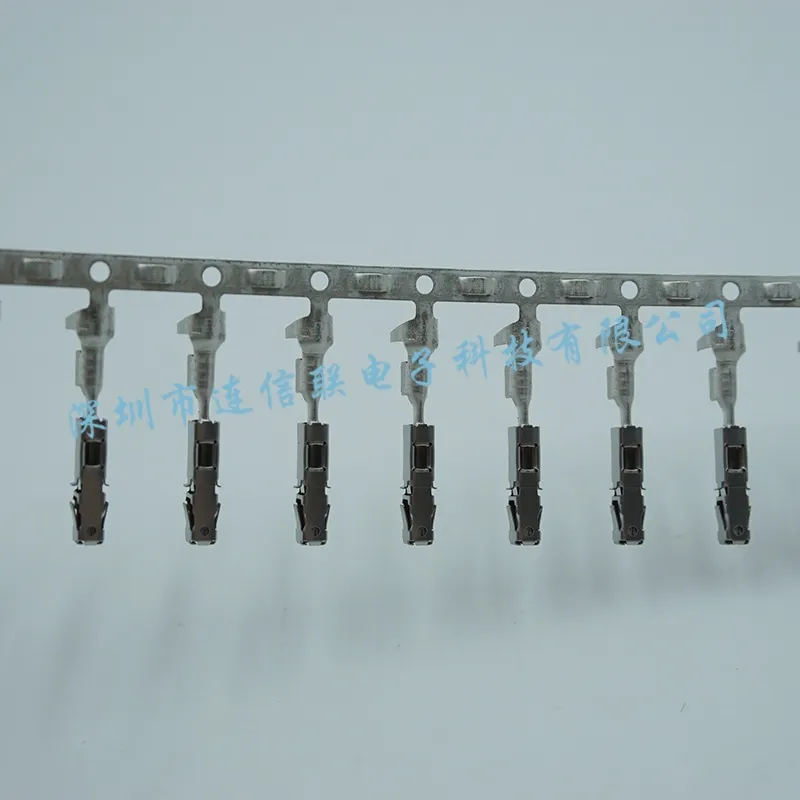

TE Connectivity 1241380-3 连接器端子

Name: 1241380-3 (TE Connectivity)
Brand: TE Connectivity
SKU: 1241380-3
Price: 0.37 CNY
Availability: InStock

供应 TE Connectivity 1241380-3 连接器端子，支持完整型号核对、配套选型、库存与交期咨询。连信联电子提供原装连接器及专业服务。

采购前请核对完整型号、规格及适用条件。如需库存、交期或配套产品信息，请联系连信联电子。

¥ 0.37

销售与网站使用条款
价格、库存与交期以订单确认为准

香港标准配送：17:00 截单，处理 3 个工作日 + 运输 3 个工作日，周一至周五，免运费。查看配送政策

产品资料

1241380-3

1241380-3 是 TE Connectivity / AMP 的 Automotive Terminals产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。

品牌

TE Connectivity / AMP

制造商

TE Connectivity / AMP

产品类别

Automotive Terminals

Packaging	Reel
Standard Pack Qty	4500
单位重量（kg）	0.00034300000001
Terminal Type	Receptacle
Wire Size (Mm²)	.5 – 1
Mating Tab Width	1.6 mm [ .063 in ]
Interface Plating	Silver (Ag)
Primary Locking Feature	Locking Lance
Product Features & Characteristics	Select All
Receptacle Style	180°
Sealable	Yes
Compatible With Wire & Cable Type	Discrete Wire
Terminal Seal Type	Single Wire Seal (SWS)
Wire Contact Termination Area Plating Material	Tin
Contact Fabrication	Stamped & Formed
Contact Size	1.5K
Crimp Type	F-Crimp
Typical Current Rating ( A)	12
Mating Tab Thickness	.6 mm [ .024 in ]
Termination Method To Wire & Cable	Crimp
Product Terminates To	Wire
Compatible Insulation Diameter Range	1.4 – 2.1 mm [ .055 – .083 in ]
Wire Size Search (Mm²)	.5 \| .75 \| 1
Insulation Option	Uninsulated
Operating Temperature ( Max)	140 °C [ 284 °F ]
Operating Temperature Range	-40 – 140 °C [ -40 – 284 °F ]
Conforms To Automation Guideline	Yes, DIN 72036 Automation of Wiring Harness Production, Version June 2024 \| Yes, KOMAX Guideline for automatic component insertion for electrical connections, Version 5.0 (March 2018)
Compatible With Wire Base Material	Copper
Compatible With Agency/ Standards Products	LV214
Packaging Quantity	4500
Packaging Method	Reel
Terminal Transmits	0 – 24 A (Low Power)

最小订购量	4500
订购倍数	4500
工厂库存	0
替代包装型号	1241380-3-MR (MOUSER REEL)、1241380-3-CT (CUT STRIP)、1241380-3-LP (LOOSE PIECE)

参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
