产品资料

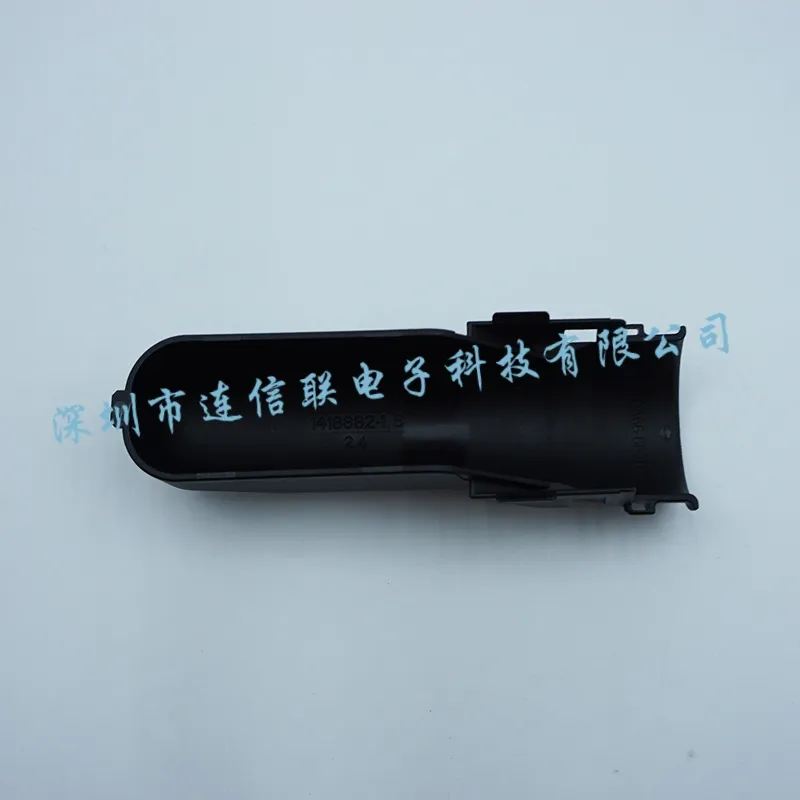

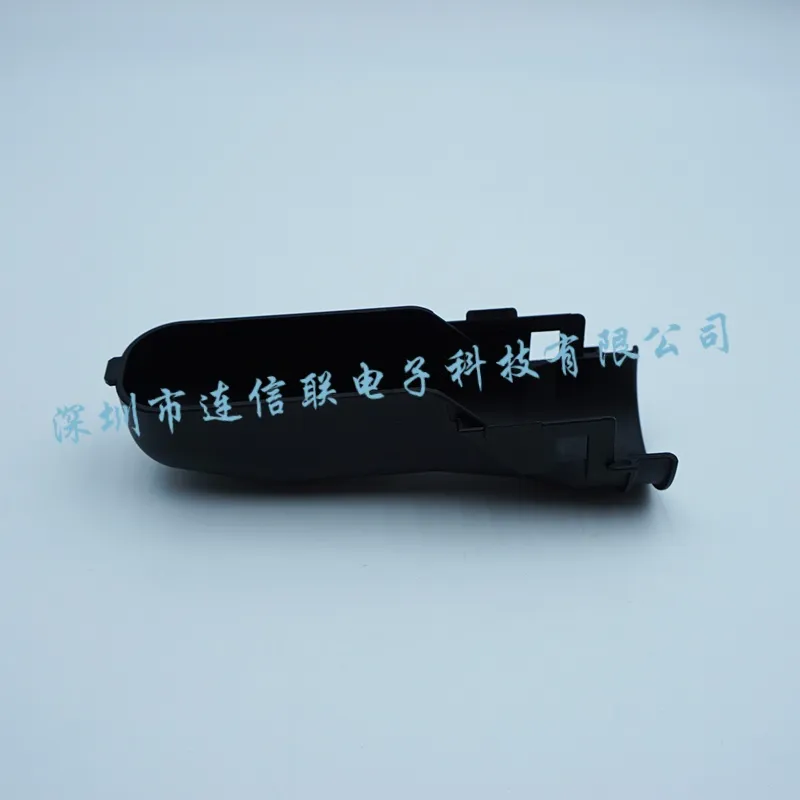

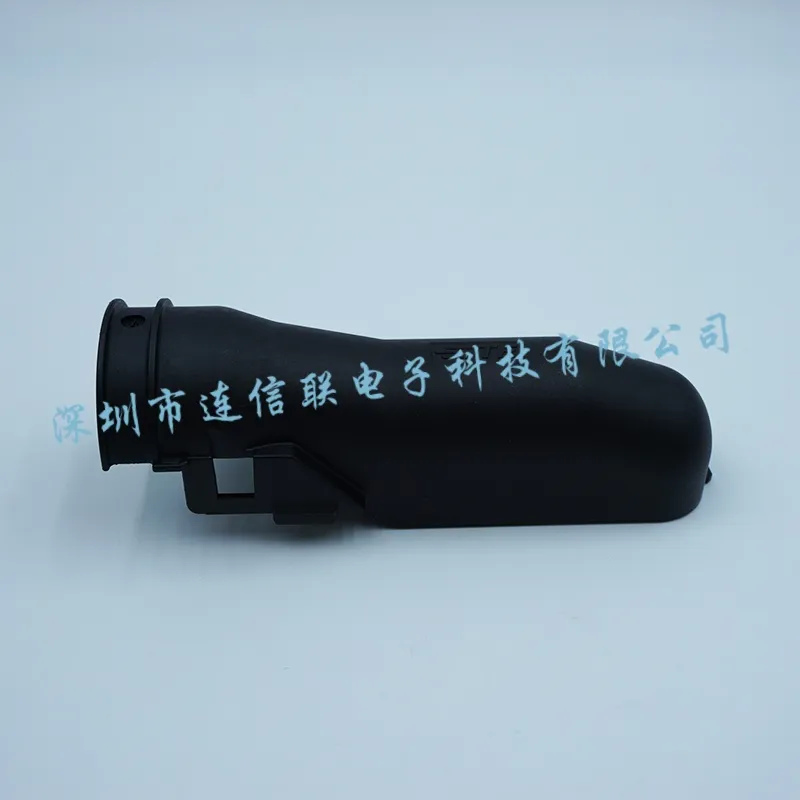

1418882-1
1418882-1 是 TE Connectivity / Raychem 的 Automotive Connector Caps & Covers产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity / Raychem
制造商
TE Connectivity / Raychem
产品类别
Automotive Connector Caps & Covers
技术参数
| Packaging | Bulk |
|---|---|
| Standard Pack Qty | 300 |
| 单位重量（kg） | 0.014288 |
| Number Of Positions | 62 |
| Primary Product Color | Black |
| Protection & Strain Relief Accessory Type | Cover - Cable Exit |
| Primary Product Material | PA GF |
| Cable Exit Angle (°) | 90 |
| Product Features & Characteristics | Select All |
| Strain Relief | With |
| Compatible Cable Bundle Diameter Range | 31.2 mm [ 1.228 in ] |
| Compatible With Connector Style | Housing For Female Terminals | Housing For Male Terminals |
| Operating Temperature ( Max) (° C) | 65 | 70 | 75 | 80 | 85 | 90 | 100 | 105 | 110 | 120 |
| Operating Temperature ( Max) (° F) | 248 |
| Operating Temperature Range | -40 – 120 °C [ -40 – 248 °F ] |
| U L Flammability Rating | UL 94HB |
| Packaging Quantity | 300 |
| Packaging Method | Box |
| Serviceable | Yes |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| CNHTS | 8538900000 |
|---|---|
| TARIC | 8538909999 |
| CAHTS | 8538903900 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Morocco |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
