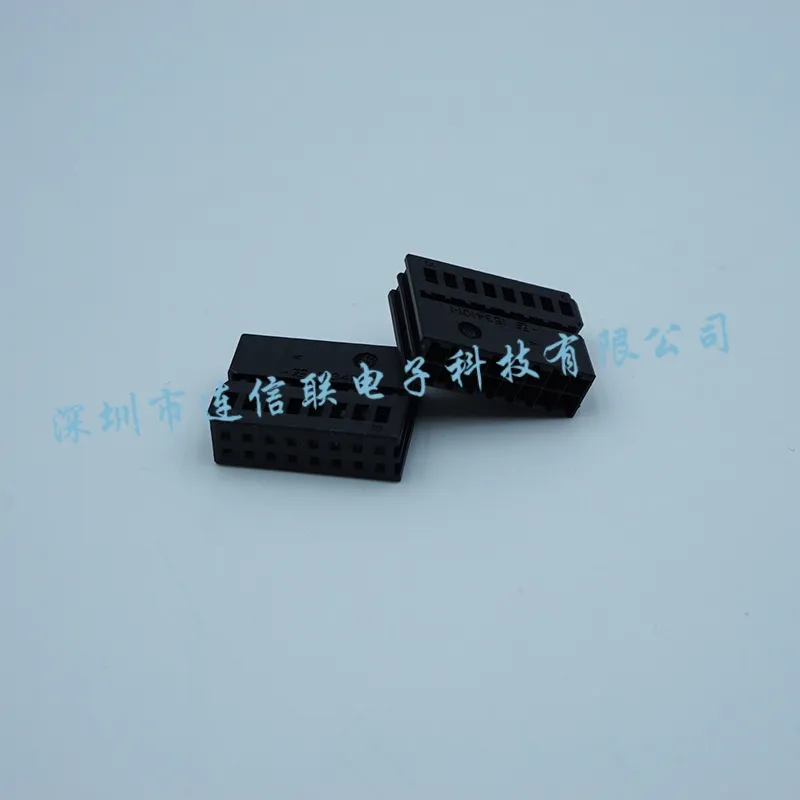

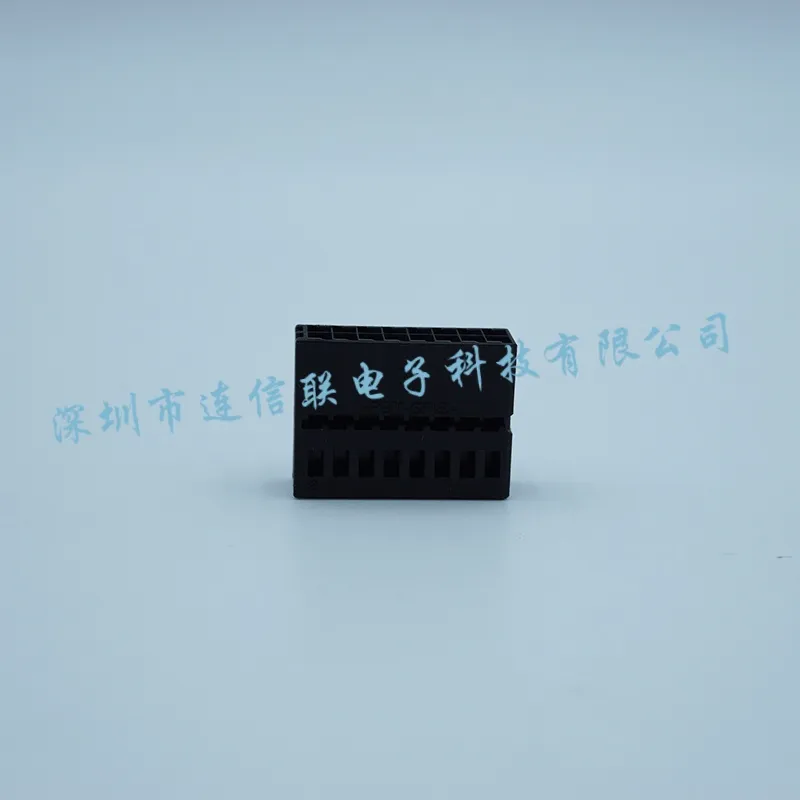

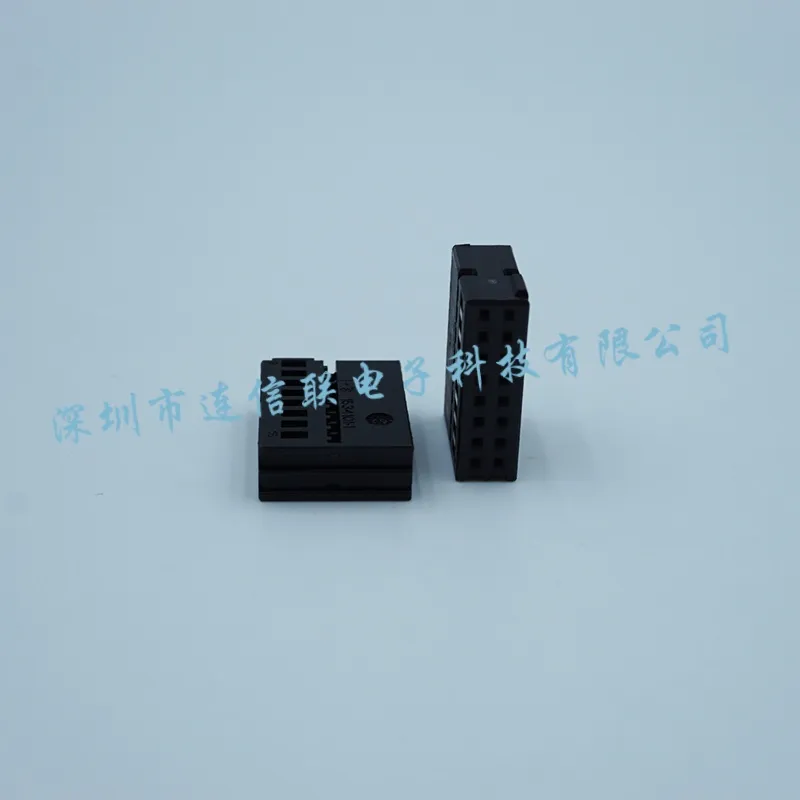

TE Connectivity 1534101-1 连接器胶壳

描述: Housing for Female Terminals, Wire-to-Board, 16 Position, .098 in [2.5 mm] Centerline, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging), MQS
参数: 行距: 4.24mm 排数: 2 针位数: 16

¥ 1.33

包装
- 个
- 袋
- 箱

加入购物车

添加到心愿单

销售与网站使用条款
价格、库存与交期以订单确认为准

香港标准配送：17:00 截单，处理 3 个工作日 + 运输 3 个工作日，周一至周五，免运费。查看配送政策

品牌：TE Connectivity 产品类别：汽车连接器护套

1534101-1

1534101-1 是 TE Connectivity / AMP 的 Automotive Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。

品牌

TE Connectivity / AMP

制造商

TE Connectivity / AMP

产品类别

Automotive Housings

技术参数

Packaging	Bulk
Standard Pack Qty	5000
单位重量（kg）	0.001504
Nominal Voltage Architecture ( V)	12 \| 24
Connector & Housing Type	Housing for Female Terminals
Number Of Positions	16
Sealable	No
Operating Temperature Range	-40 – 120 °C [ -40 – 248 °F ]
Product Features & Characteristics	Select All
Connector Shape	Rectangular
Mixed & Hybrid Connector	No
Primary Locking Feature	Locking Lance
Connector System	Wire-to-Board
Connector & Contact Terminates To	Wire & Cable
Number Of Rows	2
Operating Voltage ( V D C)	12
Cable Exit Angle (°)	180
Primary Product Color	Black
Contact Type	Receptacle
Contact Size	.64mm
Mating Tab Width	.64 mm [ .025 in ]
Contact Current Rating ( Max) ( A)	7.5
Mating Alignment	With
Mating Alignment Type	Polarization
Terminal Position Assurance	Yes
Strain Relief	Without
Connector Mounting Type	Free-Hanging (In-Line)
Housing Material	Thermoplastic PBT GF
Centerline ( Pitch)	2.5 mm [ .09 in ]
Connector Height	6.8 mm [ .268 in ]
Product Width	16.2 mm [ .638 in ]
Row-To- Row Spacing	2.54 mm [ .1 in ]
Operating Temperature ( Max)	120 °C [ 248 °F ]
Conforms To Automation Guideline	Yes, KOMAX Guideline for automatic component insertion for electrical connections, Version 5.0 (March 2018)
Circuit Application	Signal
U L Flammability Rating	UL 94HB
Packaging Method	Box
Packaging Quantity	5000
Serviceable	Yes
Connector Position Assurance Capable	No

采购与包装

最小订购量	1
订购倍数	1
工厂库存	0

合规信息

CNHTS	8547200000
TARIC	8547200090
CAHTS	8538903900
USHTS	8538906000
JPHTS	853890000
MXHTS	8538900100
BRHTS	85389090
ECCN	EAR99
Country of Origin	Germany
Assembly Country of Origin	Not available
Country of Diffusion	Not available
RoHS状态	RoHS Compliant

参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
