产品资料

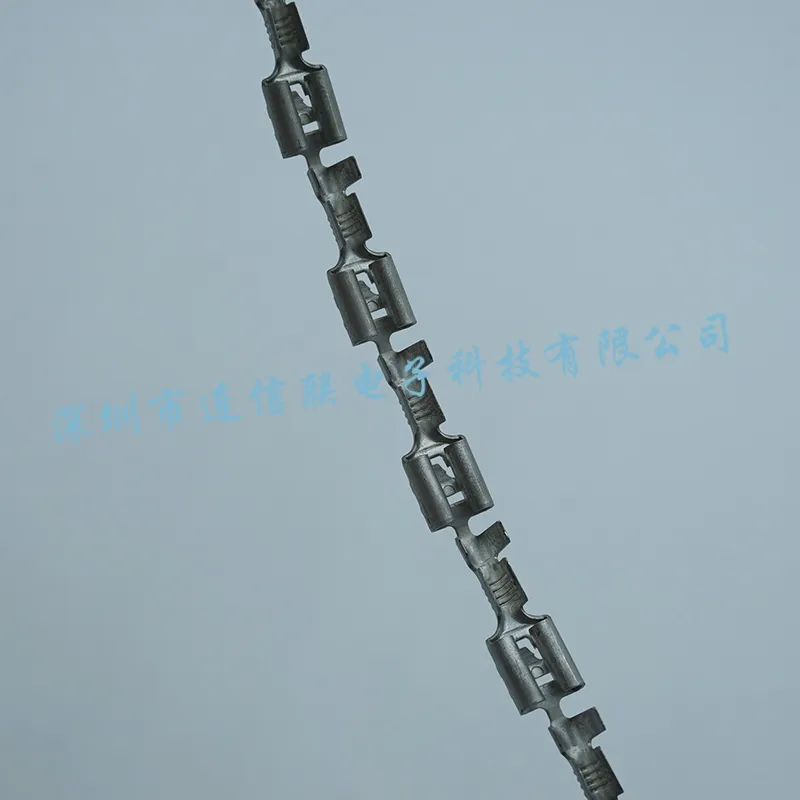

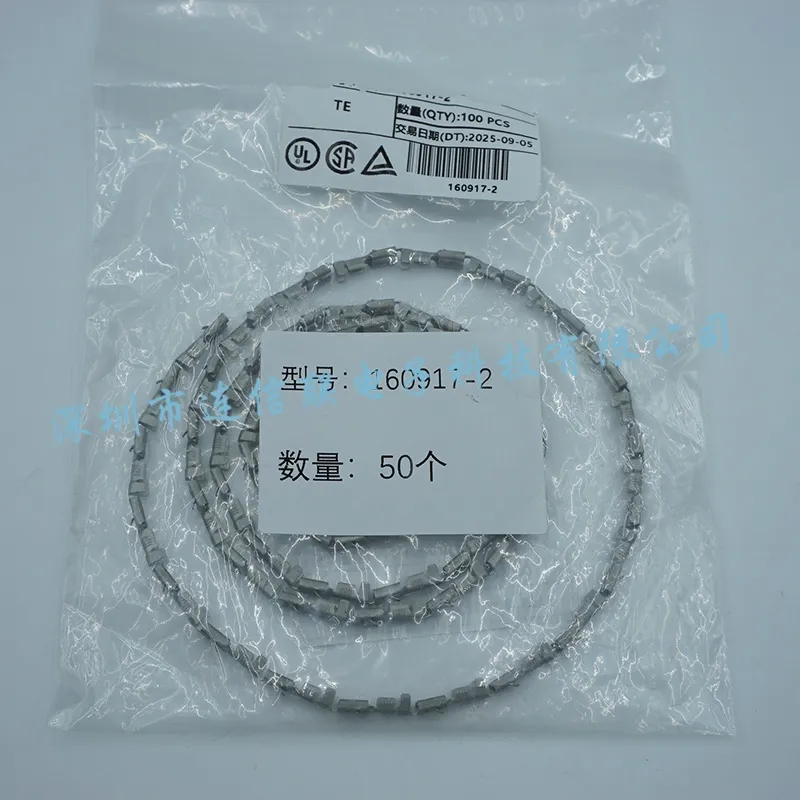

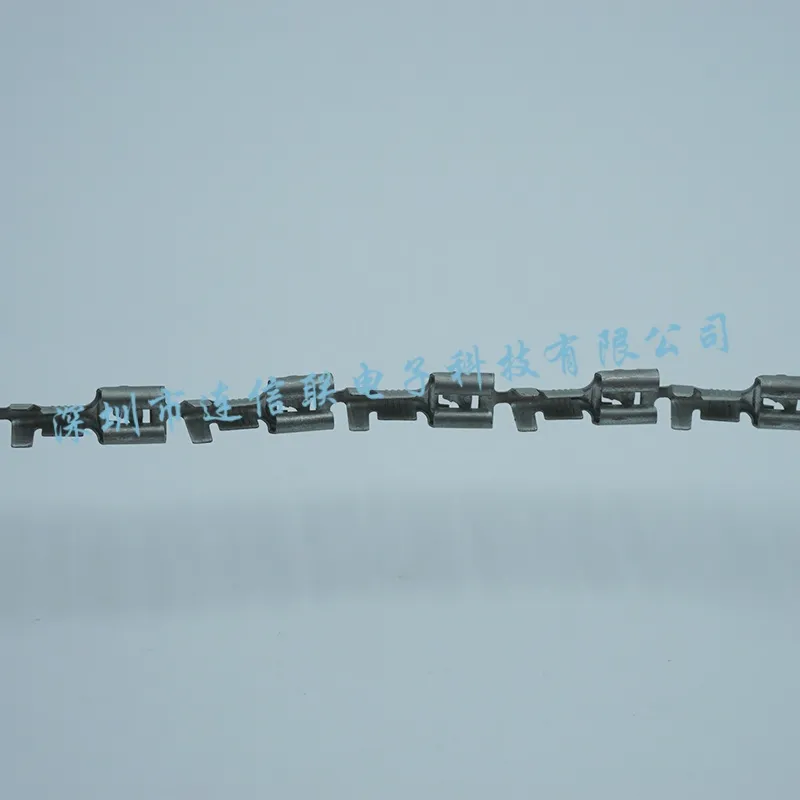

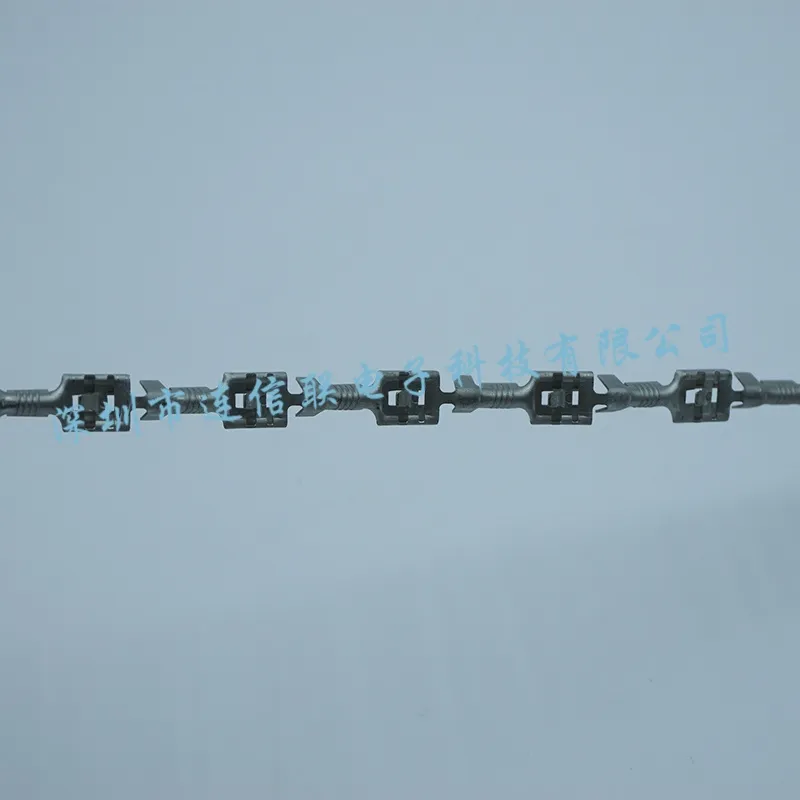

160917-2
160917-2 是 TE Connectivity / AMP 的 Quick Disconnects产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity / AMP
制造商
TE Connectivity / AMP
产品类别
Quick Disconnects
技术参数
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 5000 |
| 单位重量（kg） | 0.000866 |
| Quick Disconnect Terminal Type | Receptacle |
| Wire Size ( A W G) | 17 – 13 |
| Wire Size (Mm²) | 1.03 – 2.62 |
| Mating Tab Width | 6.35 mm [ .25 in ] |
| Mating Tab Thickness | .81 mm [ .032 in ] |
| Product Features & Characteristics | Select All |
| Insertion Force | Normal |
| Connection Capacity | Single |
| Compatible With Wire & Cable Type | Discrete Wire |
| Terminal Orientation | Straight |
| Contact Base Material | Brass |
| Terminal Plating Material | Tin |
| Crimp Type | F-Crimp |
| Barrel Type | Open |
| Product Terminates To | Wire & Cable |
| Locking Lance Height (In) | .046 |
| Mating Retention Type | Locking Lance |
| Wire Insulation Support | With |
| Terminal Material Thickness | .41 mm [ .016 in ] |
| Compatible Insulation Diameter Range | 2.11 – 3.1 mm [ .083 – .122 in ] |
| Product Length | 19.2 mm [ .755 in ] |
| Insulation Option | Uninsulated |
| Operating Temperature Range | -40 – 110 °C [ -40 – 230 °F ] |
| Packaging Quantity | 5000 |
| Packaging Method | Strip/Reel |
采购与包装
| 最小订购量 | 5000 |
|---|---|
| 订购倍数 | 5000 |
| 工厂库存 | 0 |
| 替代包装型号 | 160917-2 (Cut Strip)、160917-2 (Mouser Reel) |
合规信息
| CNHTS | 8538900000 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 8536900002 |
| KRHTS | 8536909010 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
