产品资料

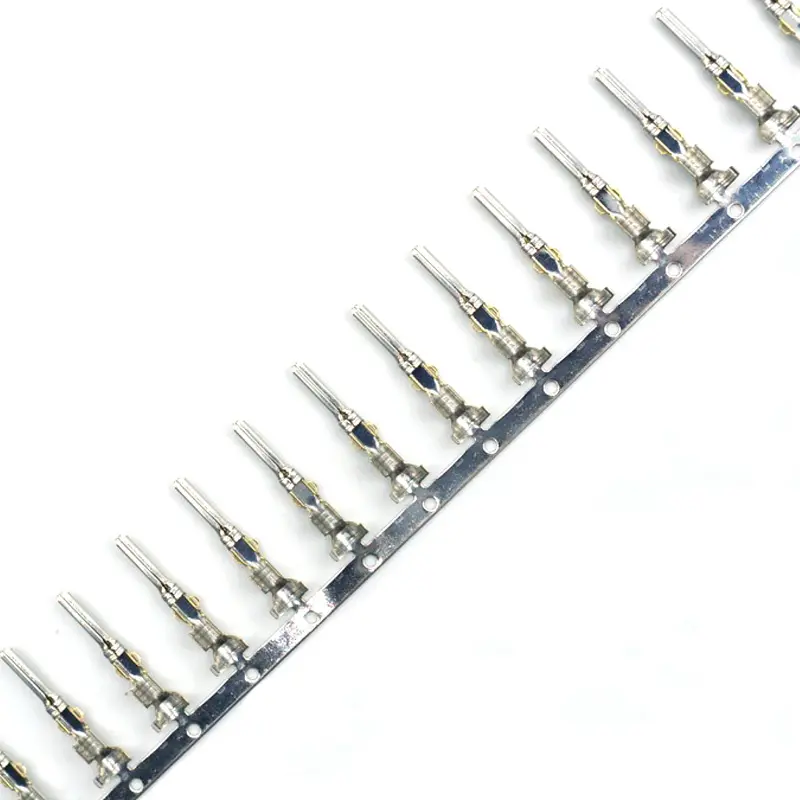

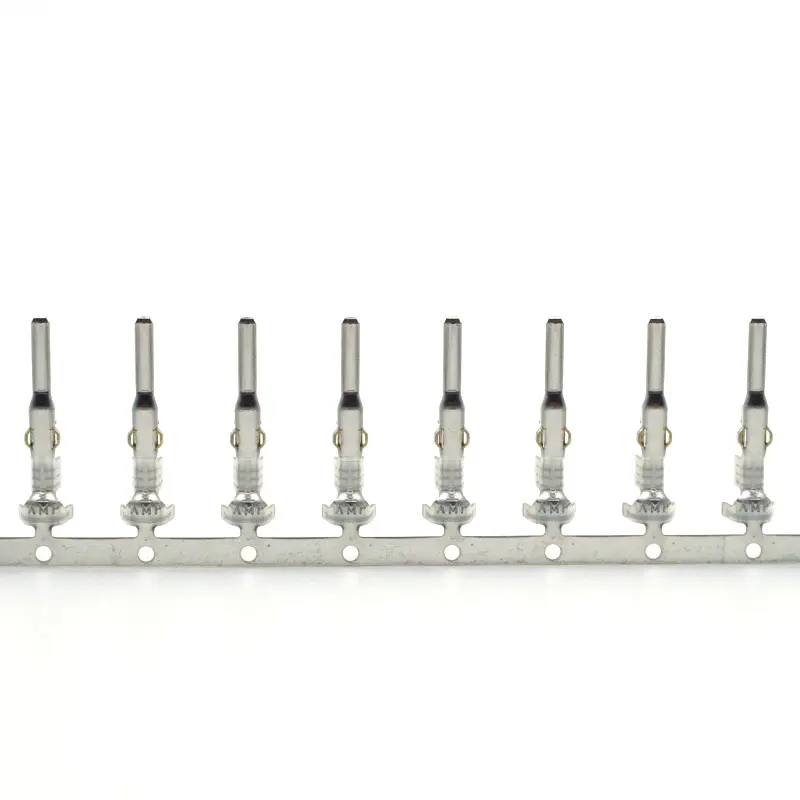

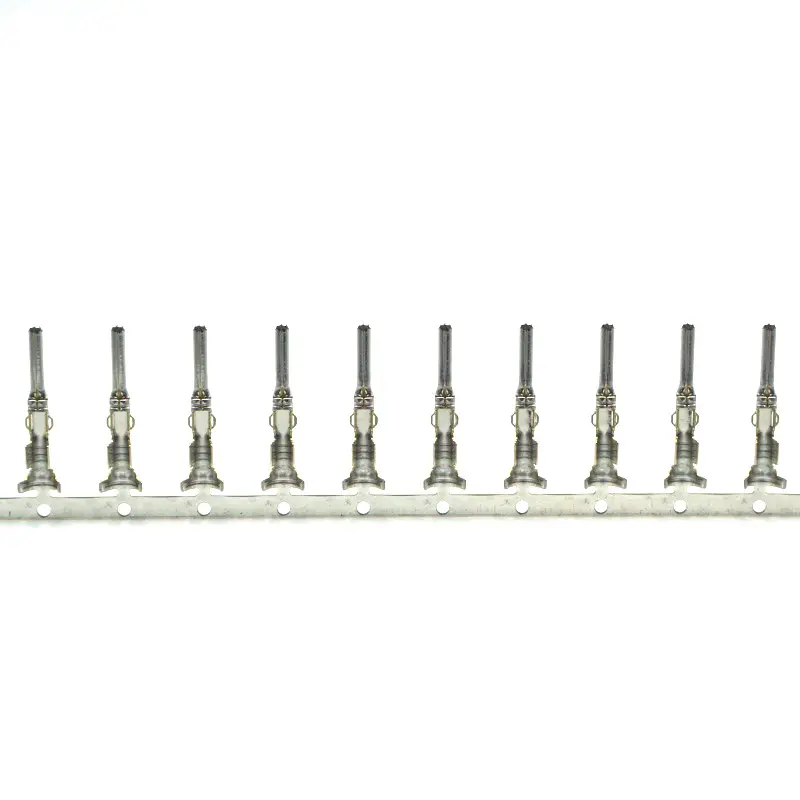

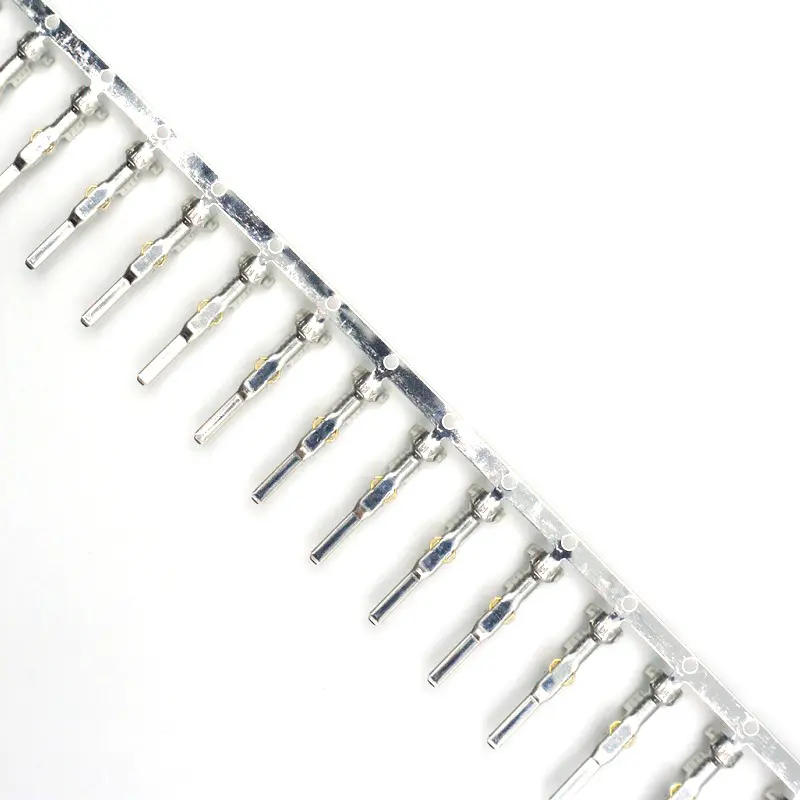

171661-1
171661-1 是 TE Connectivity / AMP 的 Automotive Terminals产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity / AMP
制造商
TE Connectivity / AMP
产品类别
Automotive Terminals
技术参数
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 6000 |
| 单位重量（kg） | 0.00035 |
| Terminal Type | Tab |
| Wire Size ( A W G) | 20 – 16 |
| Wire Size (Mm²) | .5 – 1.29 |
| Mating Tab Width | 1.8 mm [ .07 in ] |
| Interface Plating | Tin (Sn) |
| Product Features & Characteristics | Select All |
| Primary Locking Feature | Clean Body |
| Sealable | No |
| Terminal Seal Type | Unsealed |
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.8mm |
| Crimp Type | F-Crimp |
| Typical Current Rating ( A) | 10 |
| Mating Tab Thickness | .64 mm [ .025 in ] |
| Termination Method To Wire & Cable | Crimp |
| Product Terminates To | Wire & Cable |
| Compatible Insulation Diameter Range | 2 – 2.7 mm [ .078 – .106 in ] |
| Wire Size Search (Mm²) | .51 | .65 | .82 | 1.03 | 1.3 |
| Wire Size Search ( A W G) | 16 | 17 | 18 | 19 | 20 |
| Tab Length | 20.4 mm [ .8 in ] |
| Insulation Option | Uninsulated |
| Operating Temperature ( Max) | 105 °C [ 221 °F ] |
| Operating Temperature Range | -30 – 105 °C [ -22 – 221 °F ] |
| Compatible With Wire Base Material | Copper |
| Packaging Quantity | 6000 |
| Packaging Method | Reel |
| Terminal Transmits | 0 – 24 A (Low Power) |
采购与包装
| 最小订购量 | 6000 |
|---|---|
| 订购倍数 | 6000 |
| 工厂库存 | 0 |
| 建议替代型号 | 571-173706-1 |
| 替代包装型号 | 171661-1 (Cut Strip)、171661-1 (Mouser Reel) |
合规信息
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| MXHTS | 8536902800 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Korea, Republic of |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
