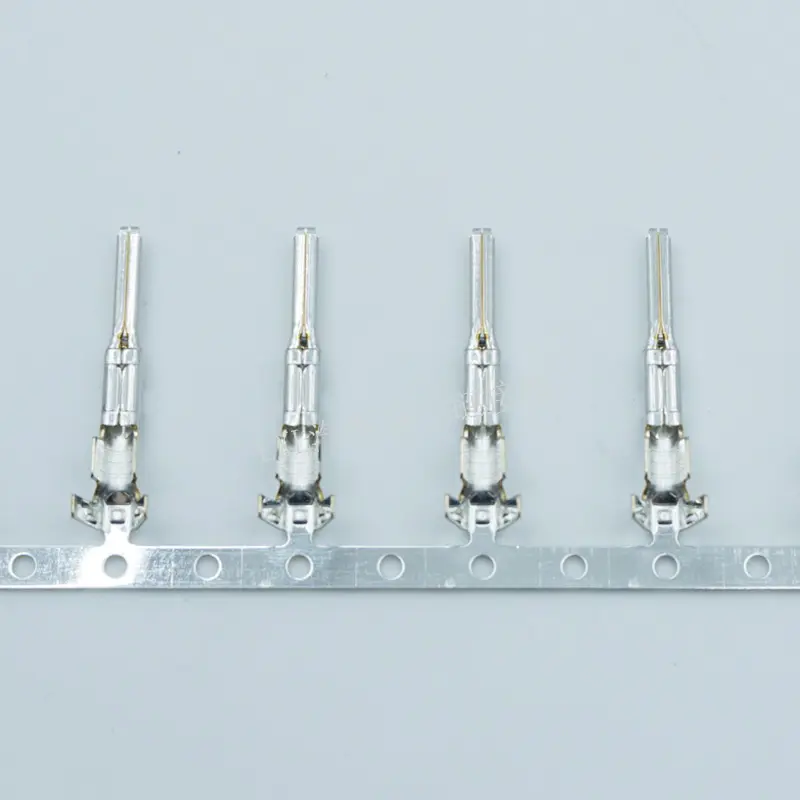

TE Connectivity 173645-1 连接器端子

¥ 0.08

包装
- 个
- 盘
- 箱

加入购物车

添加到心愿单

销售与网站使用条款
价格、库存与交期以订单确认为准

香港标准配送：17:00 截单，处理 3 个工作日 + 运输 3 个工作日，周一至周五，免运费。查看配送政策

产品技术规格

1	0.218
20	0.207
3000	0.112
3D_CVM_CVM_173645-1_L.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_173645-1&DocType=Customer%20View%20Model&DocLang=3D&DocFormat=pdf&PartCntxt=173645-1
A104961CT-ND	Cut Tape (CT)
A104961TR-ND	Tape & Reel (TR)
Assembly Country of Origin	Not available
batch	ZK
BRHTS	85369090
CAHTS	8536900020
CNHTS	8536901100
Compatible Insulation Diameter Range	2 – 2.6 mm [ .079 – .102 in ]
Contact Fabrication	Stamped & Formed
Contact Finish	Tin
Contact Finish Thickness	-
Country of Diffusion	Not available
Country of Origin	United States
Crimp Type	F-Crimp
Customer Drawing	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=173645&DocType=Customer%20Drawing&DocLang=Japanese&DocFormat=pdf&PartCntxt=173645-1
DigiKey编号	A104961TR-ND
ECCN	EAR99
ENG_CS_1654355_MULTILOCK_0911.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1654355_MULTILOCK&DocType=Catalog%20Section&DocLang=English&DocFormat=pdf&PartCntxt=173645-1
ENG_CVM_173645-1_E1.2d_dxf.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=173645-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=173645-1
ENG_CVM_173645-1_E1.3d_igs.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=173645-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=173645-1
ENG_CVM_173645-1_E1.3d_stp.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=173645-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=173645-1
ENG_CVM_173645-1_E1.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=173645-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=pdf&PartCntxt=173645-1
ENG_CVM_CVM_173645-1_L.2d_dxf.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_173645-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=173645-1
ENG_CVM_CVM_173645-1_L.3d_igs.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_173645-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=173645-1
ENG_CVM_CVM_173645-1_L.3d_stp.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_173645-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=173645-1
ENG_SS_108-5231_A.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5231&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=173645-1
ENG_SS_108-5372_O.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5372&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=173645-1
ENG_SS_108-5624_O1.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5624&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=173645-1
ENG_SS_114-5092_A.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=114-5092&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=173645-1
ENG_SS_411-5287_O1.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=411-5287&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=173645-1
ENG_SS_501-5051_O2.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-5051&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=173645-1
HTSUS编码	8536.90.4000
Insulation Option	Uninsulated
Interface Plating	Tin (Sn)
JPHTS	853690000
JPN_SS_108-5264_E1.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5264&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=pdf&PartCntxt=173645-1
JPN_SS_108-5372_O.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5372&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=pdf&PartCntxt=173645-1
JPN_SS_108-5372_O.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5372&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=tif&PartCntxt=173645-1
KRHTS	8536909010
Mating Tab Thickness	.64 mm [ .025 in ]
Mating Tab Width	1.8 mm [ .071 in ]
MXHTS	8536902800
工作温度（Max）	105 °C [ 221 °F ]
工作温度	-30 – 105 °C [ -22 – 221 °F ]
Packaging Method	Reel
Packaging Quantity	3000
Pin or Socket	Tab
POR_PMTR_RL140081_1_RL140081.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=RL140081&DocType=Product%20And%20Material%20Test%20Reports&DocLang=Portuguese&DocFormat=pdf&PartCntxt=173645-1
POR_PMTR_RL140082_1_RL140082.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=RL140082&DocType=Product%20And%20Material%20Test%20Reports&DocLang=Portuguese&DocFormat=pdf&PartCntxt=173645-1
Primary Locking Feature	Clean Body
Product Features & Characteristics	Select All
Product Terminates To	Wire
REACH状态	REACH Unaffected
S_108-5231-1_A.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5231-1&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=173645-1
S_108-5231-1_A.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5231-1&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=tif&PartCntxt=173645-1
S_108-5231_A.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5231&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=tif&PartCntxt=173645-1
S_108-5372_O.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5372&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=tif&PartCntxt=173645-1
S_108-5624_O1.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5624&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=tif&PartCntxt=173645-1
S_411-5287_O1.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=411-5287&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=tif&PartCntxt=173645-1
S_501-5051_O2.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-5051&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=tif&PartCntxt=173645-1
Sealable	No
Standard Pack Qty	3000
Tab Length	20.7 mm [ .81 in ]
TARIC	8536901000
Terminal Seal Type	Unsealed
Terminal Transmits	0 – 24 A (Low Power)
Terminal Type	Tab
Termination Method to Wire & Cable	Crimp
TE内部描述	070 TAB CONT 16-20
TE内部编号	173645-1
Type	-
Typical Current Rating (A)	14
USHTS	8536904000
Wire Contact Termination Area Plating Material	Tin
Wire Gauge	16-20 AWG
Wire Size (AWG)	20 – 16
Wire Size (mm²)	.5 – 1.25
Wire Size Search (AWG)	16 \| 17 \| 18 \| 19 \| 20
Wire Size Search (mm²)	.5 \| .6 \| .75 \| 1 \| 1.25
主要锁定特性	无尖刃主体
交期	89 Days
产品名称	173645-1 (TE Connectivity)
产品描述	Automotive Terminals, Tab, Mating Tab Width 1.8 mm [.071 in], Tab Thickness .64 mm [.025 in], 20 – 16 AWG Wire Size, Multilock Connector System
产品状态	Id：0；Status：Active
产品端接到	导线
产地	韩国/KOR
公端/母端	公端
制造商交期（周）	13
包装方式	卷
单位重量（kg）	0.00062
压接类型	F 型压接
参考单价（USD）	0.15
可密封性	否
可用库存	97239
品名	盘装端子
品牌归属地	国际
基本分类	连接器
子品牌	AMP
官方产品图片1	https://www.te.com/content/dam/te-com/catalog/part/001/736/451/173645-1-t1.jpg/jcr:content/renditions/product-details.png
对接公端厚度	.025 in
对接公端宽度	.071 in
导线端子端接区域电镀材料	锡
封装数量	3000
工作温度范围	176 °F、-22 – 221 °F
年份批次	202601
数据手册	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=173645&DocType=Customer+Drawing&DocLang=Japanese
替代包装型号	173645-1 (Cut Strip)、173645-1 (Mouser Reel)、175030-1、175189-1、345212-1
替代型号	932-180-1011（JiDC(济德)）、AH612-1.8X0.6B（AHI）
湿敏等级	1 (Unlimited)
端子传导	0 – 24 A（低功率）
端子制造	冲压成形
端子大小	1.8mm
端接方法	压接
线径	.5 – 1.25 mm²
线规-AWG	16 AWG
绝缘选项	非绝缘
触头镀层	锡
贸泽编号	571-173645-1
适用的绝缘层直径范围	.079 – .102 in
零件编号	173645-1
额定电流	14A
安装风格	线缆安装（压接式）
包装	Reel
间距	1.8mm
系列	Multi-Lock
端接方式	Crimp

品牌：TE Connectivity 产品类别：汽车端子产品系列：Multilock Connector System

同品牌、系列或类别的相似产品（不代表兼容或可替代）

TE Connectivity 936207-1 连接器胶壳 TE Connectivity 936095-1 连接器胶壳 TE Connectivity 5-965906-1 连接器端子 TE Connectivity 3-1534127-1 连接器胶壳 TE Connectivity 2822357-1 连接器密封件 TE Connectivity 2822354-1 连接器密封件 TE Connectivity 963142-3 连接器密封件 TE Connectivity 1564411-7 连接器配件

已核验询价信息

包装方式: 卷
Packaging: Reel
最小订购量: 3000

制造商及授权来源记录

产品资料

173645-1

173645-1 是 TE Connectivity AMP Connectors 的 Automotive Terminals产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。

品牌

TE Connectivity AMP Connectors

制造商

TE Connectivity AMP Connectors

产品类别

Automotive Terminals

技术参数

公端/母端	公端
包装方式	卷
品牌归属地	国际
端接方法	压接
系列	Multilock Connector System
线规-AWG	16 AWG
触头镀层	锡
额定电流	14A
TE内部编号	173645-1
主要锁定特性	无尖刃主体
产品端接到	导线
分类	汽车端子
压接类型	F 型压接
可密封性	否
子品牌	AMP
对接公端厚度	.025 in
对接公端宽度	.071 in
导线端子端接区域电镀材料	锡
封装数量	3000
工作温度范围	176 °F、-22 – 221 °F
描述	070 TAB CONT 16-20
端子传导	0 – 24 A（低功率）
端子制造	冲压成形
端子大小	1.8mm
线径	.5 – 1.25 mm²
绝缘选项	非绝缘
适用的绝缘层直径范围	.079 – .102 in
零件编号	173645-1
Packaging	Reel
Standard Pack Qty	3000
Type	-
Pin or Socket	Tab
Contact Termination	Crimp
Wire Gauge	16-20 AWG
Contact Finish	Tin
Contact Finish Thickness	-
单位重量（kg）	0.00062
Terminal Type	Tab
Wire Size ( A W G)	20 – 16
Wire Size (Mm²)	.5 – 1.25

采购与包装

最小订购量	3000
订购倍数	3000
工厂库存	0
建议替代型号	571-175030-1
替代包装型号	173645-1 (Cut Strip)、173645-1 (Mouser Reel)、175030-1、175189-1、345212-1

合规信息

RoHS状态	ROHS3 Compliant
REACH状态	REACH Unaffected
湿敏等级	1 (Unlimited)
ECCN	EAR99
HTSUS编码	8536.90.4000
CNHTS	8536901100
TARIC	8536901000
CAHTS	8536900020
USHTS	8536904000
JPHTS	853690000
KRHTS	8536909010
MXHTS	8536902800
BRHTS	85369090
Country of Origin	United States
Assembly Country of Origin	Not available
Country of Diffusion	Not available

其他信息

产地	韩国/KOR批量参考批次：202601
品名	盘装端子

参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
