产品资料

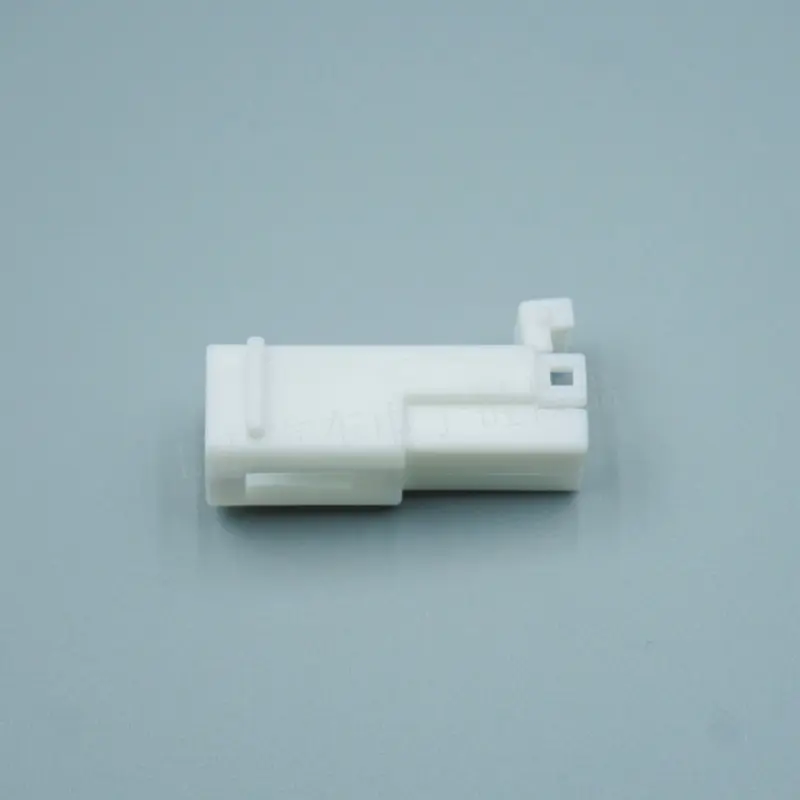

174460-1
174460-1 是 TE Connectivity / AMP 的 Automotive Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity / AMP
制造商
TE Connectivity / AMP
产品类别
Automotive Housings
技术参数
| Packaging | Bulk |
|---|---|
| Standard Pack Qty | 4000 |
| 单位重量（kg） | 0.002495 |
| Connector & Housing Type | Housing for Male Terminals |
| Number Of Positions | 2 |
| Sealable | No |
| Operating Temperature Range | -30 – 105 °C [ -22 – 221 °F ] |
| Number Of Rows | 1 |
| Product Features & Characteristics | Select All |
| Mixed & Hybrid Connector | No |
| Connector Shape | Rectangular |
| Primary Locking Feature | On the Terminal |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Primary Product Color | Natural |
| Contact Type | Tab |
| Contact Size | 1.8mm |
| Mating Tab Width | 1.8 mm [ .07 in ] |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Centerline ( Pitch) | 3.5 mm [ .137 in ] |
| Connector Height | 15.8 mm [ .622 in ] |
| Product Length | 14.6 mm [ .575 in ] |
| Product Width | 30.9 mm [ 1.217 in ] |
| Operating Temperature ( Max) | 105 °C [ 221 °F ] |
| Circuit Application | Power |
| Connector Position Assurance Capable | No |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
合规信息
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8536690020 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| KRHTS | 8536691000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
