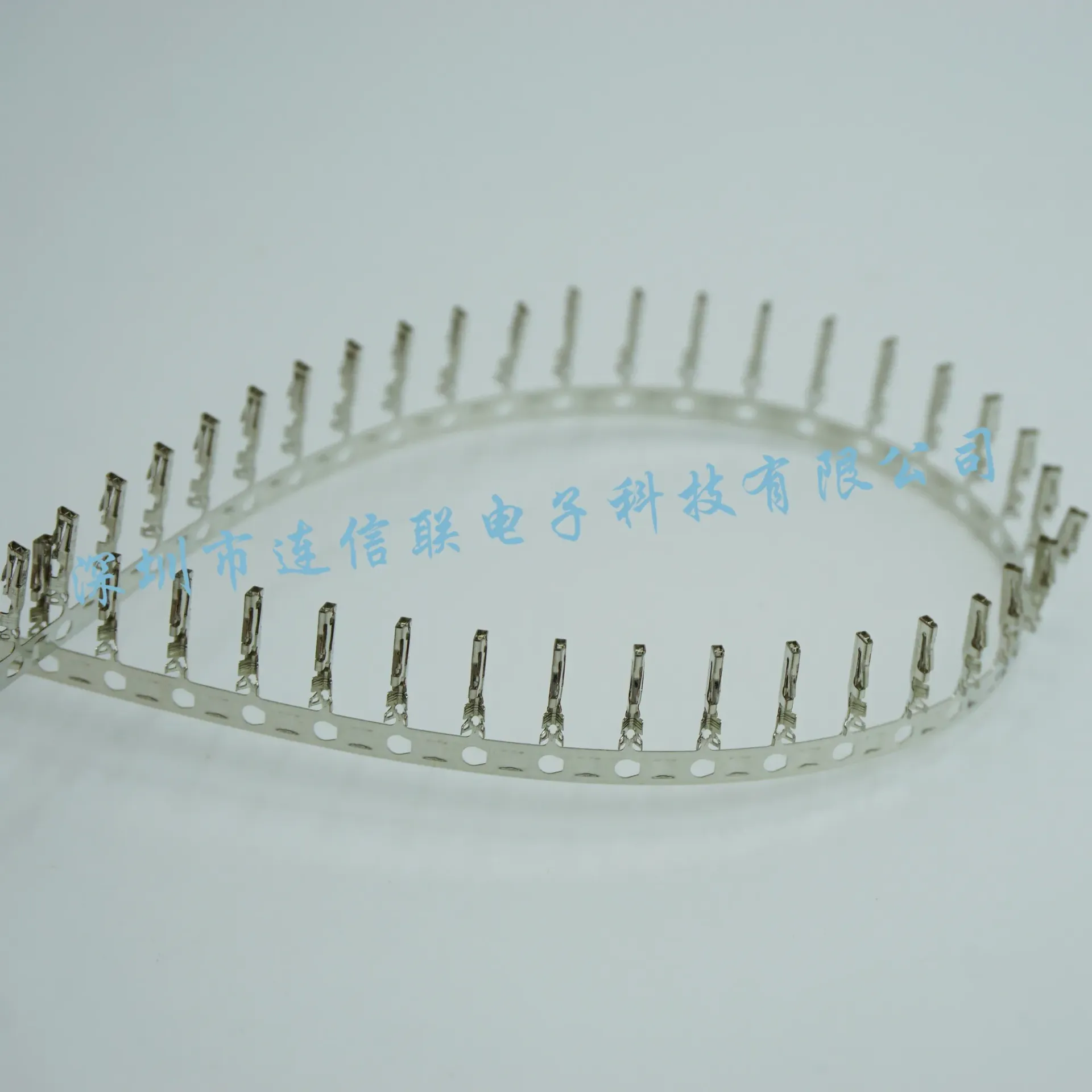

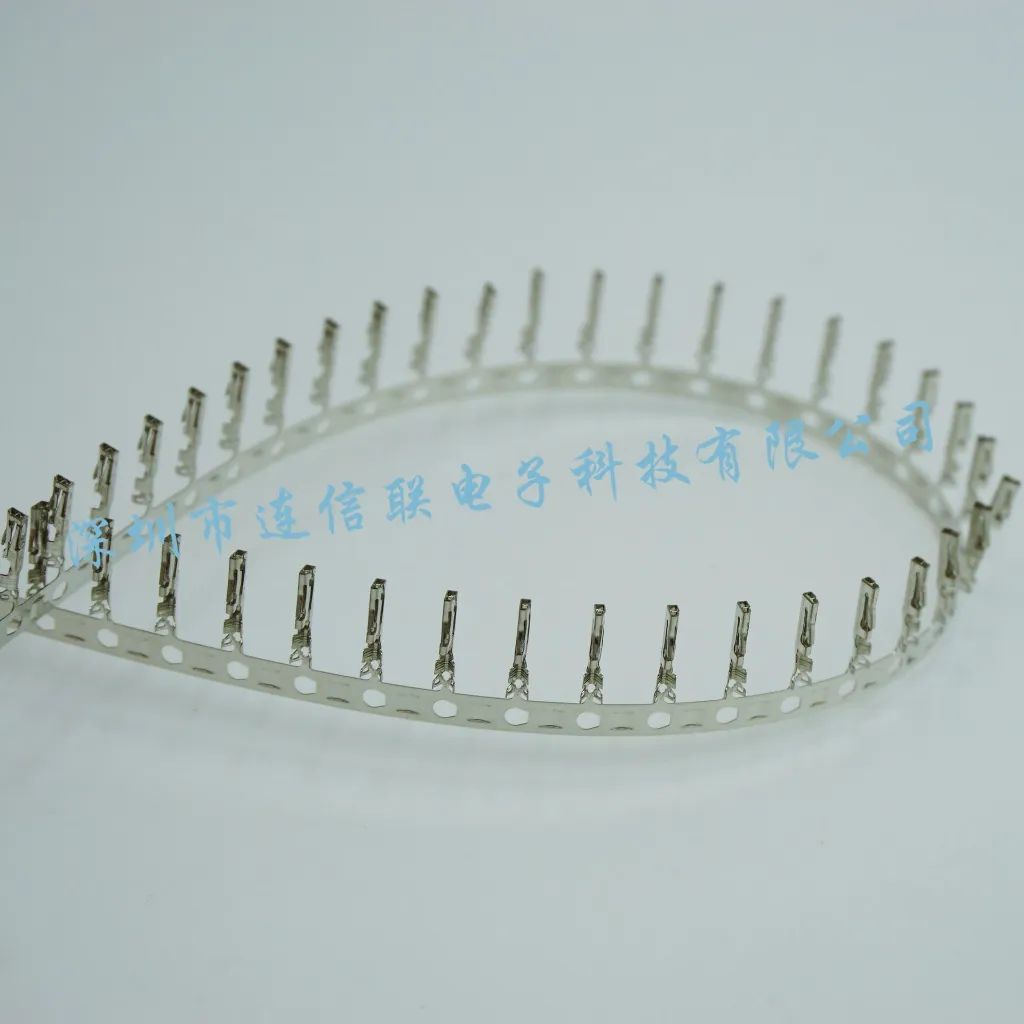

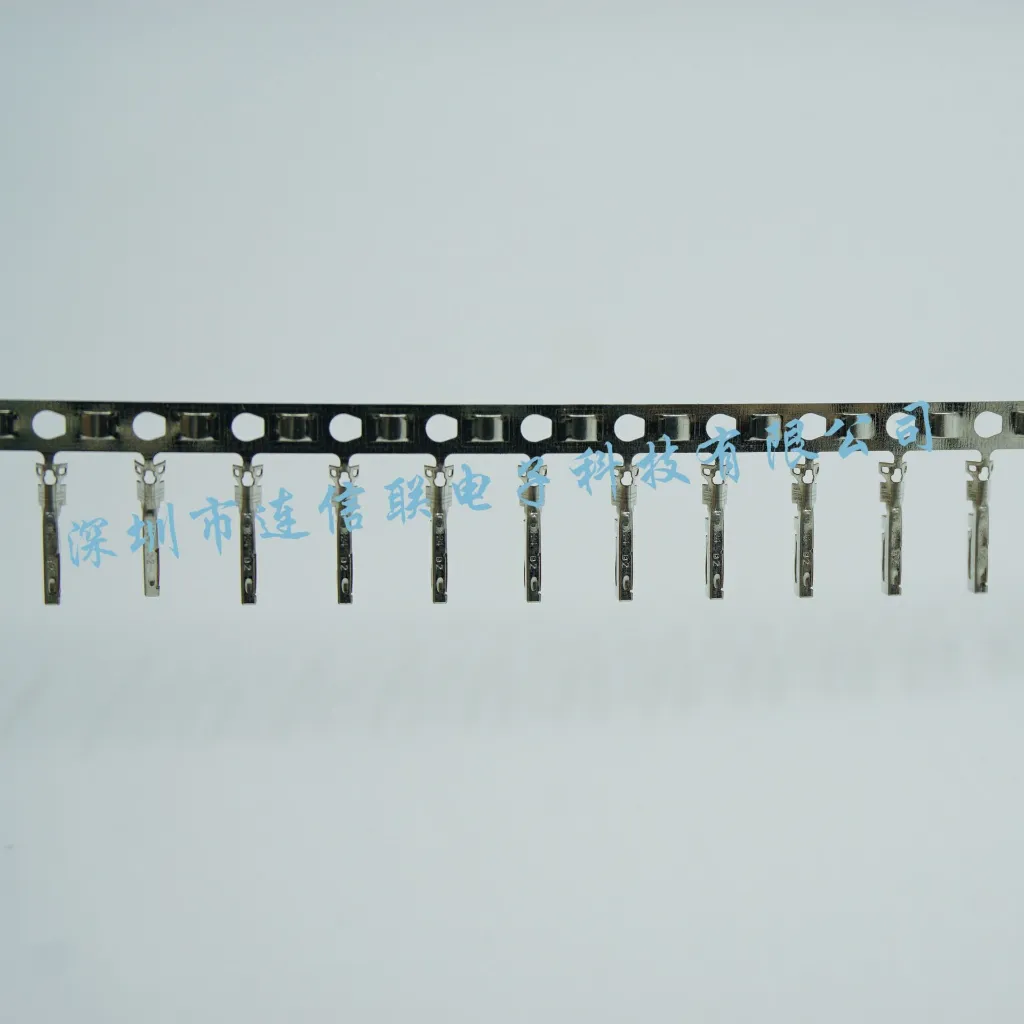

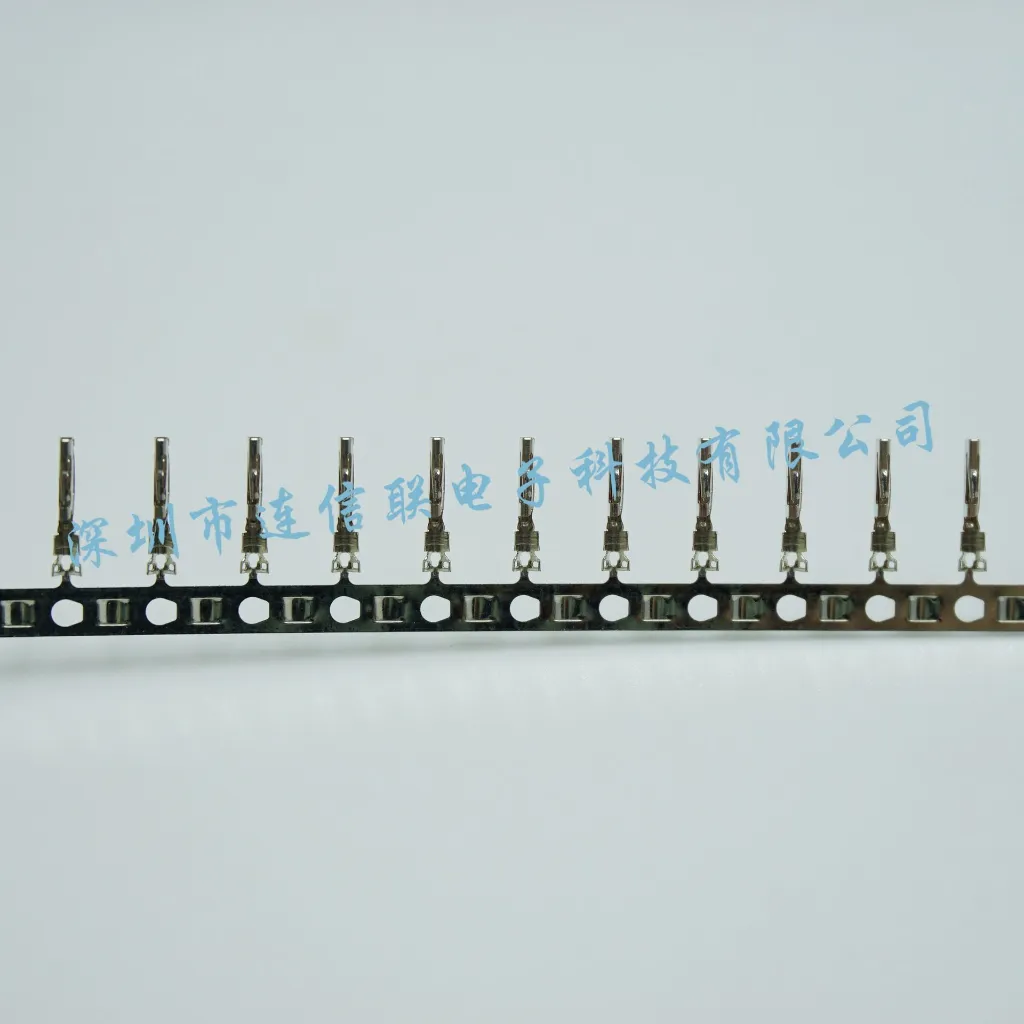

TE Connectivity 2-2287720-1 连接器端子

¥ 0.85

包装
- 个
- 箱

加入购物车

添加到心愿单

销售与网站使用条款
价格、库存与交期以订单确认为准

香港标准配送：17:00 截单，处理 3 个工作日 + 运输 3 个工作日，周一至周五，免运费。查看配送政策

产品技术规格

1	0.348
17-2-2287720-1CT-ND	Cut Tape (CT)
17-2-2287720-1TR-ND	Tape & Reel (TR)
18000	0.238
180000	0.225
20	0.331
360000	0.221
3D_CVM_CVM_2-2287720-1_A.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_2-2287720-1&DocType=Customer%20View%20Model&DocLang=3D&DocFormat=pdf&PartCntxt=2-2287720-1
90000	0.232
Assembly Country of Origin	Not available
batch	ZK
CAHTS	8536900020
CNHTS	8536901100
Compatible Insulation Diameter Range	.9 – 1.05 mm [ .035 – .041 in ]
Compatible With Agency/Standards Products	DIN 72036
Conforms to Automation Guideline	Yes, DIN 72036 Automation of Wiring Harness Production, Version June 2024 \| Yes, KOMAX Guideline for automatic component insertion for electrical connections, Version 5.0 (March 2018)
Connector System	0.50 Connector System
Contact Fabrication	Stamped & Formed
Contact Finish	Tin
Contact Finish Thickness	31.5µin (0.80µm)
Contact Plating	Tin
Country of Diffusion	Not available
Country of Origin	Germany
Crimp Type	F-Crimp
Customer Drawing	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=2287720&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=2-2287720-1
DigiKey编号	17-2-2287720-1TR-ND
ECCN	EAR99
ENG_CVM_CVM_2-2287720-1_A.2d_dxf.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_2-2287720-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=2-2287720-1
ENG_CVM_CVM_2-2287720-1_A.3d_igs.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_2-2287720-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=2-2287720-1
ENG_CVM_CVM_2-2287720-1_A.3d_stp.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_2-2287720-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=2-2287720-1
ENG_SS_108-94545_C.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-94545&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=2-2287720-1
ENG_SS_114-94424_D.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=114-94424&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=2-2287720-1
HTSUS编码	8536.90.4000
Insulation Option	Uninsulated
Interface Plating	Tin (Sn)
JPHTS	853690000
Mating Tab Width	.5 mm [ .02 in ]
MXHTS	8536902800
Packaging Method	Reel
Packaging Quantity	18000
Pin or Socket	Socket
Primary Locking Feature	Integrated in Housing
Product Features & Characteristics	Select All
Product Terminates To	Wire
REACH状态	REACH not applicable
Receptacle Style	180°
Standard Pack Qty	18000
Tab Length	8.15 mm [ .32 in ]
TARIC	8536901000
Terminal Seal Type	Unsealed
Terminal Transmits	0 – 24 A (Low Power)
Terminal Type	Receptacle
Termination Method to Wire & Cable	Crimp
TE内部描述	PICO MQS,TERMINAL
TE内部编号	2-2287720-1
Type	Stamped
Typical Current Rating (A)	2
USHTS	8536904000
Wire Contact Termination Area Plating Material	Tin
Wire Gauge	24-26 AWG
Wire Size (AWG)	25 – 24
Wire Size (mm²)	.17 – .22
Wire Size Search (AWG)	24 \| 25
Wire Size Search (mm²)	.17 \| .22
与电线基础材料兼容	铜
主要锁定特性	锁定枪
交期	126 Days
产品名称	2-2287720-1 (TE Connectivity)
产品描述	Automotive Terminals, Receptacle, Mating Tab Width .5 mm [.02 in], Tab Thickness .4 mm [.016 in], 24 AWG Wire Size, .22 mm² Wire Size
产品状态	Id：0；Status：Active
产品端接到	导线
产地	德国/DEU
公端/母端	母端
制造商交期（周）	18
包装方式	卷
压接类型	F 型压接
参考单价（USD）	0.12
可密封性	否
可用库存	171280
品名	盘装端子
品牌归属地	国际
基本分类	连接器
子品牌	TE Connectivity
官方产品图片1	https://www.te.com/content/dam/te-com/catalog/part/222/877/201/2-2287720-1-t1.jpg/jcr:content/renditions/product-details.png
对接公端厚度	.016 in
对接公端宽度	.02 in
封装数量	18000
工作温度范围	176 °F、-40 – 266 °F
年份批次	202307
插座种类	180°
数据手册	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=2287720&DocType=Customer%20Drawing&DocLang=English&PartCntxt=2-2287720-1&DocFormat=pdf
湿敏等级	1 (Unlimited)
端子传导	0 – 24 A（低功率）
端子制造	冲压成形
端子大小	.5mm
端接方法	压接
线径	.22 mm²
线规-AWG	24 AWG
绝缘选项	非绝缘
触头镀层	锡
贸泽编号	571-2-2287720-1
适用的绝缘层直径范围	.85 – 1.05 mm
零件编号	2-2287720-1
安装风格	压接式
工作温度	-40 – 130 °C [ -40 – 266 °F ]
工作温度（Max）	130 °C [ 266 °F ]
间距	.5mm
额定电流	2A
系列	Pico Micro Quadlok
端接方式	Crimp

品牌：TE Connectivity 产品类别：汽车端子

同品牌、系列或类别的相似产品（不代表兼容或可替代）

TE Connectivity 5-965906-1 连接器端子 TE Connectivity 936207-1 连接器胶壳 TE Connectivity 3-1534127-1 连接器胶壳 TE Connectivity 2822357-1 连接器密封件 TE Connectivity 2822354-1 连接器密封件 TE Connectivity 963142-3 连接器密封件 TE Connectivity 1564411-7 连接器配件 TE Connectivity 1703278-2 连接器端子

已核验询价信息

包装方式: 卷
Packaging: Reel
最小订购量: 1

制造商及授权来源记录

产品资料

2-2287720-1

2-2287720-1 是 TE Connectivity AMP Connectors 的 Automotive Terminals产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。

品牌

TE Connectivity AMP Connectors

制造商

TE Connectivity AMP Connectors

产品类别

Automotive Terminals

技术参数

公端/母端	母端
包装方式	卷
品牌归属地	国际
端接方法	压接
线规-AWG	24 AWG
触头镀层	锡
额定电流	2A
TE内部编号	2-2287720-1
与电线基础材料兼容	铜
主要锁定特性	锁定枪
产品端接到	导线
分类	汽车端子
压接类型	F 型压接
可密封性	否
子品牌	TE Connectivity
对接公端厚度	.016 in
对接公端宽度	.02 in
封装数量	18000
工作温度范围	176 °F、-40 – 266 °F
描述	PICO MQS,TERMINAL
插座种类	180°
端子传导	0 – 24 A（低功率）
端子制造	冲压成形
端子大小	.5mm
线径	.22 mm²
绝缘选项	非绝缘
适用的绝缘层直径范围	.85 – 1.05 mm
零件编号	2-2287720-1
Packaging	Reel
Standard Pack Qty	18000
Type	Stamped
Pin or Socket	Socket
Contact Termination	Crimp
Wire Gauge	24-26 AWG
Contact Finish	Tin
Contact Finish Thickness	31.5µin (0.80µm)
Terminal Type	Receptacle
Wire Size ( A W G)	25 – 24
Wire Size (Mm²)	.17 – .22
Mating Tab Width	.5 mm [ .02 in ]
Interface Plating	Tin (Sn)
Product Features & Characteristics	Select All
Receptacle Style	180°
Primary Locking Feature	Integrated in Housing
Sealable	No
Terminal Seal Type	Unsealed
Wire Contact Termination Area Plating Material	Tin
Contact Fabrication	Stamped & Formed
Contact Size	.5mm
Crimp Type	F-Crimp
Typical Current Rating ( A)	2
Termination Method To Wire & Cable	Crimp
Product Terminates To	Wire
Compatible Insulation Diameter Range	.9 – 1.05 mm [ .035 – .041 in ]
Wire Size Search (Mm²)	.17 \| .22
Wire Size Search ( A W G)	24 \| 25
Tab Length	8.15 mm [ .32 in ]
Insulation Option	Uninsulated
Operating Temperature ( Max)	130 °C [ 266 °F ]
Operating Temperature Range	-40 – 130 °C [ -40 – 266 °F ]
Conforms To Automation Guideline	Yes, DIN 72036 Automation of Wiring Harness Production, Version June 2024 \| Yes, KOMAX Guideline for automatic component insertion for electrical connections, Version 5.0 (March 2018)
Compatible With Agency/ Standards Products	DIN 72036
Packaging Quantity	18000
Packaging Method	Reel
Terminal Transmits	0 – 24 A (Low Power)

采购与包装

最小订购量	1
订购倍数	1
工厂库存	0

合规信息

RoHS状态	ROHS3 Compliant
REACH状态	REACH not applicable
湿敏等级	1 (Unlimited)
ECCN	EAR99
HTSUS编码	8536.90.4000
CNHTS	8536901100
CAHTS	8536900020
USHTS	8536904000
JPHTS	853690000
TARIC	8536901000
MXHTS	8536902800
Country of Origin	Germany
Assembly Country of Origin	Not available
Country of Diffusion	Not available

其他信息

产地	德国/DEU批量参考批次：202307
品名	盘装端子

参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
