产品资料

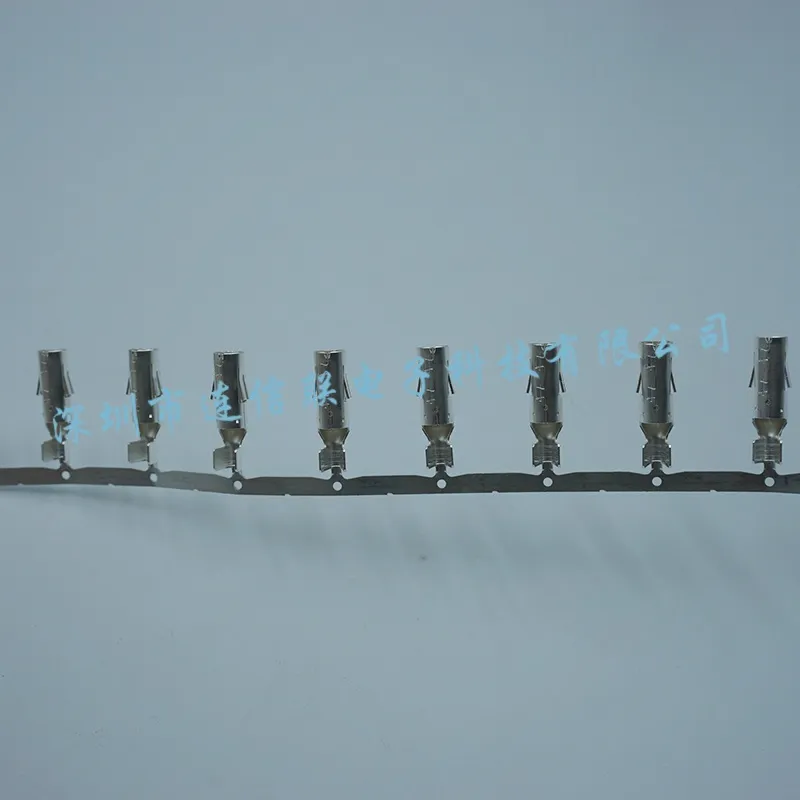

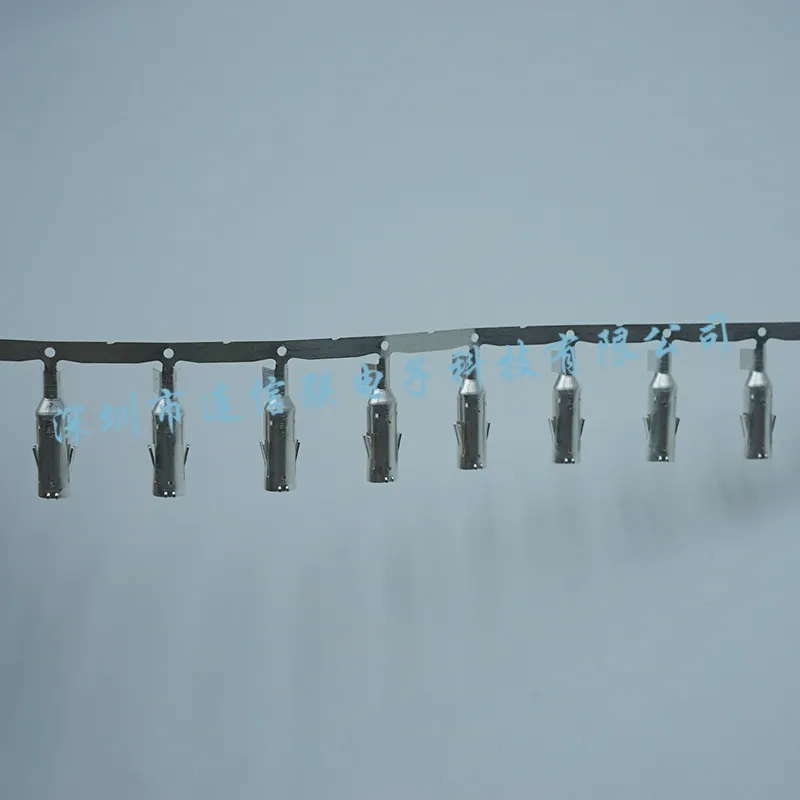

2-2349177-1
2-2349177-1 是 TE Connectivity 的 Automotive Terminals产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity
制造商
TE Connectivity
产品类别
Automotive Terminals
技术参数
| Standard Pack Qty | 4000 |
|---|---|
| Terminal Type | Socket |
| Wire Size ( A W G) | 13 – 11 |
| Wire Size (Mm²) | 2.5 – 4 |
| Interface Plating | Silver (Ag) |
| Primary Locking Feature | Locking Lance |
| Product Features & Characteristics | Select All |
| Receptacle Style | 180° |
| Sealable | No |
| Wire Contact Termination Area Plating Material | Silver |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 4mm |
| Crimp Type | F-Crimp |
| Mating Pin Diameter (Mm) | 4 |
| Termination Method To Wire & Cable | Crimp |
| Product Terminates To | Wire |
| Wire Size Search (Mm²) | 2.5 |
| Wire Size Search ( A W G) | 13 |
| Insulation Option | Uninsulated |
| Operating Temperature ( Max) (° C) | 150 |
| Operating Temperature Range | -40 – 150 °C [ -40 – 302 °F ] |
| Compatible With Wire Base Material | Copper |
| Packaging Quantity | 1000 |
| Packaging Method | Carton |
| Terminal Transmits | 25 – 40 A (Power) |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
合规信息
| CNHTS | 8536901100 |
|---|---|
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| TARIC | 8536901000 |
| MXHTS | 8536902800 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| 生命周期 | New at Mouser |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
