产品技术规格
| 1 | 25.048 |
|---|---|
| 20 | 23.855 |
| 3D_CVM_CVM_205205-2_V.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_205205-2&DocType=Customer%20View%20Model&DocLang=3D&DocFormat=pdf&PartCntxt=205205-2 |
| A1033-ND | Bulk |
| Assembly Country of Origin | Not available |
| batch | N |
| BRHTS | 85389090 |
| CAHTS | 8538909090 |
| Centerline (Pitch) | 2.74 mm [ .108 in ] |
| Circuit Application | Signal |
| CNHTS | 8538900000 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Receptacle |
| Connector Mounting Type | Panel Mount |
| Connector Shell Size | 2 |
| Connector Style | D-Sub |
| Connector System | Cable-to-Cable |
| Connector Type | Receptacle for Female Contacts |
| Contact Options | Order Separately |
| Contact Type | Signal |
| Country of Diffusion | Not available |
| Country of Origin | China |
| Customer Drawing | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=205205&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=205205-2 |
| DigiKey编号 | A1033-ND |
| D 形连接器注释 | 母端适配尺寸为 20 DF 的插座端子。 |
| ECCN | EAR99 |
| ENG_AAD_CSA_164196_6233_1088108_B.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CSA_164196_6233_1088108&DocType=Agency%20Approval%20Document&DocLang=English&DocFormat=pdf&PartCntxt=205205-2 |
| ENG_CS_82068_AMPLIMITE_Cable_Connectors_0412.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=82068_AMPLIMITE_Cable_Connectors&DocType=Catalog%20Section&DocLang=English&DocFormat=pdf&PartCntxt=205205-2 |
| ENG_CVM_CVM_205205-2_V.2d_dxf.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_205205-2&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=205205-2 |
| ENG_CVM_CVM_205205-2_V.3d_igs.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_205205-2&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=205205-2 |
| ENG_CVM_CVM_205205-2_V.3d_stp.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_205205-2&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=205205-2 |
| ENG_SS_108-40005_G.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-40005&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=205205-2 |
| ENG_SS_114-40030_D.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=114-40030&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=205205-2 |
| ENG_SS_408-7514_E.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=408-7514&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=205205-2 |
| ENG_SS_501-99_C.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-99&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=205205-2 |
| Features | - |
| Flange Feature | Housing/Shell (Unthreaded) |
| HTSUS编码 | 8538.90.8180 |
| 防护等级 | - |
| Insert Material | Thermoplastic |
| JPHTS | 853890000 |
| Mating Retention | With |
| Mating Retention Type | Mounting Holes |
| Number of Rows | 2 |
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| Packaging Method | Package |
| Packaging Quantity | 800 |
| Product Features & Characteristics | Select All |
| REACH状态 | REACH Unaffected |
| Sealable | No |
| Shell Finish Thickness | - |
| Shell Material | Steel |
| Shell Material Configuration | Full Metal Shell |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Plating Material | Tin |
| Shell Size, Connector Layout | 2 (DA, A) |
| Shielded | Yes |
| Shield Material | Steel |
| Standard Pack Qty | 400 |
| TARIC | 8547200090 |
| Termination Method to Wire & Cable | Crimp |
| TE内部描述 | CRIMP SNAP RCPT ASSY,SIZE 2 |
| UL Flammability Rating | UL 94V-0 |
| USHTS | 8538908180 |
| 中心线（间距） | .108 in |
| 交期 | 130 Days |
| 产品名称 | 205205-2 (TE Connectivity) |
| 产品描述 | Crimp D-Sub Connectors, Receptacle, Cable-to-Cable, 15 Position, Contact Size Size 20, 2 Connector Shell Size, Mating Retention, Shielded |
| 产品状态 | Id：0；Status：Active |
| 产地 | 中国/CHN |
| 公端/母端 | 母端 |
| 别名 | 205205-2、1186906 |
| 制造商交期（周） | 19 |
| 包装方式 | - |
| 单位重量（kg） | 0.090718 |
| 参考单价（USD） | 1.87 |
| 可密封性 | 否 |
| 可用库存 | 2523 |
| 品名 | D-sub |
| 品牌归属地 | 国际 |
| 基本分类 | 连接器 |
| 壳体材料配置 | 全部金属外壳 |
| 外壳材料 | 钢 |
| 外壳电镀材料 | 锡 |
| 子品牌 | AMP |
| 官方产品图片1 | https://www.te.com/content/dam/te-com/catalog/part/002/052/052/205205-2-t1.jpg/jcr:content/renditions/product-details.png |
| 封装数量 | 800 |
| 屏蔽 | 是 |
| 屏蔽材料 | 钢 |
| 工作温度范围 | -67 – 221 °F |
| 接合固定 | 带有 |
| 接合固定类型 | 安装孔 |
| 插针材料 | 热塑塑料 |
| 数据手册 | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=205205&DocType=Customer%20Drawing&DocLang=English&PartCntxt=205205-2&DocFormat=pdf |
| 替代型号 | 96T0-00121（JiDC(济德)）、205205-7（TE） |
| 湿敏等级 | 1 (Unlimited) |
| 电路应用 | Signal |
| 端子大小 | 尺寸 20 |
| 贸泽编号 | 571-2052052 |
| 连接器和端子端接到 | 电线和电缆 |
| 连接器壳体尺寸 | 2 |
| 连接器系统 | 缆到缆 |
| 针位数 | 15 |
| 阻燃等级 | UL94 V-0 |
| 零件编号 | 205205-2 |
| 接触件材质 | 不适用 |
| 安装风格 | Free Hanging (In-Line) |
| 间距 | Size 20 |
| 芯数 | 15 |
| 系列 | AMPLIMITE HDP-20 |
相关产品信息
同品牌、系列或类别的相似产品（不代表兼容或可替代）
已核验询价信息
- 包装方式
- -
- 最小订购量
- 1
制造商及授权来源记录
产品资料

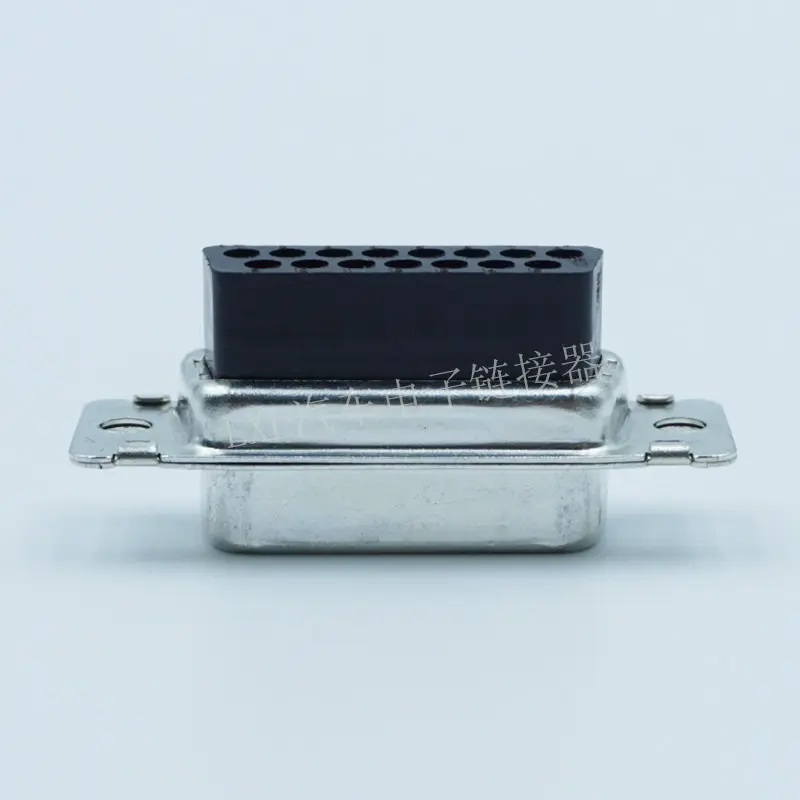

205205-2
205205-2 是 TE Connectivity AMP Connectors 的 D-Shaped Connectors产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity AMP Connectors
制造商
TE Connectivity AMP Connectors
产品类别
D-Shaped Connectors
技术参数
| 公端/母端 | 母端 |
|---|---|
| 别名 | 1186906 |
| 包装方式 | - |
| 品牌归属地 | 国际 |
| 外壳材料 | 钢 |
| 针位数 | 15 |
| 阻燃等级 | UL94 V-0 |
| D 形连接器注释 | 母端适配尺寸为 20 DF 的插座端子。 |
| 中心线（间距） | .108 in |
| 分类 | 压接 D-Sub 连接器 |
| 可密封性 | 否 |
| 壳体材料配置 | 全部金属外壳 |
| 外壳电镀材料 | 锡 |
| 子品牌 | AMP |
| 封装数量 | 800 |
| 屏蔽 | 是 |
| 屏蔽材料 | 钢 |
| 工作温度范围 | -67 – 221 °F |
| 接合固定 | 带有 |
| 接合固定类型 | 安装孔 |
| 描述 | CRIMP SNAP RCPT ASSY,SIZE 2 |
| 插针材料 | 热塑塑料 |
| 电路应用 | Signal |
| 端子大小 | 尺寸 20 |
| 连接器和端子端接到 | 电线和电缆 |
| 连接器壳体尺寸 | 2 |
| 连接器系统 | 缆到缆 |
| 零件编号 | 205205-2 |
| Standard Pack Qty | 400 |
| Connector Style | D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Shell Size, Connector Layout | 2 (DA, A) |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Features | - |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Finish Thickness | - |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| RoHS状态 | ROHS3 Compliant |
|---|---|
| REACH状态 | REACH Unaffected |
| 湿敏等级 | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS编码 | 8538.90.8180 |
| CNHTS | 8538900000 |
| TARIC | 8547200090 |
| CAHTS | 8538909090 |
| USHTS | 8538908180 |
| JPHTS | 853890000 |
| BRHTS | 85389090 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
其他信息
| 产地 | 中国/CHN批量参考批次： |
|---|---|
| 品名 | D-sub |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
