产品资料

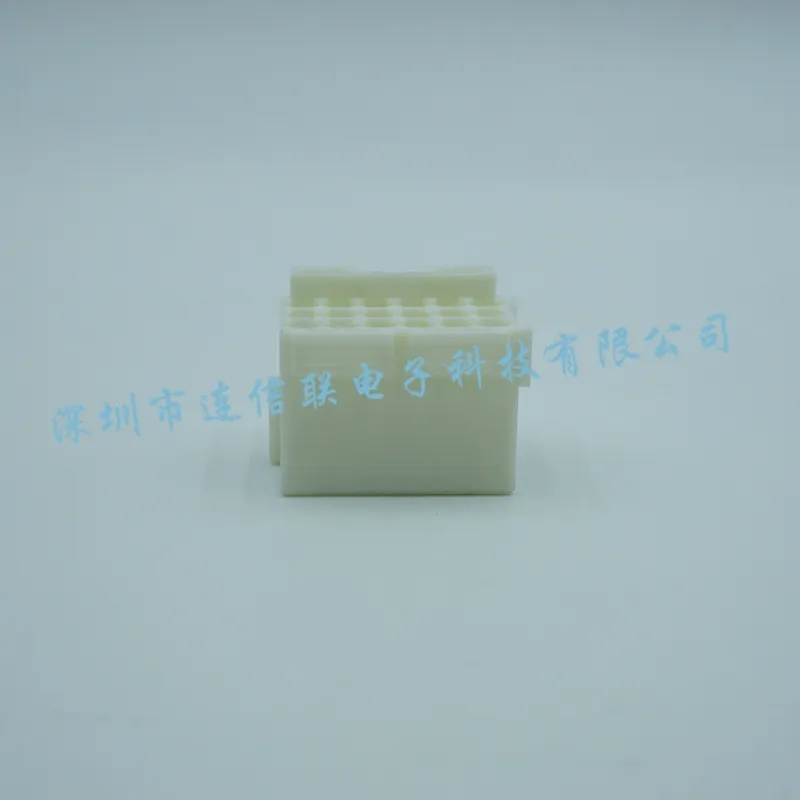

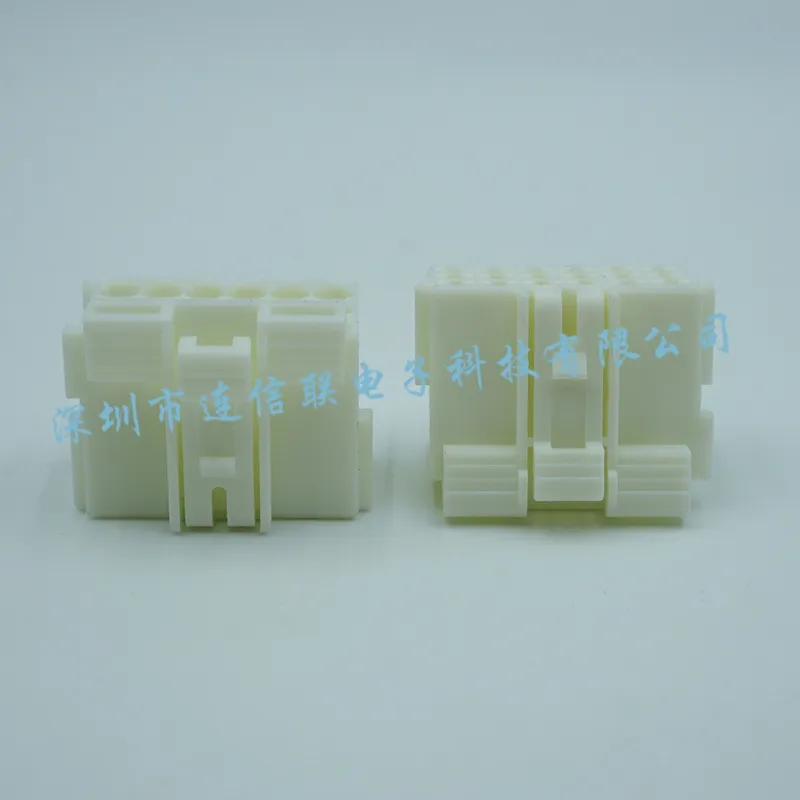

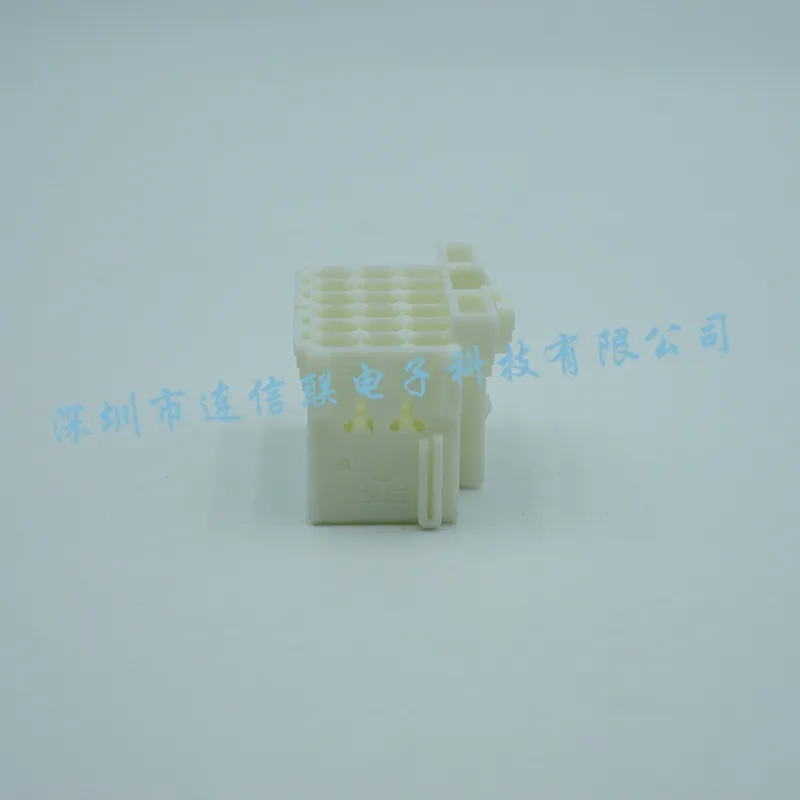

2137358-2
2137358-2 是 TE Connectivity 的 Automotive Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity
制造商
TE Connectivity
产品类别
Automotive Housings
技术参数
| 品牌归属地 | 国际 |
|---|---|
| 描述 | AMP-MCP 2.8mm RECEPTACLE HOUSING , 18POS |
| 零件编号 | 2137358-2 |
| Nominal Voltage Architecture ( V) | 12 |
| Connector & Housing Type | Housing for Female Terminals |
| Number Of Positions | 18 |
| Sealable | No |
| Operating Temperature Range | -40 – 120 °C [ -40 – 248 °F ] |
| Product Features & Characteristics | Select All |
| Connector Shape | Rectangular |
| Primary Locking Feature | Locking Lance |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Rows | 3 |
| Primary Product Color | Natural |
| Connector & Keying Code | B |
| Contact Size | 2.8mm |
| Mating Tab Width | 2.8 mm [ .11 in ] |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Housing Material | Glass-Filled PBT |
| Centerline ( Pitch) | 5 mm [ .197 in ] |
| Operating Temperature ( Max) | 120 °C [ 248 °F ] |
| Circuit Application | Power |
| U L Flammability Rating | UL 94HB |
| Connector Position Assurance Capable | No |
采购与包装
| 最小订购量 | 0 |
|---|---|
| 订购倍数 | 0 |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
