产品资料

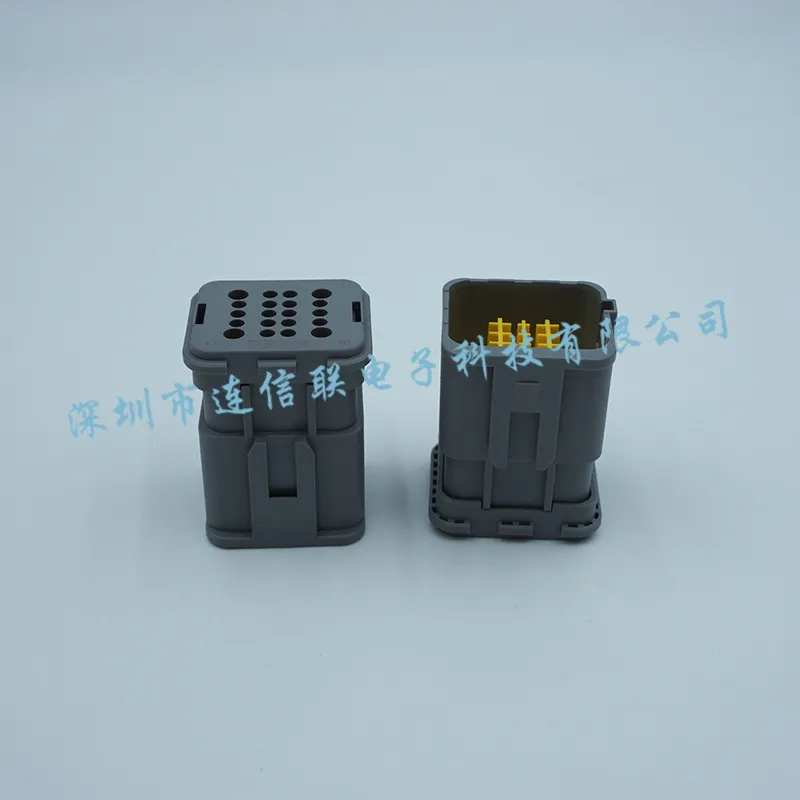

2350891-2
2350891-2 是 TE Connectivity AMP Connectors 的 Automotive Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity AMP Connectors
制造商
TE Connectivity AMP Connectors
产品类别
Automotive Housings
技术参数
| Standard Pack Qty | 1 |
|---|---|
| Connector Type | Receptacle |
| Contact Type | Tab |
| Number of Positions | 20 |
| Pitch | - |
| Number of Rows | 5 |
| Row Spacing | - |
| Mounting Type | Panel Mount |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Color | - |
| Features | Cap (Cover), Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -40°C ~ 125°C |
| Nominal Voltage Architecture ( V) | 12 | 24 | 48 | 60 |
| Connector & Housing Type | Housing for Male Terminals |
| Number Of Positions | 20 |
| Sealable | Yes |
| Operating Temperature Range | -40 – 125 °C [ -40 – 257 °F ] |
| Product Features & Characteristics | Select All |
| Mixed & Hybrid Connector | Yes |
| Connector Shape | Rectangular |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Rows | 5 |
| Primary Product Color | Gray |
| Connector & Keying Code | B |
| Contact Type | Pin |
| Contact Size | Size 16 | Size 20 |
| Mating Pin Diameter (Mm) | 1 | 1.55 |
| Mating Pin Diameter (In) | .039 | .061 |
| Contact Current Rating ( Max) ( A) | 13 |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Centerline ( Pitch) | 3.5 mm [ .138 in ] |
| Operating Temperature ( Max) | 125 °C [ 257 °F ] |
| Circuit Application | Power |
| Connector Position Assurance Capable | No |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| RoHS状态 | ROHS3 Compliant |
|---|---|
| REACH状态 | REACH Affected |
| 湿敏等级 | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS编码 | 8538.90.6000 |
| REACH-SVHC | Decamethylcyclopentasiloxane [D5] (541-02-6)、Dodecamethylcyclohexasiloxane [D6] (540-97-6)、Octamethylcyclotetrasiloxane [D4] (556-67-2) |
| TARIC | 8547200090 |
| USHTS | 8538906000 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
