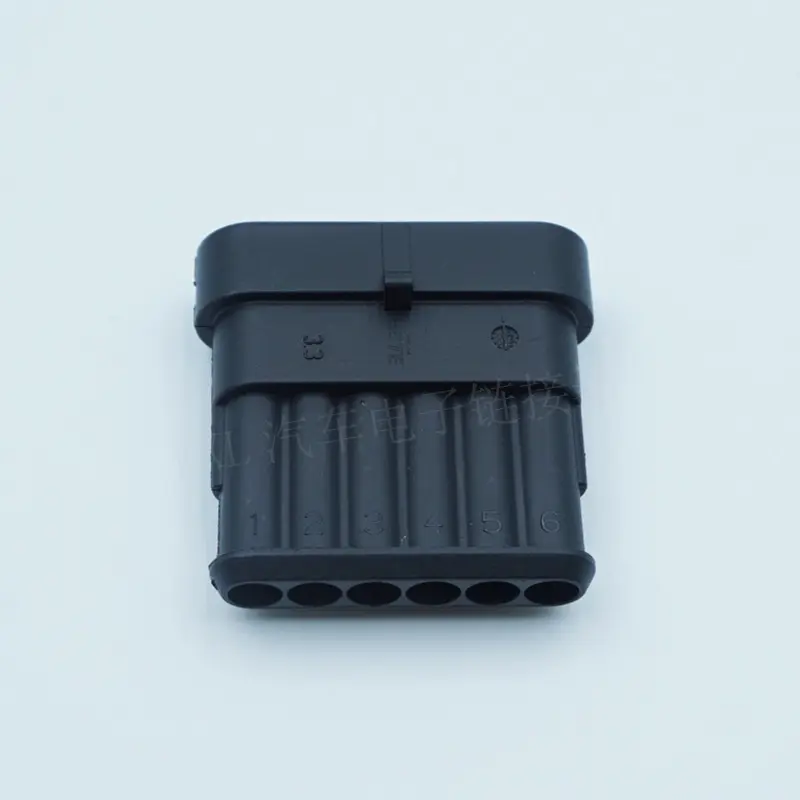

282108-1
282108-1 是 TE Connectivity 的 Automotive Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity
制造商
TE Connectivity
产品类别
Automotive Housings
技术参数
| Standard Pack Qty | 550 |
|---|---|
| 单位重量（kg） | 0.01 |
| Nominal Voltage Architecture ( V) | 12 | 24 | 48 |
| Connector & Housing Type | Housing for Male Terminals |
| Number Of Positions | 6 |
| Sealable | No |
| Operating Temperature Range | -40 – 125 °C [ -40 – 257 °F ] |
| Product Features & Characteristics | Select All |
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Rows | 1 |
| Operating Voltage ( V D C) | 24 |
| Cable Exit Angle (°) | 180 |
| Primary Product Color | Black |
| Contact Type | Tab |
| Contact Size | 1.5mm |
| Mating Tab Width | 1.5 mm [ .059 in ] |
| Contact Current Rating ( Max) ( A) | 14 |
| Mating Alignment | With |
| Mating Alignment Type | Polarizing Slot |
| Terminal Position Assurance | No |
| Strain Relief | Without |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Housing Material | PA 6.6 GF |
| Centerline ( Pitch) | 6 mm [ .24 in ] |
| Connector Height | 13.8 mm [ .54 in ] |
| Product Length | 43.8 mm [ 1.72 in ] |
| Product Width | 42 mm [ 1.65 in ] |
| Operating Temperature ( Max) | 125 °C [ 257 °F ] |
| Circuit Application | Power |
| I P Rating | IP67 | IPX6K | IPX9K |
| Packaging Method | Box |
| Packaging Quantity | 550 |
| Serviceable | No |
| Connector Position Assurance Capable | No |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
合规信息
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8538909090 |
| USHTS | 8538908180 |
| JPHTS | 853890000 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Italy |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
