产品资料

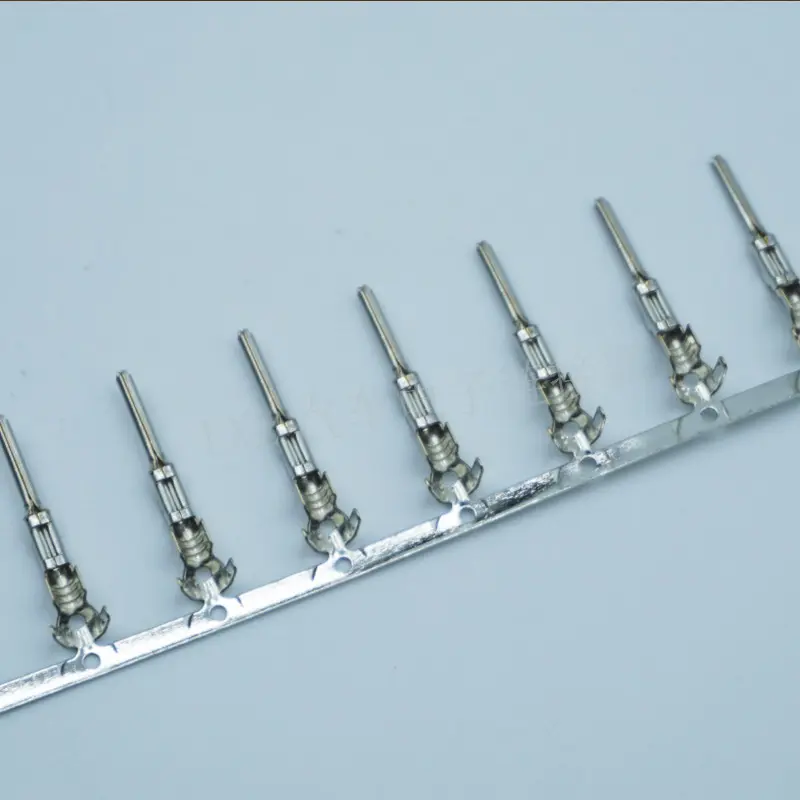

282109-1
282109-1 是 TE Connectivity / AMP 的 Automotive Terminals产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity / AMP
制造商
TE Connectivity / AMP
产品类别
Automotive Terminals
技术参数
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 4000 |
| 单位重量（kg） | 0.000293 |
| Terminal Type | Tab |
| Wire Size ( A W G) | 18 – 15 |
| Wire Size (Mm²) | .75 – 1.5 |
| Mating Tab Width | 1.5 mm [ .059 in ] |
| Interface Plating | Tin (Sn) |
| Product Features & Characteristics | Select All |
| Receptacle Style | 180° |
| Primary Locking Feature | Clean Body |
| Sealable | Yes |
| Terminal Seal Type | Single Wire Seal (SWS) |
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.5mm |
| Crimp Type | F-Crimp |
| Typical Current Rating ( A) | 14 |
| Mating Tab Thickness | .8 mm [ .031 in ] |
| Termination Method To Wire & Cable | Crimp |
| Product Terminates To | Wire |
| Compatible Insulation Diameter Range | 1.7 – 2.4 mm [ .071 – .13 in ] |
| Wire Size Search (Mm²) | .75 | 1 | 1.25 | 1.5 |
| Wire Size Search ( A W G) | 15 | 16 | 17 | 18 |
| Tab Length | 22.7 mm [ .89 in ] |
| Insulation Option | Uninsulated |
| Operating Temperature ( Max) | 125 °C [ 257 °F ] |
| Operating Temperature Range | -40 – 125 °C [ -40 – 257 °F ] |
| Compatible With Wire Base Material | Copper |
| Packaging Quantity | 4000 |
| Packaging Method | Reel |
| Terminal Transmits | 0 – 24 A (Low Power) |
采购与包装
| 最小订购量 | 4000 |
|---|---|
| 订购倍数 | 4000 |
| 替代包装型号 | 183024-1、282109-1 (Cut Strip)、282109-1 (Mouser Reel) |
合规信息
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| MXHTS | 8536902800 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Brazil |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
