926521-2

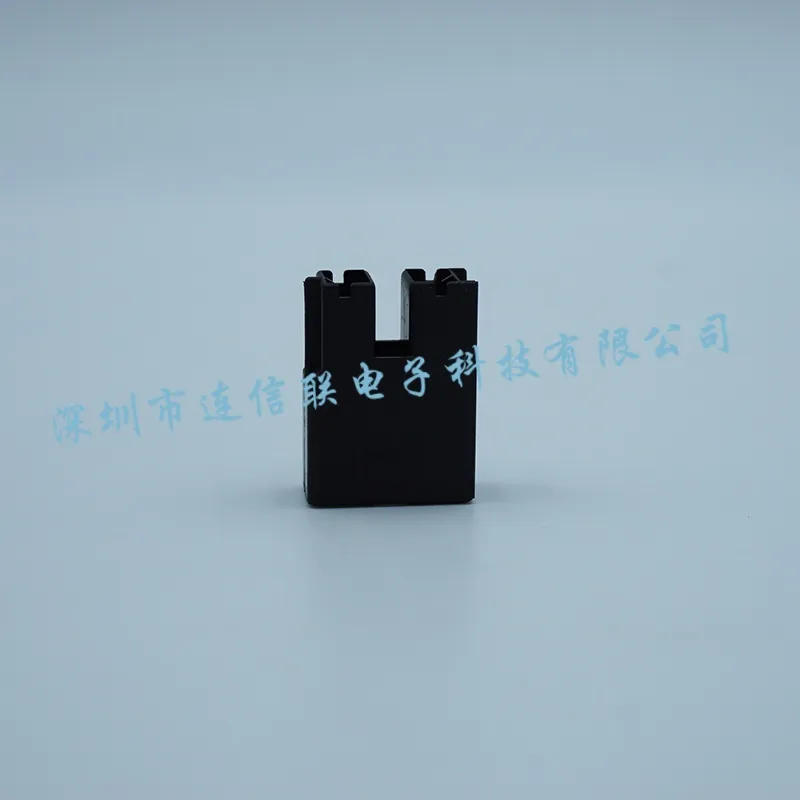

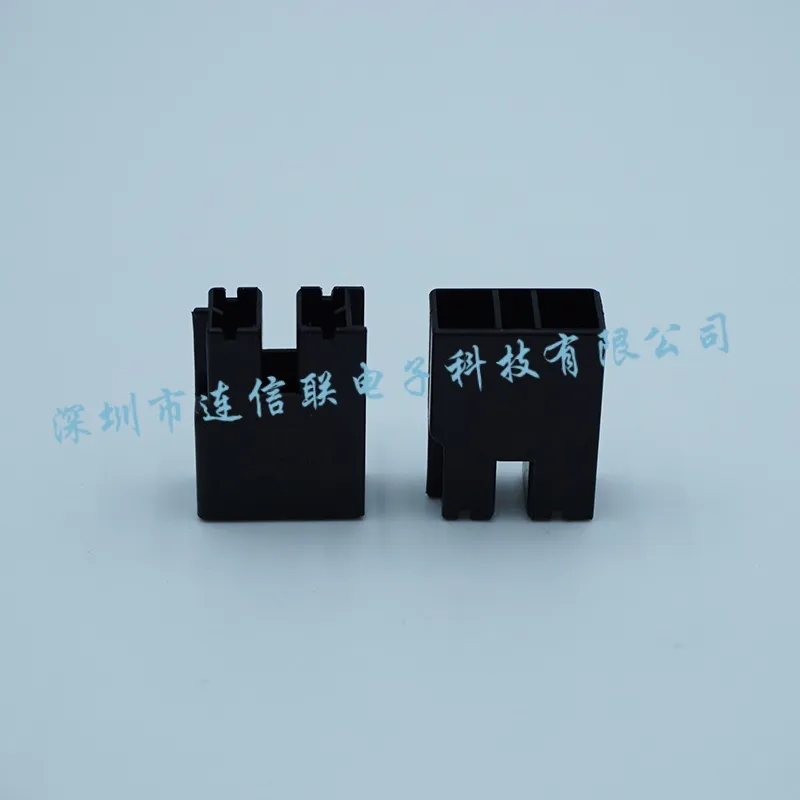

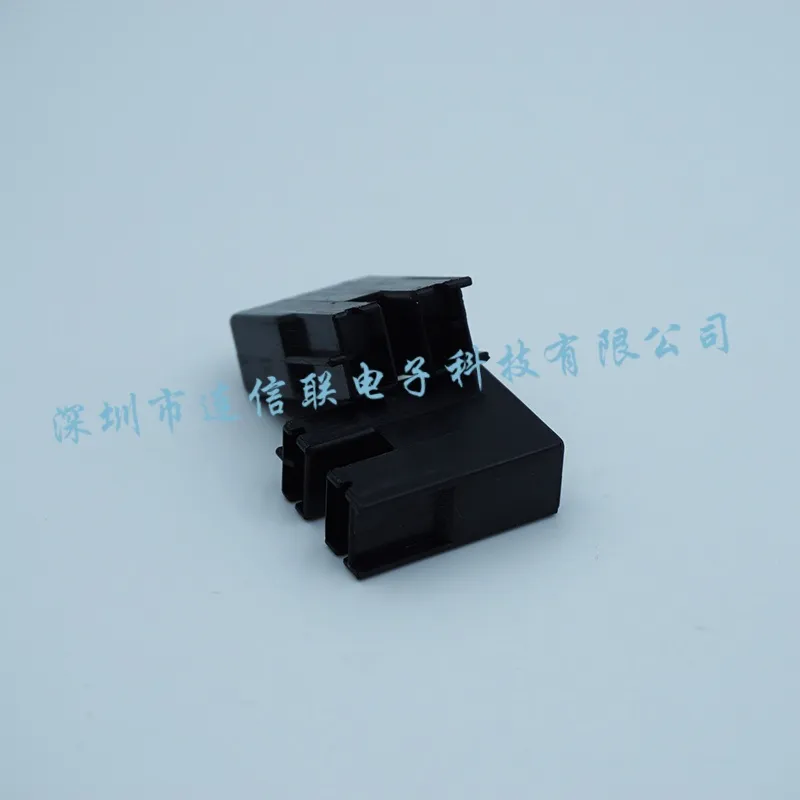

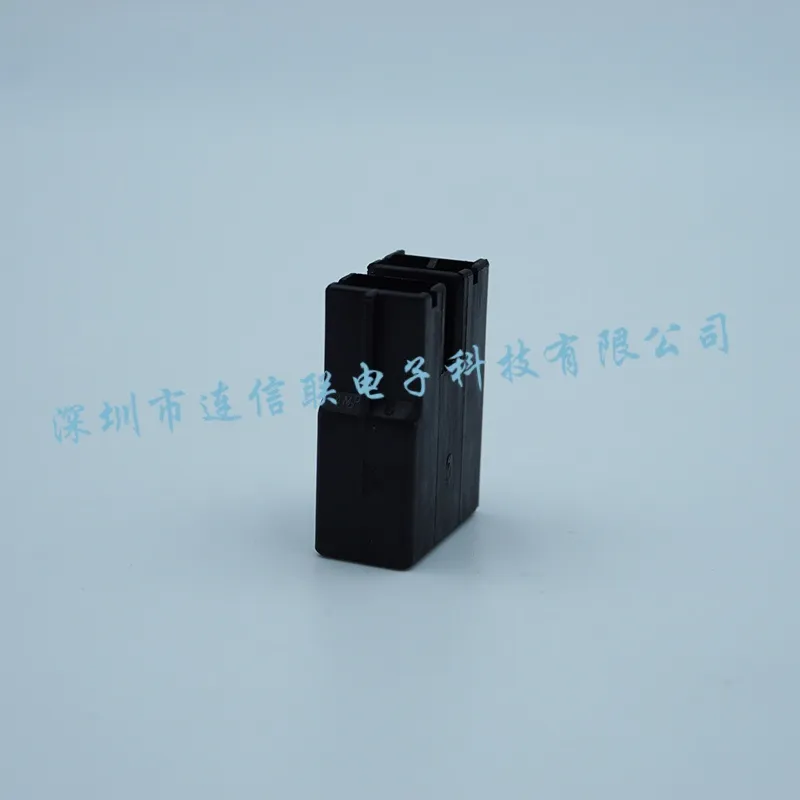

926521-2 是 TE Connectivity 的 Crimp Terminal Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity
制造商
TE Connectivity
产品类别
Crimp Terminal Housings
技术参数
| Packaging | Bulk |
|---|---|
| Standard Pack Qty | 1300 |
| 单位重量（kg） | 0.001407 |
| Terminal Type | Receptacle |
| Connector & Housing Type | Receptacle |
| Number Of Positions | 2 |
| Terminal Orientation | Straight |
| U L Flammability Rating | UL 94V-2 |
| Product Features & Characteristics | Select All |
| Connector System | Wire-to-Board | Wire-to-Wire |
| Sealable | No |
| Connector & Contact Terminates To | Wire & Cable |
| Primary Product Color | Black |
| Contact Mating Retention | Without |
| Mating Alignment Type | Polarization |
| Mating Alignment | With |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Housing Material | Polyamide |
| Centerline ( Pitch) | 10 mm [ .393 in ] |
| Operating Temperature Range | -40 – 105 °C [ -40 – 221 °F ] |
| Packaging Quantity | 1300 |
| Packaging Method | Carton |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8536900020 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| KRHTS | 8536909010 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Italy |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
