产品技术规格
| 1 | 4.053 |
|---|---|
| 1250 | 2.497 |
| 1734-1018-ND | Bulk |
| 20 | 3.86 |
| 250 | 2.568 |
| 2500 | 2.426 |
| 3D_CVM_CVM_DT04-2P_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_DT04-2P&DocType=Customer%20View%20Model&DocLang=3D&DocFormat=pdf&PartCntxt=DT04-2P |
| 5000 | 2.378 |
| Assembly Country of Origin | Not available |
| batch | ZK |
| Blank Cavity Position | 0 |
| BRHTS | 85366990 |
| Cable Exit Angle (°) | 180 |
| CAHTS | 8536690090 |
| Centerline (Pitch) | 5.46 mm [ .215 in ] |
| Circuit Application | Power |
| CNHTS | 8547200000 |
| Color | Gray |
| Compatible Insulation Diameter Range | 2.23 – 3.68 mm [ .088 – .145 in ] |
| Compatible With Agency/Standards Products | SAE J2030 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Height | 17.02 mm [ .67 in ] |
| Connector & Housing Type | Housing for Male Terminals |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Connector Position Assurance Capable | No |
| Connector Shape | Rectangular |
| Connector System | Wire-to-Wire |
| Connector Type | Receptacle |
| Contact Current Rating (Max) (A) | 13 |
| Country of Diffusion | Mexico |
| Country of Origin | Mexico |
| Customer Drawing | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=DT04-2P-XXXX&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| DigiKey编号 | 1734-1018-ND |
| ECCN | EAR99 |
| ENG_AAD_UL_CERT_E28476_20090527_C1_G2.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=UL_CERT_E28476_20090527_C1&DocType=Agency%20Approval%20Document&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| ENG_CS_DT_INLINE_CONNECTORS_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=DT_INLINE_CONNECTORS&DocType=Catalog%20Section&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| ENG_CS_TS_ICT_T_C_CAT_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=TS_ICT_T_C_CAT&DocType=Catalog%20Section&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| ENG_CVM_CVM_DT04-2P_A.2d_dxf.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_DT04-2P&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=DT04-2P |
| ENG_CVM_CVM_DT04-2P_A.3d_igs.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_DT04-2P&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=DT04-2P |
| ENG_CVM_CVM_DT04-2P_A.3d_stp.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_DT04-2P&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=DT04-2P |
| ENG_DS_1-1773950-7_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773950-7&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| ENG_DS_1-1773962-8_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773962-8&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| ENG_SS_108-151009_E.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-151009&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| ENG_SS_114-151009_C3.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=114-151009&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| ENG_SS_501-151032_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-151032&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| ENG_SS_502-151009_C.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=502-151009&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| ENG_SS_502-151099_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=502-151099&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| ENG_SS_503-151065_B.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=503-151065&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| Fastening Type | Latch Holder |
| Features | IP68, IP6K9K |
| Housing Material | PA GF |
| HTSUS编码 | 8538.90.6000 |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| 防护等级 | IP68 | IP6K9K |
| JPHTS | 853669000 |
| KRHTS | 8536699000 |
| Mating Alignment | With |
| Mating Alignment Type | Polarization |
| Mating Pin Diameter | 1.59 mm [ .063 in ] |
| Mixed & Hybrid Connector | No |
| MXHTS | 8536699999 |
| Nominal Voltage Architecture (V) | 12 | 24 | 48 |
| Number of Rows | 1 |
| 工作温度 | -55°C ~ 125°C |
| 工作温度（Max） | 125 °C [ 257 °F ] |
| 工作温度 | -55 – 125 °C [ -67 – 257 °F ] |
| Operating Voltage (VAC) | 250 |
| Operating Voltage (VDC) | 250 |
| Packaging Method | Box |
| Packaging Quantity | 1000 |
| Primary Locking Feature | Integrated in Housing |
| Primary Product Color | Gray |
| Product Features & Characteristics | Select All |
| Product Length | 43.38 mm [ 1.708 in ] |
| Product Width | 17.15 mm [ .675 in ] |
| REACH-SVHC | Octamethylcyclotetrasiloxane [D4] (556-67-2)、Dodecamethylcyclohexasiloxane [D6] (540-97-6)、Decamethylcyclopentasiloxane [D5] (541-02-6) |
| REACH状态 | REACH Unaffected |
| Row Spacing | - |
| Sealable | Yes |
| Serviceable | Yes |
| Standard Pack Qty | 1 |
| Strain Relief | Add By Accessory |
| TARIC | 8536699099 |
| Terminal Position Assurance | Yes |
| TE内部描述 | REC, 2P, GRY, N |
| TE内部编号 | DT04-2P |
| UL Flammability Rating | 12mm Flame Test per Standard UL-94 |
| USHTS | 8536698000 |
| 主体颜色 | 灰色 |
| 主要锁定特性 | 外壳集成 |
| 交期 | 91 Days |
| 产品别名 | 8202612040 |

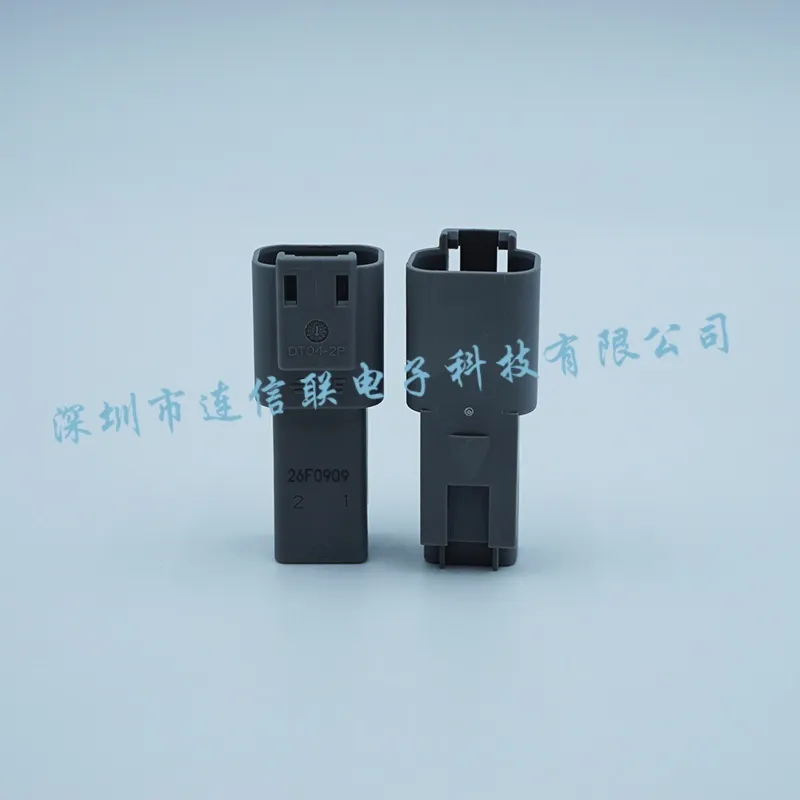

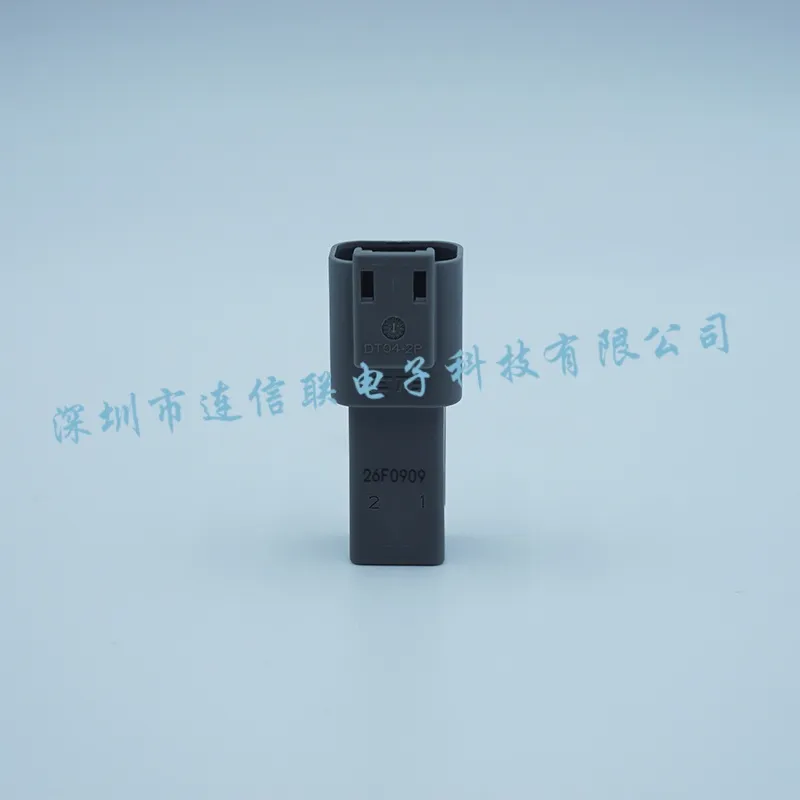

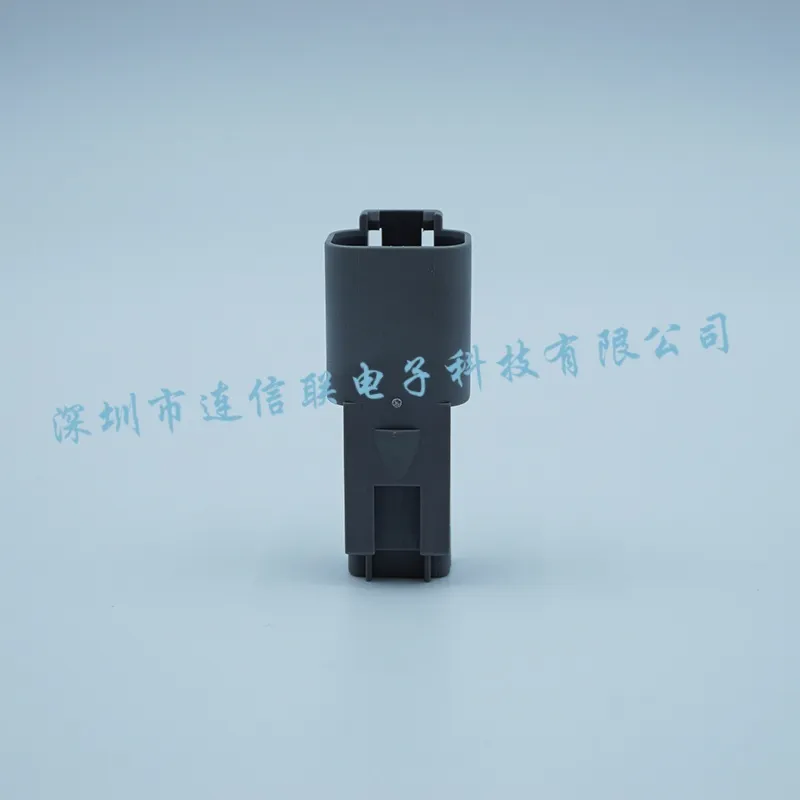

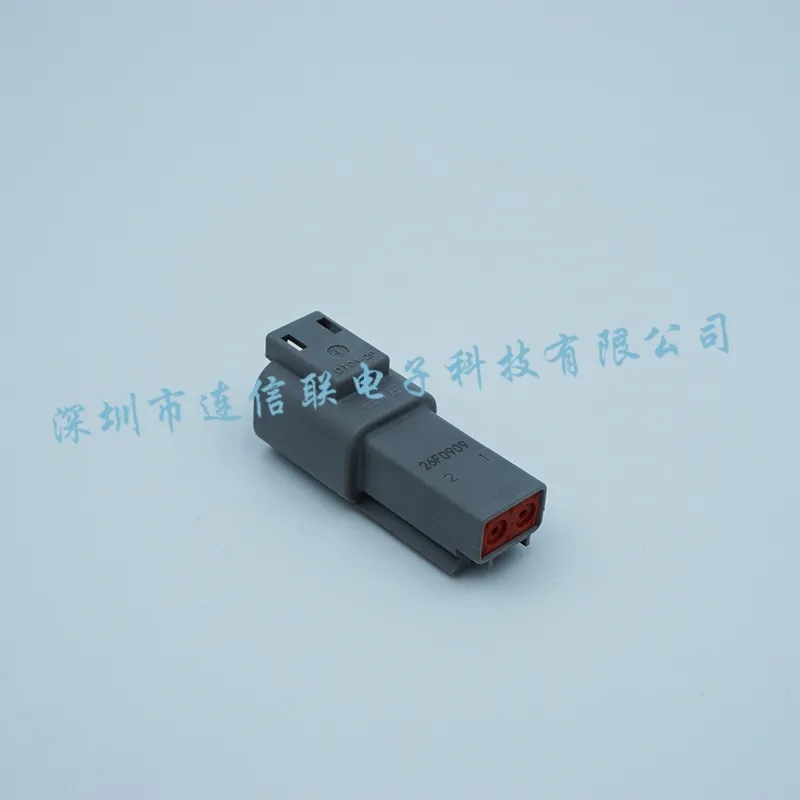

| 产品名称 | DT04-2P (TE Connectivity) |
| 产品宽度 | .675 in |
| 产品描述 | Housing for Male Terminals, Wire-to-Wire, 2 Position, .215 in [5.46 mm] Centerline, Sealable, Gray, Wire & Cable, Power & Signal, DEUTSCH DT |
| 产品状态 | Id：0；Status：Active |
| 产品长度 | 1.708 in |
| 产品间距 | 5.46mm |
| 产地 | 中国/CHN |
| 公端/母端 | 公端 |
| 制造商交期（周） | 13 |
| 包装方式 | 盒 |
| 单位重量（kg） | 0.004 |
| 参考单价（USD） | 0.67 |
| 可密封 | 是 |
| 可用库存 | 75266 |
| 可维修 | 是 |
| 品名 | 塑壳 |
| 品牌归属地 | 国际 |
| 基本分类 | 连接器 |
| 外壳材料 | PA GF |
| 官方产品图片1 | https://www.te.com/content/dam/te-com/catalog/part/000/DT0/42P/DT04-2P-t1.jpg/jcr:content/renditions/product-details.png |
| 封装数量 | 1000 |
| 工作温度（Max） | 257 °F |
| 工作温度范围 | -67 – 257 °F |
| 工作电压 | 250 VDC |
| 年份批次 | 202607 |
| 应力消除 | 按附件添加 |
| 排数 | 1 |
| 接合对准 | 带有 |
| 接合对准类型 | 极化 |
| 插片宽度 | .063 in |
| 数据手册 | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773962-8&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=DT04-2P |
| 方向 | 180° |
| 替代型号 | 952-0215-001（JiDC(济德)）、952-0215-001-1（JiDC(济德)）、AT04-2P（AMPHENOL） |
| 标称电压架构 | 12 V |
| 混合型连接器 | 否 |
| 湿敏等级 | Not Applicable |
| 电路应用 | 电源和信号 |
| 空白孔位 | 0 |
| 端子位置保证 | 是 |
| 端子大小 | 尺寸 16 |
| 端子额定电流(Max) | 13 A |
| 能够保证连接器位置 | 否 |
| 贸泽编号 | 571-DT04-2P |
| 连接器和端子端接到 | 电线和电缆 |
| 连接器形状 | 矩形 |
| 连接器系统 | 线到线 |
| 连接器高度 | .67 in |
| 适用的绝缘层直径范围 | .088 – .145 in |
| 针位数 | 2 |
| 防护等级 | IP68 |
| 阻燃等级 | UL94 |
| 安装风格 | Free Hanging (In-Line) |
| 包装 | Bulk |
| 芯数 | 2 |
| 系列 | DT |
| 端接方式 | Crimp |
相关产品信息
同品牌、系列或类别的相似产品（不代表兼容或可替代）
已核验询价信息
- 包装方式
- 盒
- 最小订购量
- 1
制造商及授权来源记录
产品资料
DT04-2P
DT04-2P 是 TE Connectivity Deutsch Connectors 的 Automotive Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity Deutsch Connectors
制造商
TE Connectivity Deutsch Connectors
产品类别
Automotive Housings
技术参数
| 主体颜色 | 灰色 |
|---|---|
| 产品间距 | 5.46mm |
| 公端/母端 | 公端 |
| 包装方式 | 盒 |
| 品牌归属地 | 国际 |
| 安装类型 | 电缆安装(自由悬挂) |
| 排数 | 1 |
| 方向 | 180° |
| 系列 | DT |
| 针位数 | 2 |
| 防护等级 | IP68 |
| 阻燃等级 | UL94 |
| TE内部编号 | DT04-2P |
| 主要锁定特性 | 外壳集成 |
| 产品别名 | 8202612040 |
| 产品宽度 | .675 in |
| 产品长度 | 1.708 in |
| 可密封 | 是 |
| 可维修 | 是 |
| 外壳材料 | PA GF |
| 封装数量 | 1000 |
| 工作温度(Max) | 257 °F |
| 工作温度范围 | -67 – 257 °F |
| 工作电压 | 250 VDC |
| 应力消除 | 按附件添加 |
| 接合对准 | 带有 |
| 接合对准类型 | 极化 |
| 插片宽度 | .063 in |
| 标称电压架构 | 12 V |
| 混合型连接器 | 否 |
| 电路应用 | 电源和信号 |
| 空白孔位 | 0 |
| 端子位置保证 | 是 |
| 端子大小 | 尺寸 16 |
| 端子额定电流(Max) | 13 A |
| 能够保证连接器位置 | 否 |
| 连接器和端子端接到 | 电线和电缆 |
| 连接器形状 | 矩形 |
| 连接器系统 | 线到线 |
| 连接器高度 | .67 in |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| RoHS状态 | ROHS3 Compliant |
|---|---|
| REACH状态 | REACH Unaffected |
| 湿敏等级 | Not Applicable |
| ECCN | EAR99 |
| HTSUS编码 | 8538.90.6000 |
| REACH-SVHC | Octamethylcyclotetrasiloxane [D4] (556-67-2)、Dodecamethylcyclohexasiloxane [D6] (540-97-6)、Decamethylcyclopentasiloxane [D5] (541-02-6) |
| CNHTS | 8547200000 |
| TARIC | 8536699099 |
| CAHTS | 8536690090 |
| USHTS | 8536698000 |
| JPHTS | 853669000 |
| KRHTS | 8536699000 |
| MXHTS | 8536699999 |
| BRHTS | 85366990 |
| Country of Origin | Mexico |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Mexico |
其他信息
| 产地 | 中国/CHN批量参考批次：202607 |
|---|---|
| 品名 | 塑壳 |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
