产品资料

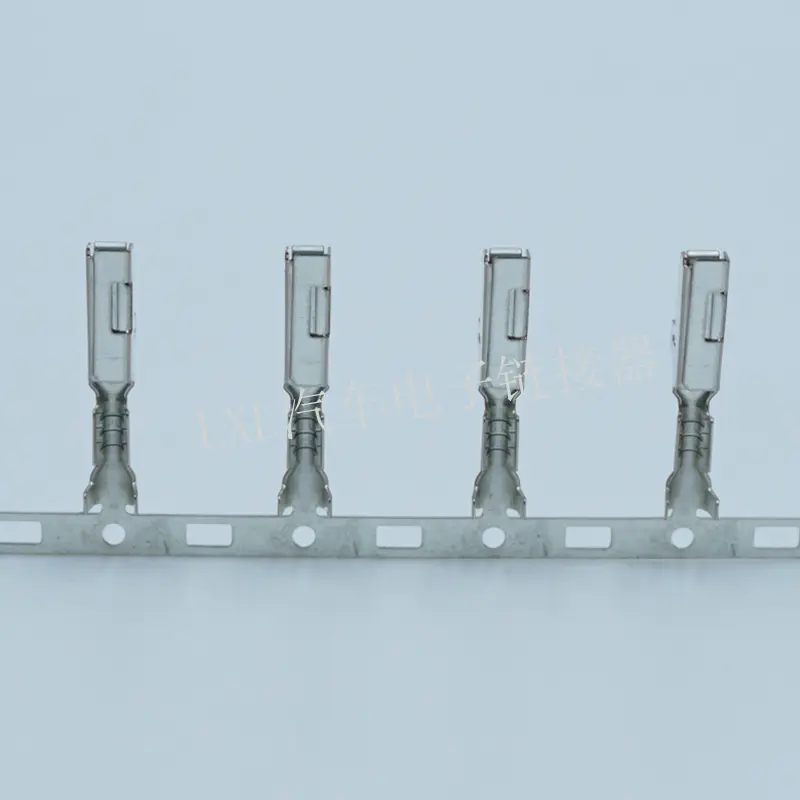

ST730675-3
本页汇总官方技术资料、贸易合规、包装和国内供货信息。
产品类别
Automotive
技术参数
| Part Number | ST730675-3 |
|---|---|
| Series | 090 II SERIES |
| Material Type | Phosphor Bronze |
| Dimensions | 17.2*3.0*2.5 |
| Plating | Pre-Tin |
| Sealed | NO |
| Tab Thickness(Mm) | 0 |
| Primary Locking Type | HSG Lance |
| Mating Tab Width(In) | .090 |
| Terminal Type | Straight-End |
| Wire Range | avs(cavs) 0.3-0.5, civus 0.35-0.5 |
| Insulation Range | 1.8-2.1 |
| Terminal Transmits( A) | 10 |
| Contact Resistance | 3mΩ MAX |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
