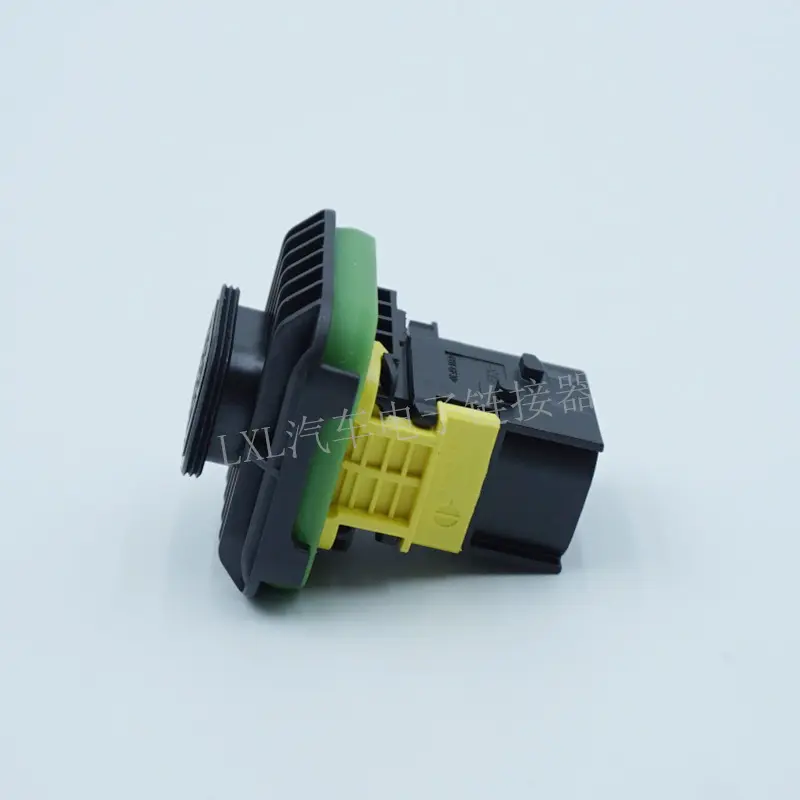

1-1564416-1

描述: Housing for Male Terminals, Wire-to-Wire, 8 Position, .157 in [4 mm] Centerline, Sealable, Black, Signal, Heavy Duty Sealed Connector Series
参数: TE内部编号: 1-1564416-1 行距: 6.91mm 针位数: 8 排数: 2

¥ 9.80

包装
- 个
- 箱

加入购物车

添加到心愿单

条款及条件细则
30 天退款保证
送货：2 至 3 个工作天

1-1564416-1

1-1564416-1 是 TE Connectivity / Raychem 的 Automotive Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。

品牌

TE Connectivity / Raychem

制造商

TE Connectivity / Raychem

产品类别

Automotive Housings

技术参数

Packaging	Bulk
Standard Pack Qty	250
单位重量（kg）	0.024659
Nominal Voltage Architecture ( V)	12 \| 24 \| 48
Connector & Housing Type	Housing for Male Terminals
Number Of Positions	8
Sealable	Yes
Operating Temperature Range	-40 – 140 °C [ -40 – 284 °F ]
Product Features & Characteristics	Select All
Connector Shape	Rectangular
Mixed & Hybrid Connector	No
Primary Locking Feature	On the Terminal
Connector System	Wire-to-Wire
Connector & Contact Terminates To	Wire & Cable
Number Of Rows	2
Operating Voltage ( V D C)	60
Cable Exit Angle (°)	90 \| 180
Primary Product Color	Black
Connector & Keying Code	A
Contact Type	Tab
Contact Size	1.6mm
Mating Tab Width	1.6 mm [ .063 in ]
Contact Current Rating ( Max) ( A)	10
Mating Alignment	With
Mating Alignment Type	Keyed
Terminal Position Assurance	No
Connector Mounting Type	Free-Hanging (In-Line)
Housing Material	PBT GF30
Centerline ( Pitch)	4 mm [ .157 in ]
Connector Height	39.8 mm [ 1.567 in ]
Product Length	42.5 mm [ 1.673 in ]
Product Width	47.05 mm [ 1.852 in ]
Row-To- Row Spacing	6.9 mm [ .272 in ]
Operating Temperature ( Max)	140 °C [ 284 °F ]
Circuit Application	Power
U L Flammability Rating	UL 94V-0
I P Rating	IP67
Packaging Method	Carton
Packaging Quantity	250
Serviceable	Yes

采购与包装

最小订购量	1
订购倍数	1

合规信息

CNHTS	8536901100
TARIC	8547200090
CAHTS	8538903900
USHTS	8538906000
JPHTS	853890000
MXHTS	8538900100
BRHTS	85389090
ECCN	EAR99
Country of Origin	Morocco
Assembly Country of Origin	Not available
Country of Diffusion	Not available
RoHS状态	RoHS Compliant

参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
