TE Connectivity 1705549-1 连接器

描述: RJ45 Connectors, RJ45, Single Port, 1 x 1, RJ Type Jacks & Plugs, Standard Connector Contact Density, Jack, Shielded, Cat 3, 8 Position
参数: TE内部编号: 1705549-1 端口数量: 8

价格请询价

包装
- 个
- 箱

添加到心愿单

销售与网站使用条款
价格、库存与交期以订单确认为准

香港标准配送：17:00 截单，处理 3 个工作日 + 运输 3 个工作日，周一至周五，免运费。查看配送政策

品牌：TE Connectivity 产品类别：RJ45 连接器

1705549-1

1705549-1 是 TE Connectivity / AMP 的 RJ45 Connectors产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。

品牌

TE Connectivity / AMP

制造商

TE Connectivity / AMP

产品类别

RJ45 Connectors

技术参数

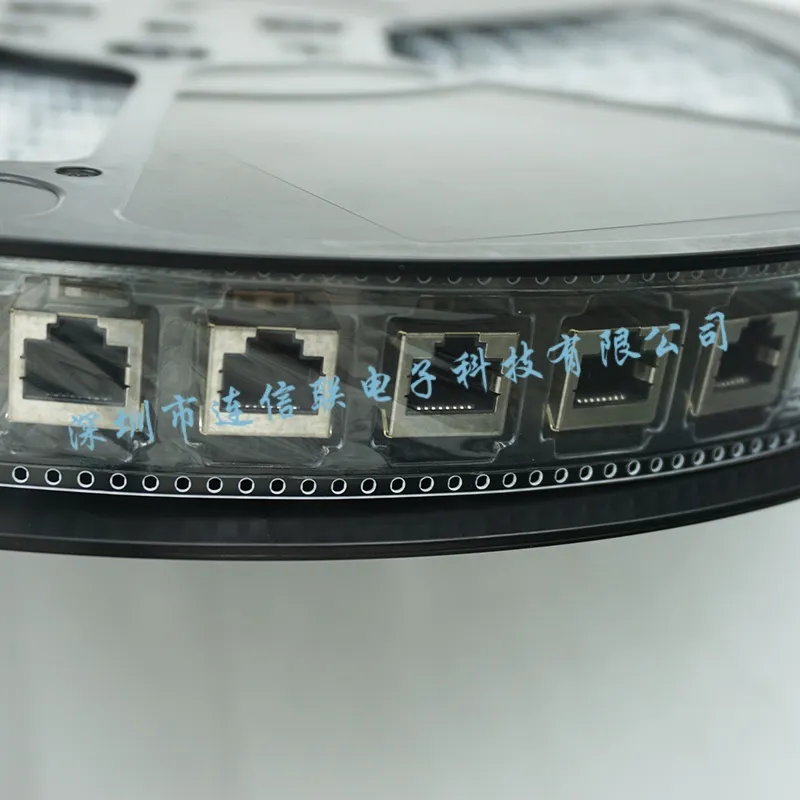

Packaging	Reel
Standard Pack Qty	250
单位重量（kg）	0.004
Modular Jack & Plug Interface Type	RJ45
Port Configuration	Single Port
Port Matrix Configuration	1 x 1
Modular Jacks & Plugs Products	RJ Type Jacks & Plugs
Connector Contact Density	Standard
Product Features & Characteristics	Select All
Connector Product Type	Connector Assembly
Modular Connector Style	Jack
Grounding Options	PCB Ground
Connector & Contact Terminates To	Printed Circuit Board
Number Of P C B Ground Tabs	2
Number Of Positions	8
Number Of Loaded Positions	8
P C B Mount Orientation	Vertical
Shield Material	Brass
Shield Plating Material	Tin
Connector Profile	Standard
P C B Contact Termination Area Plating Material	Tin
Contact Underplating Material	Nickel
Contact Current Rating ( Max) ( A)	1.5
Contact Mating Area Plating Material	Gold (Au)
Contact Base Material	Phosphor Bronze
Contact Mating Area Plating Material Thickness	.76 µm [ 30 µin ]
Termination Method To P C B	Surface Mount
Termination Post & Tail Length	13 mm [ .51 in ]
Panel Mount Feature	Without
Connector Mounting Type	Board Mount
Mating Entry Location	Top
Centerline ( Pitch)	1.02 mm [ .04 in ]
Housing Color	Black
Housing Material	High Temperature Thermoplastic
Connector Height	13.02 mm [ .512 in ]
Operating Temperature Range	-40 – 70 °C [ -40 – 158 °F ]
Indicator Type	No Indicator
Shielded	Yes
Circuit Application	Signal
U L Flammability Rating	UL 94V-0

采购与包装

最小订购量	1
订购倍数	1
工厂库存	0

合规信息

CNHTS	8536901100
TARIC	8536693000
CAHTS	8536690020
USHTS	8536694040
JPHTS	853669000
KRHTS	8536691000
MXHTS	8536699999
BRHTS	85366990
ECCN	EAR99
Country of Origin	China
Assembly Country of Origin	Not available
Country of Diffusion	Not available
RoHS状态	RoHS Compliant

参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
