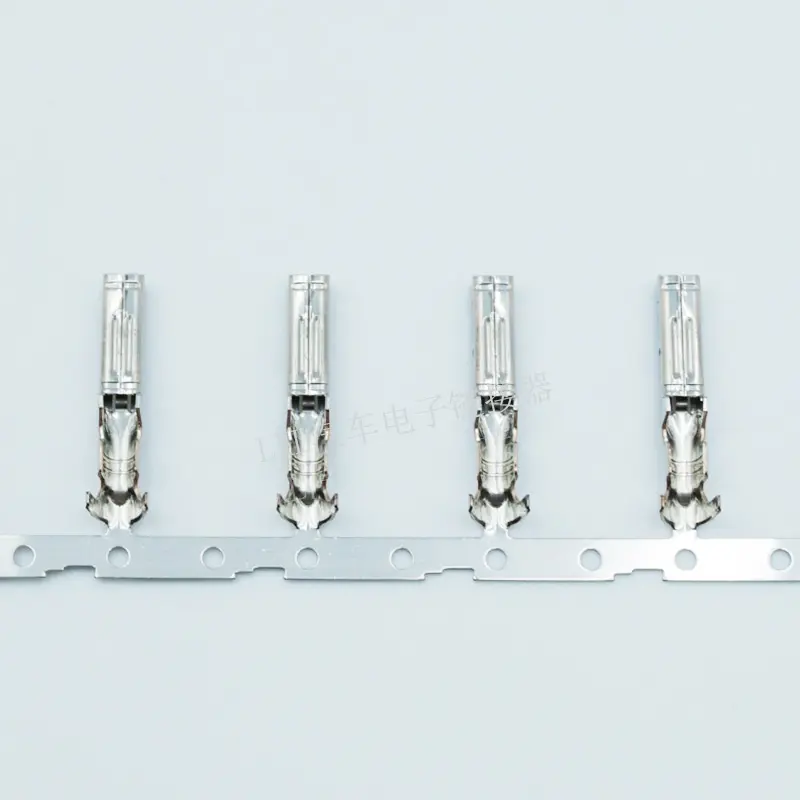

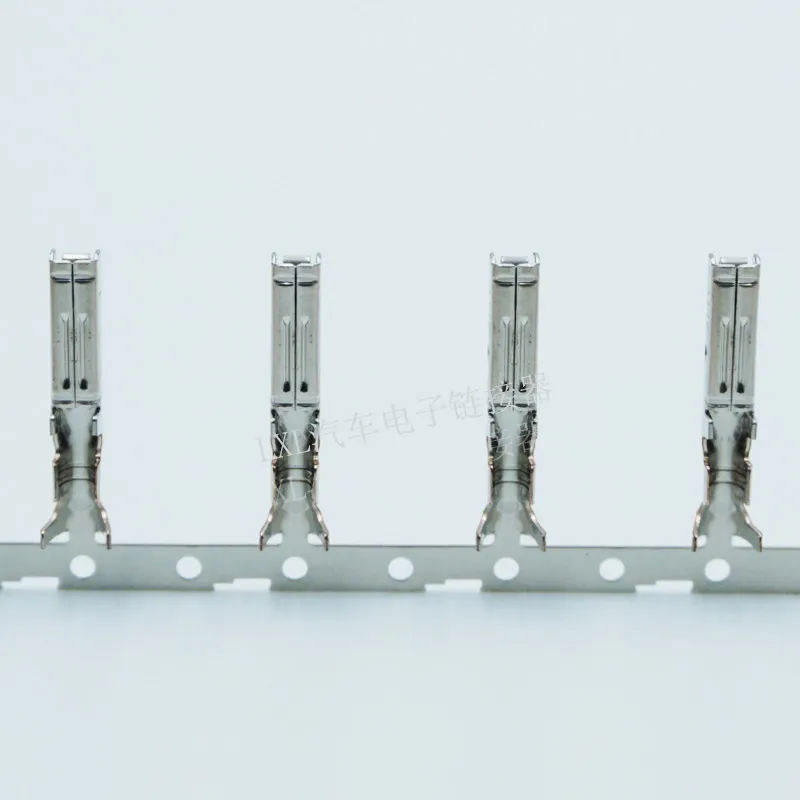

TE Connectivity 175196-2 连接器端子

描述: Connector Contact, Receptacle, Component-to-Wire, 20 – 16 AWG Wire Size, .5 – 1.42 mm² Wire Size, Gold, Reel & Box, Wire & Cable, Dynamic 3000 Series
参数: TE内部编号: 175196-2 公端/母端: 母端

¥ 0.66

包装
- 个
- 盘
- 箱

加入购物车

添加到心愿单

销售与网站使用条款
价格、库存与交期以订单确认为准

香港标准配送：17:00 截单，处理 3 个工作日 + 运输 3 个工作日，周一至周五，免运费。查看配送政策

产品技术规格

1	1.159
15000	0.773
20	1.104
3000	0.795
30000	0.751
3D_CVM_CVM_175196-2_AG.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_175196-2&DocType=Customer%20View%20Model&DocLang=3D&DocFormat=pdf&PartCntxt=175196-2
60000	0.736
A29225CT-ND	Cut Tape (CT)
A29225TR-ND	Tape & Reel (TR)
Assembly Country of Origin	Not available
Barrel Type	Open
batch	ZK
BRHTS	85389090
CAHTS	8538909020
Circuit Application	Power & Signal
CNHTS	8536901100
Compatible Insulation Diameter Range	1.8 – 2.8 mm [ .07 – .11 in ]
Compatible With Wire & Cable Type	Discrete Wire
Contact Base Material	Copper Alloy
Contact Current Rating (Max) (A)	15
Contact Finish	Gold or PdNi +Gold
Contact Finish Thickness	15.0µin (0.38µm)
Contact Length	17.8 mm [ .7 in ]
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	.38 µm [ 15 µin ]
Contact Orientation	Straight
Contact Type	Receptacle
Country of Diffusion	Not available
Country of Origin	China
Customer Drawing	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=175196&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=175196-2
DigiKey编号	A29225TR-ND
Discrete Wire Type	Stranded
ECCN	EAR99
ENG_AAD_TUV_CERT_R09151488_C1_C.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=TUV_CERT_R09151488_C1&DocType=Agency%20Approval%20Document&DocLang=English&DocFormat=pdf&PartCntxt=175196-2
ENG_AAD_TUV_CERT_R50093700_C1_B.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=TUV_CERT_R50093700_C1&DocType=Agency%20Approval%20Document&DocLang=English&DocFormat=pdf&PartCntxt=175196-2
ENG_CS_dynamic-d300-series-catalog_2606.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=dynamic-d300-series-catalog&DocType=Catalog%20Section&DocLang=English&DocFormat=pdf&PartCntxt=175196-2
ENG_CVM_CVM_175196-2_AG.2d_dxf.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_175196-2&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=175196-2
ENG_CVM_CVM_175196-2_AG.3d_igs.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_175196-2&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=175196-2
ENG_CVM_CVM_175196-2_AG.3d_stp.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_175196-2&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=175196-2
ENG_SS_108-5349_J11.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-5349&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=175196-2
ENG_SS_114-5148_M.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=114-5148&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=175196-2
ENG_SS_411-5726_B.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=411-5726&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=175196-2
HTSUS编码	8536.90.4000
JPHTS	853890000
JPN_SS_108-78285_A.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-78285&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=pdf&PartCntxt=175196-2
JPN_SS_108-78285_A.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-78285&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=tif&PartCntxt=175196-2
JPN_SS_411-78066_O.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=411-78066&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=pdf&PartCntxt=175196-2
JPN_SS_411-78066_O.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=411-78066&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=tif&PartCntxt=175196-2
JPN_SS_411-78287_A.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=411-78287&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=pdf&PartCntxt=175196-2
JPN_SS_411-78287_A.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=411-78287&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=tif&PartCntxt=175196-2
JPN_SS_501-5678_A.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-5678&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=pdf&PartCntxt=175196-2
JPN_SS_501-5678_A.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-5678&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=tif&PartCntxt=175196-2
JPN_SS_501-5682_A.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-5682&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=pdf&PartCntxt=175196-2
JPN_SS_501-5682_A.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-5682&DocType=Specification%20Or%20Standard&DocLang=Japanese&DocFormat=tif&PartCntxt=175196-2
Mating Tab Thickness	.64 mm [ .025 in ]
Mating Tab Width	2 mm [ .08 in ]
工作温度	-55 – 105 °C [ -67 – 221 °F ]
Operating Voltage (VAC)	250
Packaging Method	Reel & Box
Packaging Quantity	12000
Pin or Socket	Socket
Product Features & Characteristics	Select All
Product Terminates To	Wire & Cable
REACH状态	REACH not applicable
RoHS状态	RoHS Compliant
Sealable	No
Standard Pack Qty	3000
TARIC	8536699099
Termination Method to Wire & Cable	Crimp
TE内部描述	DYNAMIC D-3 REC CONT. L PdNi & AU 0.38
TE内部编号	175196-2
Type	-
UL Flammability Rating	UL 94V-0
USHTS	8536904000
Wire Contact Termination Area Plating Material	Gold
Wire Contact Termination Area Plating Thickness	.38 µm [ 15 µin ]
Wire Gauge	16-20 AWG
Wire Insulation Support	With
Wire Size (AWG)	20 – 16
Wire Size (mm²)	.5 – 1.42
交期	87 Days
产品名称	175196-2 (TE Connectivity)
产品描述	Connector Contact, Receptacle, Component-to-Wire, 20 – 16 AWG Wire Size, .5 – 1.42 mm² Wire Size, Gold, Reel & Box, Wire & Cable, Dynamic 3000 Series
产品状态	Id：0；Status：Active
产地	中国/CHN
公端/母端	母端
制造商交期（周）	13
包装方式	卷,盒
单位重量（kg）	0.0012
参考单价（USD）	0.48
可用库存	44221
品名	盘装端子
品牌归属地	国际
基本分类	连接器
子品牌	AMP
官方产品图片1	https://www.te.com/catalog/common/images/PartImages/pr175196.jpg
对接公端厚度	.025 in
对接公端宽度	.08 in
工作温度范围	-67 – 221 °F
年份批次	202605
数据手册	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=175196&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=175196-2
替代包装型号	175196-2 (Cut Strip)、175196-2 (Mouser Reel)、175218-2
替代型号	91T8-00007（JiDC(济德)）
湿敏等级	1 (Unlimited)
电路应用	电源和信号
线径	.5 – 1.42 mm²
触头镀层	金
贸泽编号	571-175196-2
连接器和端子端接到	电线和电缆
连接器系统	元件到导线
零件编号	175196-2
额定电流	15A
安装风格	线缆安装（压接式）
包装	Reel
系列	Dynamic D-3
端接方式	Crimp

品牌：TE Connectivity 产品类别：连接器触点产品系列：Dynamic 3000 Series
