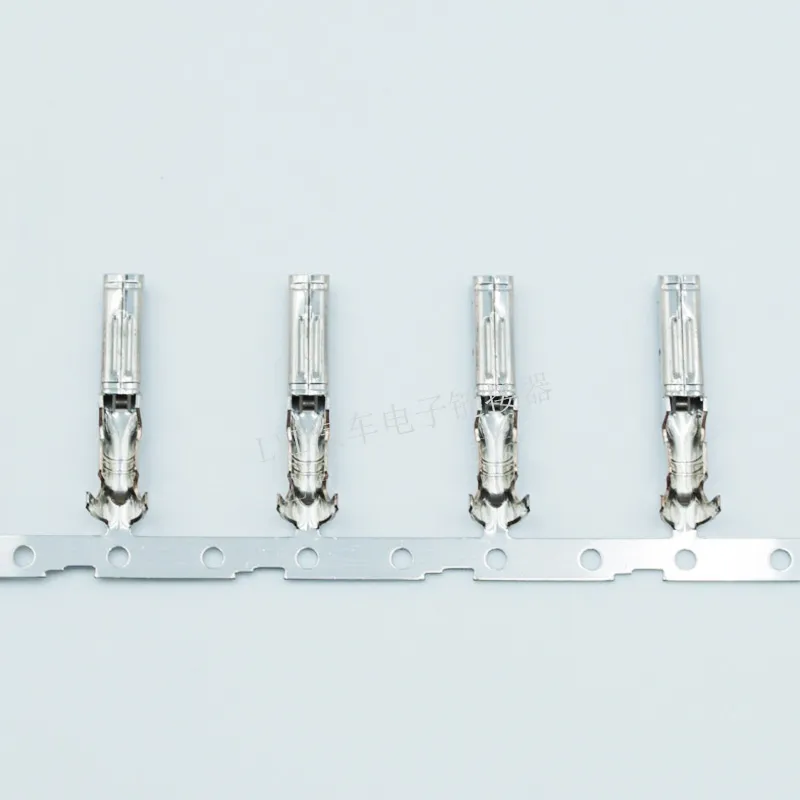

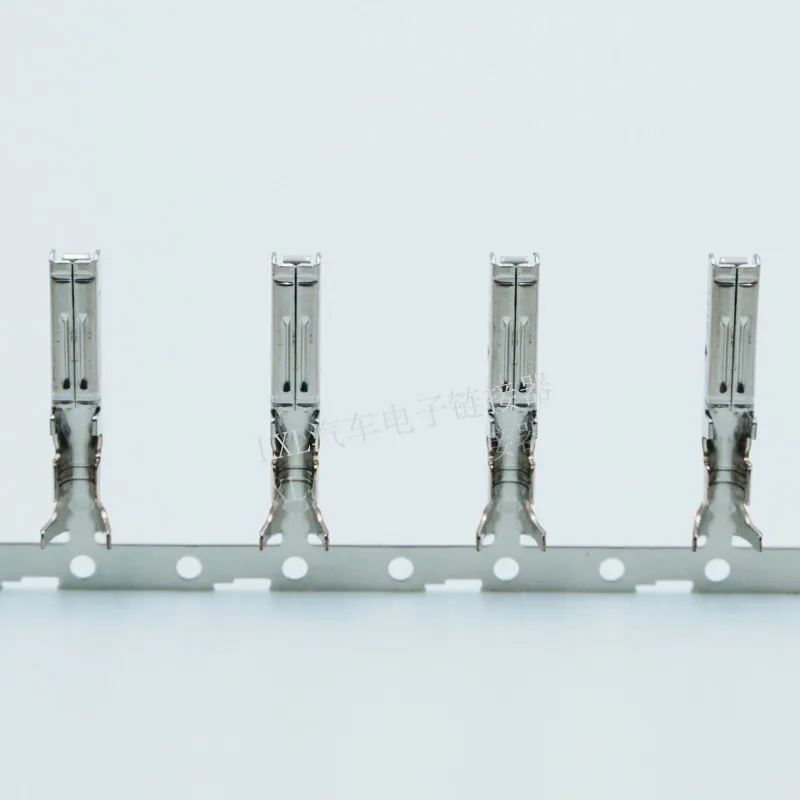

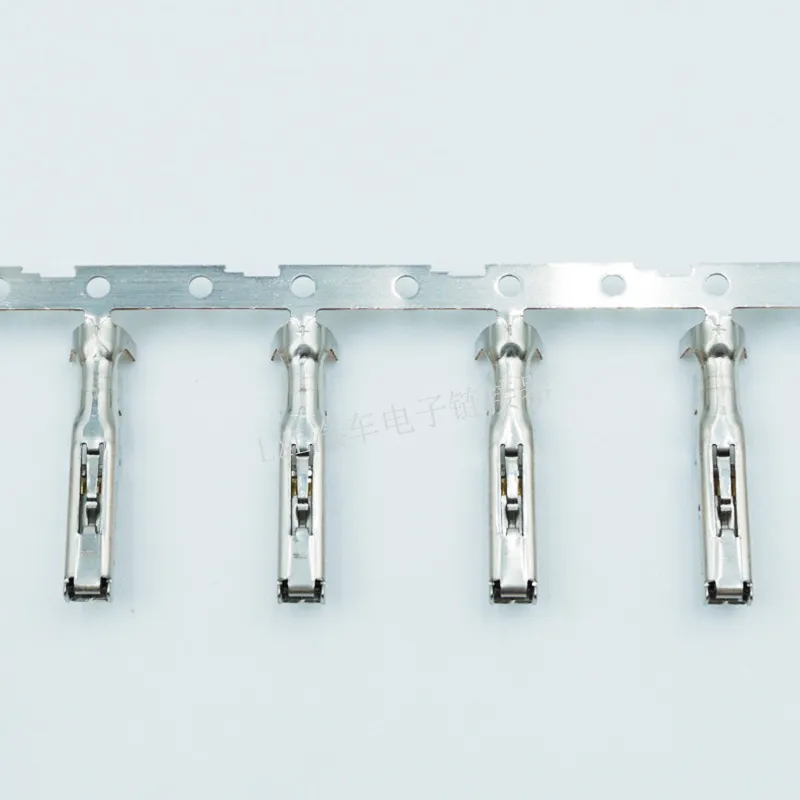

TE Connectivity 175196-2 Connector Terminal
175196-2 is a TE Connectivity Connector Contacts. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
175196-2
Brand
TE Connectivity
Category
Connector Contacts
Technical specifications

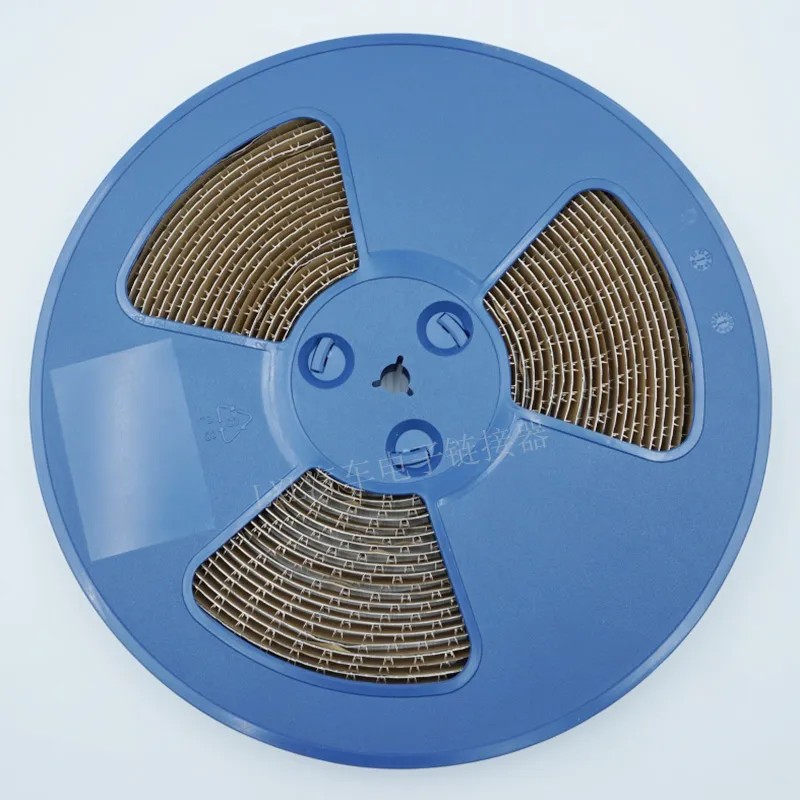

| Packaging | Reel |
|---|---|
| Standard Pack Qty | 3000 |
| Unit weight (kg) | 0.0012 |
| Contact Type | Receptacle |
| Contact Mating Area Plating Material | Gold (Au) |
| Wire Contact Termination Area Plating Material | Gold |
| Operating Voltage ( V A C) | 250 |
| Compatible With Wire & Cable Type | Discrete Wire |
| Product Features & Characteristics | Select All |
| Discrete Wire Type | Stranded |
| Sealable | No |
| Barrel Type | Open |
| Contact Length | 17.8 mm [ .7 in ] |
| Contact Base Material | Copper Alloy |
| Contact Current Rating ( Max) ( A) | 15 |
| Mating Tab Width | 2 mm [ .08 in ] |
| Mating Tab Thickness | .64 mm [ .025 in ] |
| Contact Mating Area Plating Material Thickness | .38 µm [ 15 µin ] |
| Wire Contact Termination Area Plating Thickness | .38 µm [ 15 µin ] |
| Contact Orientation | Straight |
| Termination Method To Wire & Cable | Crimp |
| Product Terminates To | Wire & Cable |
| Wire Insulation Support | With |
| Wire Size ( A W G) | 20 – 16 |
| Wire Size (Mm²) | .5 – 1.42 |
| Compatible Insulation Diameter Range | 1.8 – 2.8 mm [ .07 – .11 in ] |
| Operating Temperature Range | -55 – 105 °C [ -67 – 221 °F ] |
| Circuit Application | Power & Signal |
| U L Flammability Rating | UL 94V-0 |
| Packaging Quantity | 12000 |
| Packaging Method | Reel & Box |
Ordering and packaging
| Minimum order quantity | 3000 |
|---|---|
| Order multiple | 3000 |
| Factory stock | 0 |
| Suggested alternative | 571-175218-2 |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536699099 |
| CAHTS | 8538909020 |
| USHTS | 8536904000 |
| JPHTS | 853890000 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
