2005431-1
2005431-1 是 TE Connectivity / AMP 的 Automotive Housings产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
TE Connectivity / AMP
制造商
TE Connectivity / AMP
产品类别
Automotive Housings
技术参数
| Standard Pack Qty | 70 |
|---|---|
| 单位重量（kg） | 0.0087 |
| Nominal Voltage Architecture ( V) | 12 |
| Connector & Housing Type | Housing for Female Terminals |
| Number Of Positions | 34 |
| Sealable | No |
| Operating Temperature Range | -40 – 105 °C [ -40 – 221 °F ] |
| Product Features & Characteristics | Select All |
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | Yes |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Rows | 3 |
| Cable Exit Angle (°) | 180 |
| Primary Product Color | White |
| Contact Type | Receptacle |
| Contact Size | .63mm | 2.3mm |
| Mating Tab Width (Mm) | .63 | 2.3 |
| Mating Tab Width (In) | .024 | .09 |
| Mating Alignment | With |
| Mating Alignment Type | Polarizing Slot |
| Terminal Position Assurance | No |
| Strain Relief | Without |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Centerline ( Pitch) (Mm) | 2.2 | 4 |
| Centerline ( Pitch) (In) | .08 | .16 |
| Connector Height | 17.6 mm [ .69 in ] |
| Product Length | 21 mm [ .826 in ] |
| Product Width | 49.7 mm [ 1.95 in ] |
| Row-To- Row Spacing | 5 mm [ .196 in ] |
| Operating Temperature ( Max) | 105 °C [ 221 °F ] |
| Circuit Application | Power & Signal |

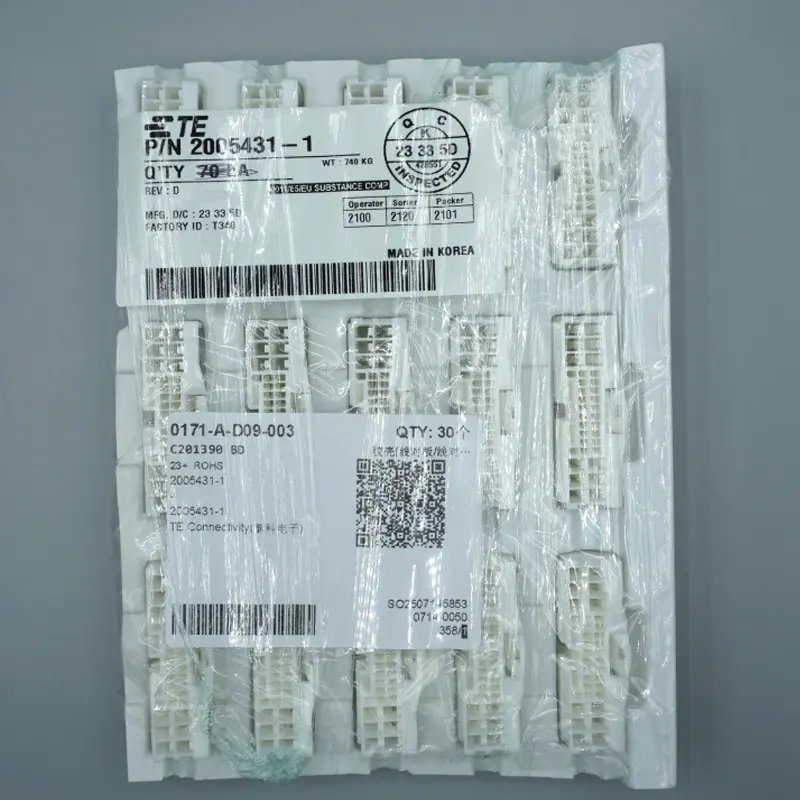

| Packaging Method | Tray |
| Packaging Quantity | 70 |
| Connector Position Assurance Capable | No |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| CNHTS | 8538900000 |
|---|---|
| CAHTS | 8544200000 |
| USHTS | 8538908180 |
| JPHTS | 853890000 |
| TARIC | 8544200090 |
| MXHTS | 85442099 |
| ECCN | EAR99 |
| Country of Origin | Korea, Republic of |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
