Product information

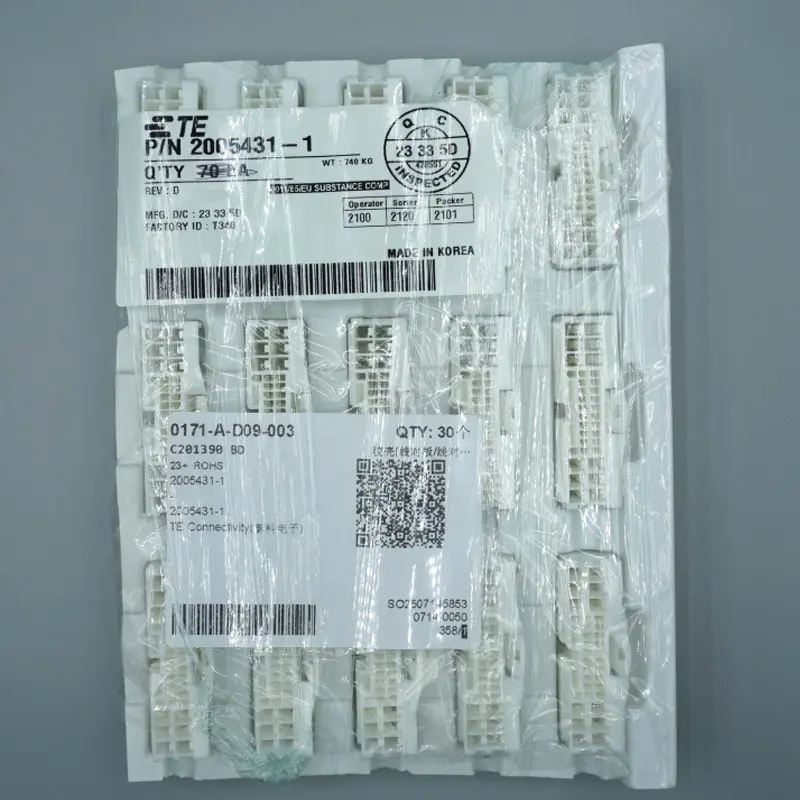

TE Connectivity 2005431-1 Connector Housing
2005431-1 is a TE Connectivity Automotive Housings. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
2005431-1
Brand
TE Connectivity
Category
Automotive Housings
Technical specifications
| Standard Pack Qty | 70 |
|---|---|
| Unit weight (kg) | 0.0087 |
| Nominal Voltage Architecture ( V) | 12 |
| Connector & Housing Type | Housing for Female Terminals |
| Number Of Positions | 34 |
| Sealable | No |
| Operating Temperature Range | -40 – 105 °C [ -40 – 221 °F ] |
| Product Features & Characteristics | Select All |
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | Yes |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Rows | 3 |
| Cable Exit Angle (°) | 180 |
| Primary Product Color | White |
| Contact Type | Receptacle |
| Contact Size | .63mm | 2.3mm |
| Mating Tab Width (Mm) | .63 | 2.3 |
| Mating Tab Width (In) | .024 | .09 |
| Mating Alignment | With |
| Mating Alignment Type | Polarizing Slot |
| Terminal Position Assurance | No |
| Strain Relief | Without |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Centerline ( Pitch) (Mm) | 2.2 | 4 |
| Centerline ( Pitch) (In) | .08 | .16 |
| Connector Height | 17.6 mm [ .69 in ] |
| Product Length | 21 mm [ .826 in ] |
| Product Width | 49.7 mm [ 1.95 in ] |
| Row-To- Row Spacing | 5 mm [ .196 in ] |
| Operating Temperature ( Max) | 105 °C [ 221 °F ] |
| Circuit Application | Power & Signal |
| Packaging Method | Tray |
| Packaging Quantity | 70 |
| Connector Position Assurance Capable | No |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| CNHTS | 8538900000 |
|---|---|
| CAHTS | 8544200000 |
| USHTS | 8538908180 |
| JPHTS | 853890000 |
| TARIC | 8544200090 |
| MXHTS | 85442099 |
| ECCN | EAR99 |
| Country of Origin | Korea, Republic of |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
