产品技术规格
| 应用领域 | Wire-to-Board、Wire-to-Wire |
|---|---|
| 1 | 0.412 |
| 12000 | 0.273 |
| 120000 | 0.258 |
| 20 | 0.392 |
| 240000 | 0.252 |
| 60000 | 0.265 |
| batch | N |
| China RoHS | Green Image per SJ/T 11365-2006 |
| Durability Mating Cycles Max | 30 |
| EU ELV | Not Relevant |
| EU RoHS | Compliant per EU 2015/863 |
| GADSL/IMDS | Compliant with Exemption 44 |
| Lead Free Process Capability | N/A |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Packaging Design Drawing | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/packagingdesigndrawing/457/45773/PK-45773-001-001.pdf |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.102µm |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| SAP型号 | 0457730001 |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.85mm max. |
| Wire Size Awg | 20、22、24 |
| Wire Size Mm | N/A |
| 一级应用 | Agricultural Machinery, Appliances |
| 二级应用 | Wire-to-Board Connectors, Power Connectors, Micro-Fit Connector System, Wire-to-Wire Connectors, Board-to-Board Connectors, FiT Family Power Connectors |
| 产品名称 | 45773-0001 (MOLEX) |
| 产品描述 | Micro-Fit 3.0 Crimp Terminal, Female, with Lubricant, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel |
| 产品状态 | Active |
| 产品系列 | Micro-Fit 3.0 |
| 产地 | 中国/CHN |
| 公端/母端 | 母端 |
| 净重 | 0.061/g |
| 包装方式 | 卷 |
| 包装类型 | Reel |
| 原产国 | CN,JP,US |
| 品名 | 端子 |
| 品牌归属地 | 国际 |
| 基本分类 | 连接器 |
| 导线绝缘直径 | 1.85mm max. |
| 应用规范 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/applicationspecificationspdf/430/43045/430450001-AS-000.pdf |
| 接口性别 | Female |
| 无铅 | N/A |
| 替代型号 | 91M8-00016（JiDC(济德)）、X3025TF-PSN（中国星坤(XKB CONNECTION)） |
| 最后更新日期 | 2026-06-12 |
| 最多次数耐用性(插拔次数) | 30 |
| 端接方法 | 压接 |
| 端接最薄镀层 | 0.102µm |
| 线径-mm² | N/A |
| 线规-AWG | 24 to 20 AWG |
| 终端电镀材料 | Tin |
| 触头镀层 | 锡 |
| 说明 | Micro-Fit 3.0 Crimp Terminal, Female, with Lubricant, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel |
| 配套系列 | 43025 - Micro-Fit 3.0 Dual Row Receptacle Housings、43645 - Micro-Fit 3.0 Single Row Receptacle Housings、44133 - Micro-Fit BMI Dual Row Receptacle Housings |
| 金属材料 | Phosphor Bronze |
| 销售图纸 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/457/45773/457730001_sd.pdf |
| 销售状态 | Standard - Molex |
| 镀层厚度 | 0.102μm |
| 额定电流 | 8.5A |
| 首次发布日期 | 2013-01-09 |
| 高清产品图片 | https://www.molex.com/content/dam/molex/molex-dot-com/products/manual/en-us/images/457/45773/0457730001_hires.jpg |
| 安装风格 | 压接 |
| 系列 | 45773、45773 |
| 重量 | 0.061/g |
产品资料

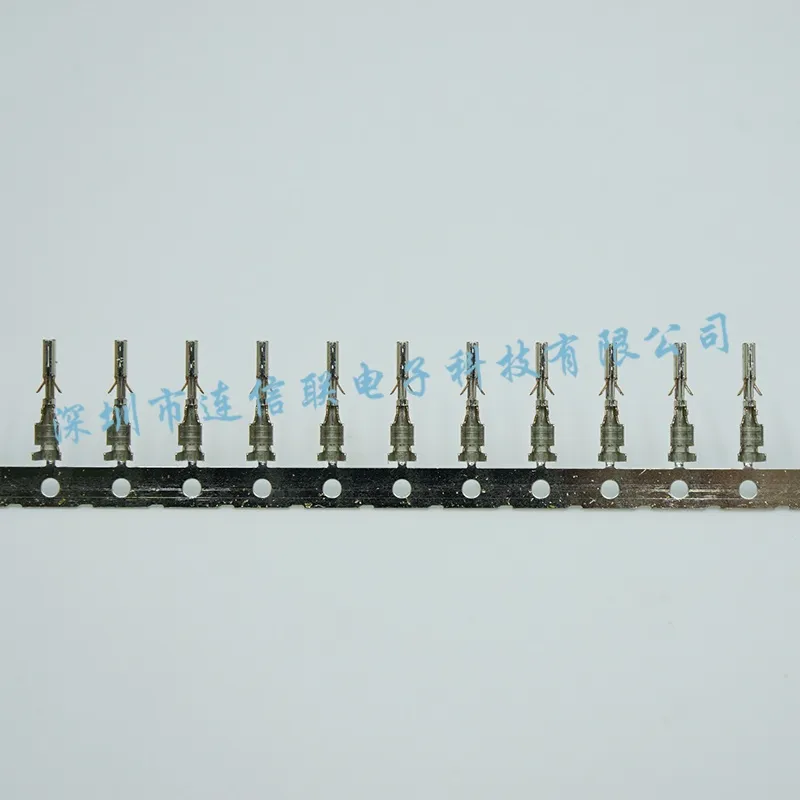

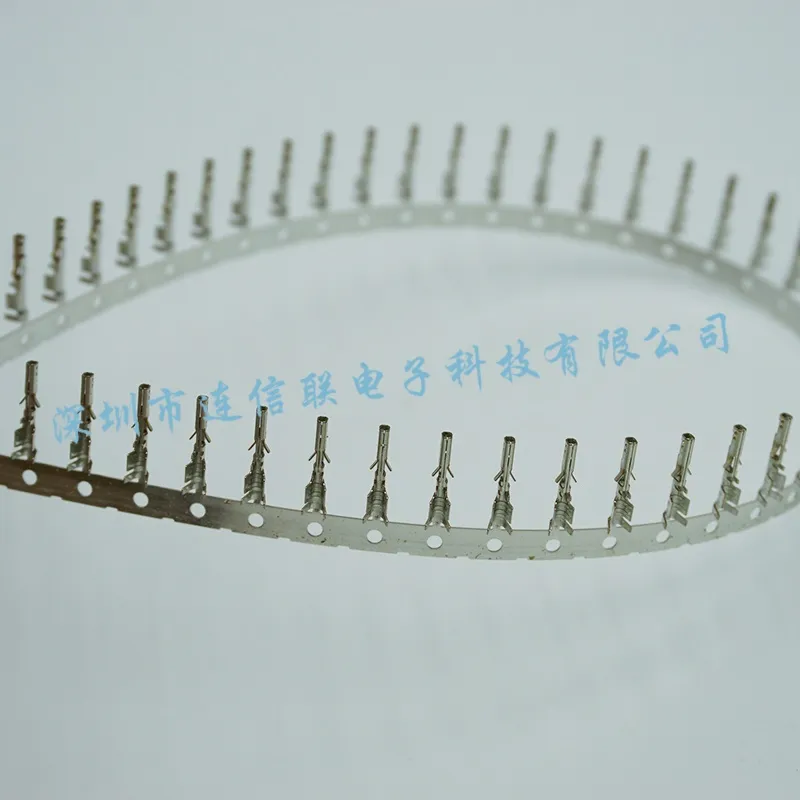

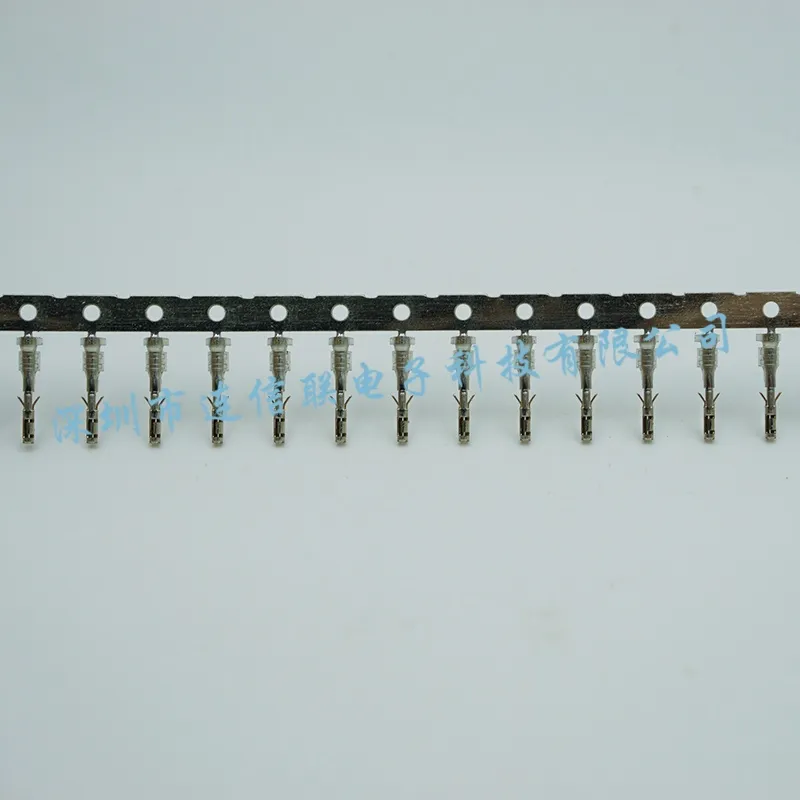

45773-0001
45773-0001 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Crimp Terminals产品。适用信息：Wire-to-Board、Wire-to-Wire。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Crimp Terminals
技术参数
| 产品状态 | 在售 |
|---|---|
| 公端/母端 | 母端 |
| 包装方式 | 卷 |
| 品牌归属地 | 国际 |
| 端接方法 | 压接 |
| 系列 | 45773、45773 |
| 线径-mm² | N/A |
| 线规-AWG | 24 to 20 AWG |
| 触头镀层 | 锡 |
| 镀层厚度 | 0.102μm |
| 额定电流 | 8.5A |
| 一级应用 | Agricultural Machinery, Appliances |
| 二级应用 | Wire-to-Board Connectors, Power Connectors, Micro-Fit Connector System, Wire-to-Wire Connectors, Board-to-Board Connectors, FiT Family Power Connectors |
| 产品名称 | Micro-Fit 3.0 |
| 产品系列 | Micro-Fit Connector System |
| 导线绝缘直径 | 1.85mm max. |
| 应用 | Power |
| 无铅 | N/A |
| 最多次数耐用性(插拔次数) | 30 |
| 端接最薄镀层 | 0.102µm |
| 类别 | Crimp Terminals |
| 终端电镀材料 | Tin |
| 说明 | Micro-Fit 3.0 Crimp Terminal, Female, with Lubricant, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel |
| 重量 | 0.061/g |
| 金属材料 | Phosphor Bronze |
| Packaging | Reel |
| Standard Pack Qty | 12000 |
| 单位重量（kg） | 6.1e-05 |
| Durability Mating Cycles Max | 30 |
| 接口性别 | Female |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| 净重 | 0.061/g |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.102µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.85mm max. |
| Wire Size Awg | 20、22、24 |
| Wire Size Mm | N/A |
采购与包装
| 最小订购量 | 12000 |
|---|---|
| 订购倍数 | 12000 |
| 工厂库存 | 0 |
| 替代包装型号 | 45773-0001 (Cut Strip)、45773-0001 (Loose Piece)、45773-0001 (Mouser Reel) |
| 包装类型 | Reel |
合规信息
| CAHTS | 8536900020 |
|---|---|
| USHTS | 8536904000 |
| JPHTS | 8536900002 |
| KRHTS | 8536909010 |
| TARIC | 8536901000 |
| MXHTS | 85369099 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Not Relevant |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
配套关系
| 配套系列 | 43025 - Micro-Fit 3.0 Dual Row Receptacle Housings、43645 - Micro-Fit 3.0 Single Row Receptacle Housings、44133 - Micro-Fit BMI Dual Row Receptacle Housings |
|---|
其他信息
| 产地 | 中国/CHN批量参考批次： |
|---|---|
| 品名 | 端子 |
| 原产国 | CN,JP,US |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
