产品资料

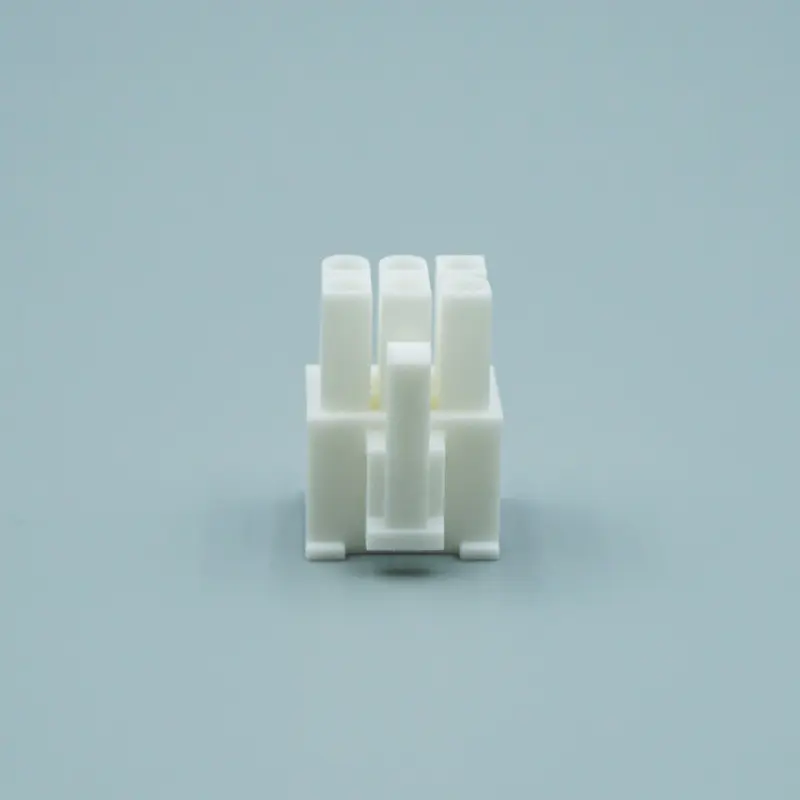

39-01-2065
39-01-2065 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Connector Housings产品。适用信息：Wire-to-Board、Wire-to-Wire。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Connector Housings
技术参数
| 产品状态 | 在售 |
|---|---|
| 产品间距 | 4.20mm |
| 公端/母端 | 母端 |
| 包装方式 | 袋 |
| 品牌归属地 | 国际 |
| 排数 | 2 |
| 系列 | 5557、5557 |
| 针位数 | 6 |
| 阻燃等级 | UL94 V-0 |
| 额定电流 | 13A |
| 一级应用 | Appliances |
| 二级应用 | Wire-to-Board Connectors, Power Connectors, Wire-to-Wire Connectors, FiT Family Power Connectors, Mini-Fit Family Power Connectors |
| 产品名称 | Mini-Fit Jr. |
| 产品系列 | Mini-Fit Family Power Connectors |
| 可堆叠的 | No |
| 工作温度范围 | -40° to +105°C |
| 应用 | Power, Wire-to-Board, Wire-to-Wire |
| 断开 | No |
| 无铅 | N/A |
| 有极性的插配件 | Yes |
| 树脂材料 | Nylon |
| 树脂颜色 | Natural |
| 相关系列 | 42404, 42440, 43810, 44068, 44281, 5559, 5566, 5569, 87427 |
| 符合灼热丝规范 | No |
| 类别 | Connector Housings |
| 说明 | Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Natural、Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information. Use with Strain Relief. |
| 重量 | 1.405/g |
| 间距 - 终端界面 | 4.20mm |
| 面板安装式 | No |
| Packaging | Bulk |
| Standard Pack Qty | 4000 |
| 单位重量（kg） | 0.0014 |
| 最大回路数 | 6 |
| 颜色 | Natural |
| Flammability | 94V-0 |
| 接口性别 | Receptacle |
| 耐灼热丝 | No |
| 配接防错键 | No |
| 配接锁定 | Yes |
| 净重 | 1.403/g |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
| 包装类型 | Bag |
合规信息
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8538903900 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | India |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Not Relevant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR19980 |
| UL | E29179 |
配套关系
| 配接系列 | 42404 - Mini-Fit BMI Right-Angle Dual Row Headers、42440 - Mini-Fit BMI Vertical Dual Row Headers、43810 - Mini-Fit BMI Right-Angle Dual Row Headers、44068 - Mini-Fit BMI Vertical Dual Row Headers、44281 - Mini-Fit Jr. Dual Row Test Plugs、5559 - Mini-Fit Jr. Plug Housings、5566 - Mini-Fit Jr. Vertical Headers、5569 - Mini-Fit Jr. Right-Angle Headers、87427 - Mini-Fit Jr. Dual Row Headers |
|---|---|
| 配套系列 | 5556 - Mini-Fit Female Crimp Terminals、45750 - Mini-Fit Plus Female Crimp Terminals、204723 - Mini-Fit Jr. Hermaphroditic Backshells、44476 - Mini-Fit HCS Female Crimp Terminals |
| 配接产品 | 1727620006 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 6 Circuits、1727670006 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 6 Circuits, Panel Mount、1727670106 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 6 Circuits, Panel Mount、1727671006 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 6 Circuits, Old Panel Mount Style、1727671106 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 6 Circuits, Old Panel Mount Style |
其他信息
| 产地 | 中国/CHN批量参考批次： |
|---|---|
| 品名 | 塑壳 |
| 原产国 | CN,HK,IN,IT,JP,MX,US |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
