产品技术规格
| 应用领域 | Wire-to-Board、Wire-to-Wire |
|---|---|
| China RoHS | Green Image per SJ/T 11365-2006 |
| CSA | LR18689 |
| EU ELV | Compliant per 2000/53/EC |
| EU RoHS | Compliant per EU 2015/863 |
| Flammability | 94V-0 |
| GADSL/IMDS | Compliant with Exemption 44; 34 |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| SAP型号 | 0194200004 |
| Termination Interface Style | Crimp or Compression |
| UL | E152602 |
| Wire Insulation Diameter | 2.36-2.74mm |
| Wire Size Awg | 18、19、20、22 |
| Wire Size Mm | N/A |
| 一级应用 | Agricultural Machinery |
| 二级应用 | Power Connectors, Wire-to-Wire Connectors |

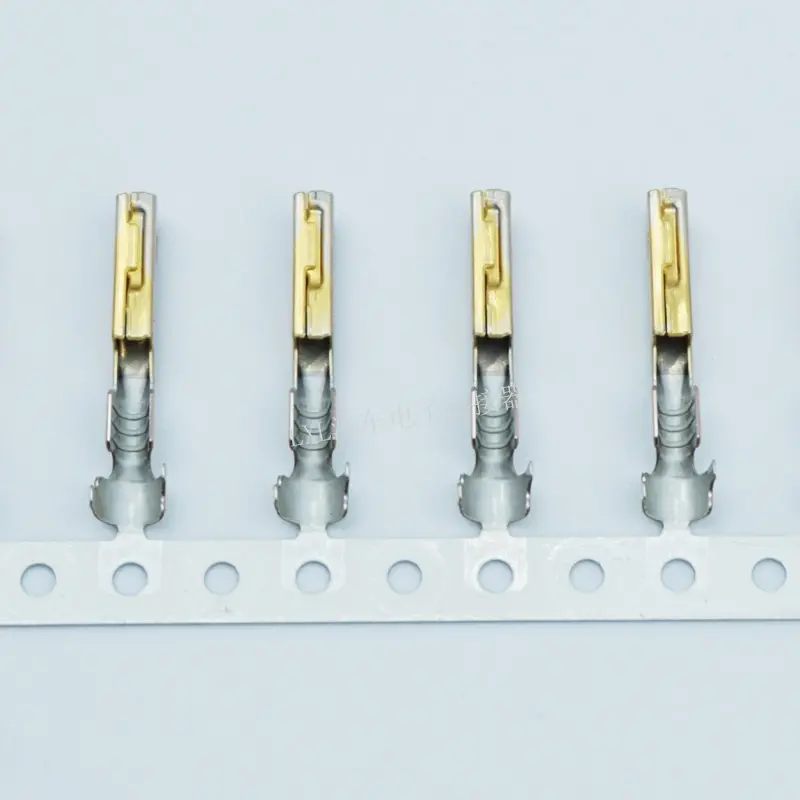

| 产品名称 | 19420-0004 (MOLEX) |
| 产品描述 | MX150L Female Terminal for 18-22 AWG Wire, Gold Plated, Metal Strip Carrier |
| 产品系列 | MX150L |
| 产品规范 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/productspecificationpdf/194/19417/PS-19417-001-001.pdf |
| 公端/母端 | 母端 |
| 净重 | 466.660/mg |
| 包装方式 | 卷 |
| 包装类型 | Reel |
| 原产国 | US |
| 品牌归属地 | 国际 |
| 基本分类 | 连接器 |
| 导线绝缘直径 | 2.36-2.74mm |
| 应用规范 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/applicationspecificationspdf/194/19417/AS-19417-001-001.pdf |
| 接口性别 | Female |
| 替代型号 | 91MB-00108（JiDC(济德)） |
| 最后更新日期 | 2026-06-23 |
| 相关系列 | 19417 |
| 端接方法 | 压接 |
| 端接最薄镀层 | 2.540µm |
| 线径-mm² | N/A |
| 线规-AWG | 22 to 18 AWG |
| 终端电镀材料 | Tin |
| 触头镀层 | 金 |
| 说明 | MX150L Female Terminal for 18-22 AWG Wire, Gold Plated, Metal Strip Carrier、UL EI52602 |
| 配套系列 | 19418 - MX150L Receptacle Housings |
| 配接系列 | 19417 - MX150L Male Terminals and Circuit Voiding Keys |
| 金属材料 | High Performance Alloy (HPA) |
| 销售图纸 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/194/19420/194200004_sd.pdf |
| 销售状态 | Std Product - Ctld S |
| 镀层厚度 | 0.762μm |
| 首次发布日期 | 2007-05-16 |
| 安装风格 | 线缆安装（压接式） |
| 重量 | 466.660/mg |
产品资料
19420-0004
19420-0004 是 WEC 的 Products>Connectors>PCB / Wire Connectors>Crimp Terminals产品。适用信息：Wire-to-Board、Wire-to-Wire。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
WEC
制造商
WEC
产品类别
Products>Connectors>PCB / Wire Connectors>Crimp Terminals
技术参数
| 产品状态 | 在售 |
|---|---|
| 公端/母端 | 母端 |
| 包装方式 | 卷 |
| 品牌归属地 | 国际 |
| 端接方法 | 压接 |
| 系列 | 19420、19420 |
| 线径-mm² | N/A |
| 线规-AWG | 22 to 18 AWG |
| 触头镀层 | 金 |
| 镀层厚度 | 0.762μm |
| 一级应用 | Agricultural Machinery |
| 二级应用 | Power Connectors, Wire-to-Wire Connectors |
| 产品名称 | MX150L |
| 产品系列 | MX150L Industrial Sealed Connector System |
| 导线绝缘直径 | 2.36-2.74mm |
| 应用 | Power, Wire-to-Board, Wire-to-Wire |
| 相关系列 | 19417 |
| 端接最薄镀层 | 2.540µm |
| 类别 | Crimp Terminals |
| 终端电镀材料 | Tin |
| 说明 | MX150L Female Terminal for 18-22 AWG Wire, Gold Plated, Metal Strip Carrier、UL EI52602 |
| 重量 | 466.660/mg |
| 金属材料 | High Performance Alloy (HPA) |
| Packaging | Reel |
| Standard Pack Qty | 4000 |
| 单位重量（kg） | 0.000184 |
| Flammability | 94V-0 |
| 接口性别 | Female |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| 净重 | 466.660/mg |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 2.36-2.74mm |
| Wire Size Awg | 18、19、20、22 |
| Wire Size Mm | N/A |
采购与包装
| 最小订购量 | 4000 |
|---|---|
| 订购倍数 | 4000 |
| 工厂库存 | 0 |
| 替代包装型号 | 19420-0004 (Cut Strip)、19420-0004 (Mouser Reel)、19420-0004 (Loose Piece) |
| 包装类型 | Reel |
合规信息
| RoHS状态 | ROHS3 Compliant |
|---|---|
| REACH状态 | REACH Unknown |
| ECCN | EAR99 |
| HTSUS编码 | 8536.90.4000 |
| CNHTS | 8536901100 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 8536900002 |
| KRHTS | 8536909010 |
| TARIC | 8536699099 |
| MXHTS | 85369099 |
| BRHTS | 85369090 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| GADSL/IMDS | Compliant with Exemption 44; 34 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR18689 |
| UL | E152602 |
配套关系
| 配接系列 | 19417 - MX150L Male Terminals and Circuit Voiding Keys |
|---|---|
| 配套系列 | 19418 - MX150L Receptacle Housings |
其他信息
| 原产国 | US |
|---|
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
