产品技术规格
| 1 | 0.736 |
|---|---|
| 20 | 0.701 |
| 3D_CVM_CVM_770520-1_P1.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_770520-1&DocType=Customer%20View%20Model&DocLang=3D&DocFormat=pdf&PartCntxt=770520-1 |
| 5000 | 0.381 |
| A124353CT-ND | Cut Tape (CT) |
| A124353TR-ND | Tape & Reel (TR) |
| Assembly Country of Origin | Not available |
| batch | ZK |
| BRHTS | 85389090 |
| CAHTS | 8536900020 |
| CNHTS | 8536901100 |
| Compatible Insulation Diameter Range | 1.7 – 2.7 mm [ .067 – .106 in ] |
| Compatible With Wire Base Material | Copper |
| Contact Fabrication | Stamped & Formed |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Country of Diffusion | Not available |
| Country of Origin | United States |
| Crimp Type | F-Crimp |
| Customer Drawing | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=770520&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| DigiKey编号 | A124353TR-ND |
| ECCN | EAR99 |
| ENG_AAD_CSA_CERT_164196_1062842_623301_C1_E.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CSA_CERT_164196_1062842_623301_C1&DocType=Agency%20Approval%20Document&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| ENG_AAD_CSA_CERT_164196_1062842_623301_Rating_E.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CSA_CERT_164196_1062842_623301_Rating&DocType=Agency%20Approval%20Document&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| ENG_CS_TS_ICT_T_C_CAT_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=TS_ICT_T_C_CAT&DocType=Catalog%20Section&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| ENG_CVM_CVM_770520-1_P1.2d_dxf.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_770520-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=770520-1 |
| ENG_CVM_CVM_770520-1_P1.3d_igs.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_770520-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=770520-1 |
| ENG_CVM_CVM_770520-1_P1.3d_stp.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_770520-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=770520-1 |
| ENG_DS_1-1773950-7_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773950-7&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| ENG_DS_1-1773962-8_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773962-8&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| ENG_DS_1-1773979-2_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773979-2&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| ENG_SS_108-1329_E1.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-1329&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| ENG_SS_114-16016_S3.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=114-16016&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| ENG_SS_408-3284_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=408-3284&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| ENG_SS_501-231_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=501-231&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| HTSUS编码 | 8536.90.4000 |
| Insulation Option | Uninsulated |
| Interface Plating | Tin (Sn) |
| JPHTS | 853690000 |
| Mating Pin Diameter | 1.3 mm [ .051 in ] |
| MXHTS | 8536902800 |
| 工作温度（Max） | 105 °C [ 221 °F ] |
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| Packaging Method | Reel |
| Packaging Quantity | 5000 |
| Pin or Socket | Socket |
| Primary Locking Feature | Integrated in Housing |
| Product Features & Characteristics | Select All |
| Product Terminates To | Wire |
| REACH状态 | REACH not applicable |
| Receptacle Style | 180° |
| RoHS状态 | RoHS Compliant |
| S_408-3284_A.tif | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=408-3284&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=tif&PartCntxt=770520-1 |
| Sealable | No |
| Standard Pack Qty | 5000 |
| TARIC | 8536901000 |
| Terminal Transmits | 0 – 24 A (Low Power) |
| Terminal Type | Socket |
| Termination Method to Wire & Cable | Crimp |
| TE内部描述 | AMPSEAL,TERMINAL,TIN PLATE,16-20AWG WIRE |
| TE内部编号 | 770520-1 |
| Type | - |
| Typical Current Rating (A) | 8 |
| USHTS | 8536904000 |
| Wire Contact Termination Area Plating Material | Tin |
| Wire Gauge | 16-20 AWG |
| Wire Size (AWG) | 20 – 16 |
| Wire Size (mm²) | .517 – 1.31 |
| 与电线基础材料兼容 | 铜 |
| 主要锁定特性 | 端子上 |
| 交期 | 91 Days |

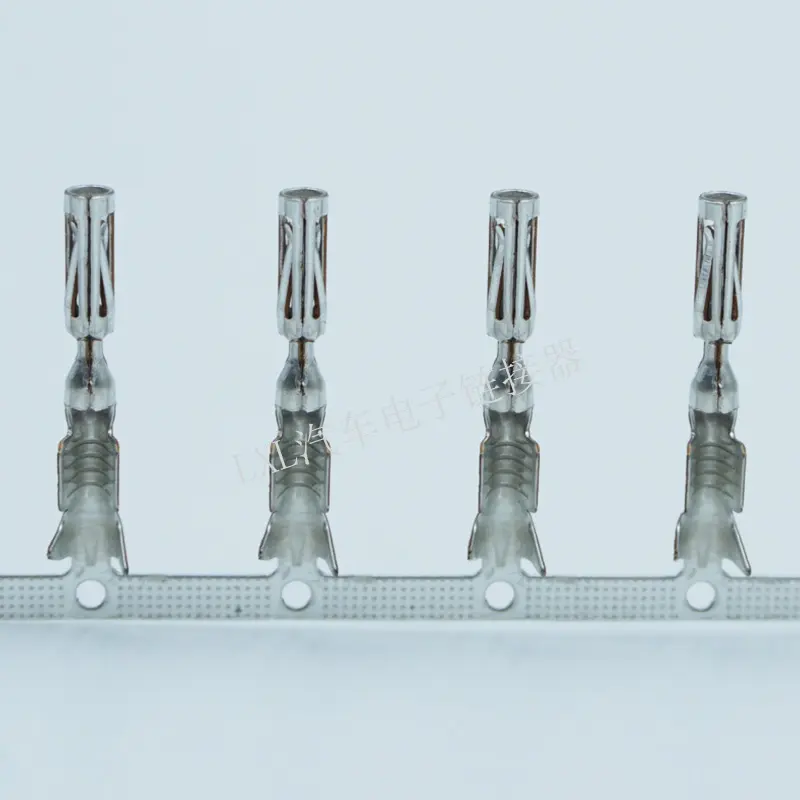

| 产品名称 | 770520-1 (TE Connectivity) |
| 产品描述 | Automotive Terminals, Socket, Pin Diameter 1.3 mm [.051 in], 20 – 16 AWG Wire Size, .5 – 1.5 mm² Wire Size, Family Seal, AMPSEAL |
| 产品状态 | Id：0；Status：Active |
| 产品端接到 | 导线 |
| 产地 | 中国/CHN |
| 公端/母端 | 插座 |
| 制造商交期（周） | 13 |
| 包装方式 | 卷 |
| 单位重量（kg） | 0.00049 |
| 压接类型 | F 型压接 |
| 参考单价（USD） | 0.14 |
| 可密封性 | 否 |
| 可用库存 | 46633 |
| 品名 | 盘装端子 |
| 品牌归属地 | 国际 |
| 基本分类 | 连接器 |
| 子品牌 | TE Connectivity |
| 官方产品图片1 | https://www.te.com/content/dam/te-com/catalog/part/007/705/201/770520-1-t1.jpg/jcr:content/renditions/product-details.png |
| 封装数量 | 5000 |
| 工作温度范围 | 257 °F、-40 – 257 °F |
| 年份批次 | 202602 |
| 接合插针直径 | .051 in |
| 插座种类 | 180° |
| 数据手册 | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773950-7&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=770520-1 |
| 替代包装型号 | 770520-1 (Cut Strip)、770520-1 (Mouser Reel)、770520-1 (Loose Piece) |
| 替代型号 | 921-130-1001（JiDC(济德)）、AH324-1.3A（AHI）、S06-0017P-NA-N（GVTONG(国威通)） |
| 湿敏等级 | 1 (Unlimited) |
| 端子传导 | 0 – 24 A（低功率） |
| 端子制造 | 冲压成形 |
| 端子大小 | 1.3mm |
| 端子密封类型 | 系列密封 |
| 端接方法 | 压接 |
| 线径 | .5 – 1.5 mm² |
| 线规-AWG | 16 AWG |
| 绝缘选项 | 非绝缘 |
| 触头镀层 | 锡 |
| 贸泽编号 | 571-770520-1 |
| 适用的绝缘层直径范围 | .067 – .106 in |
| 零件编号 | 770520-1 |
| 额定电流 | 8A |
| 安装风格 | 线缆安装（压接式端子） |
| 包装 | Reel |
| 间距 | 1.3mm |
| 系列 | AMPSEAL |
| 端接方式 | Crimp |
