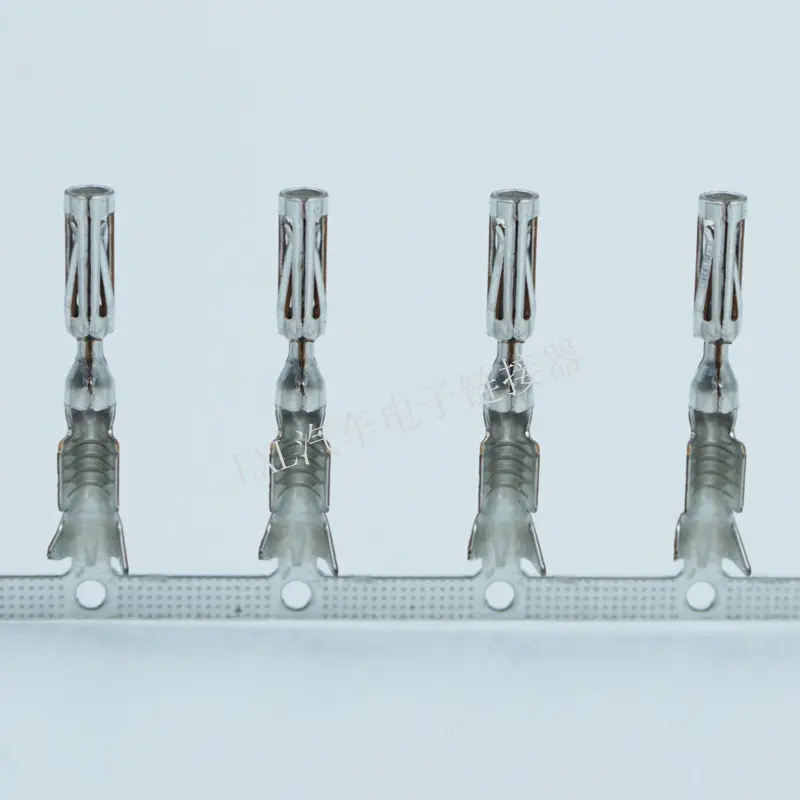

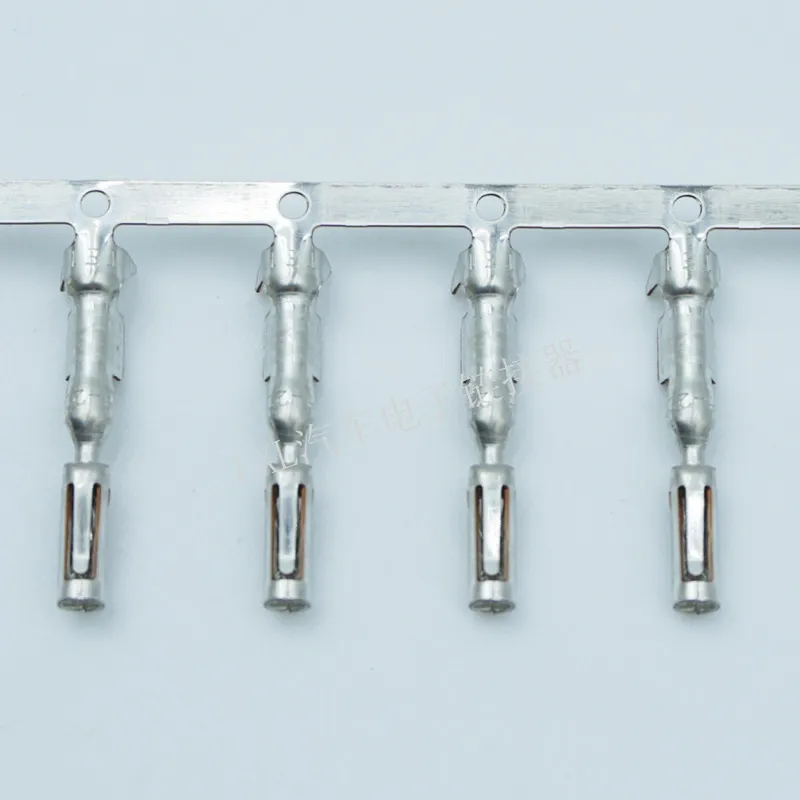

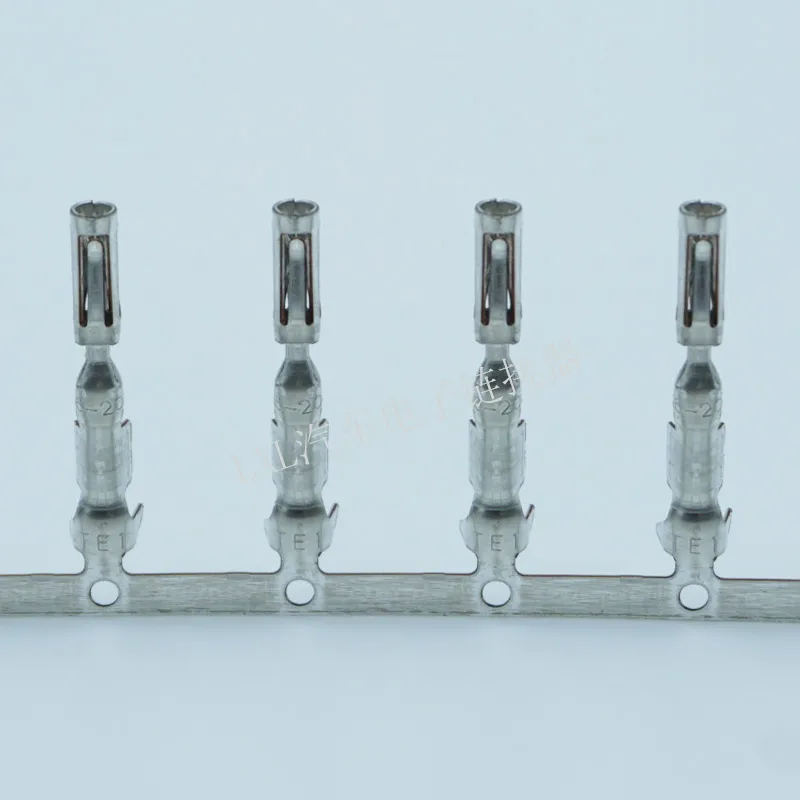

TE Connectivity 770520-1 Connector Terminal
770520-1 is a TE Connectivity Automotive Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
770520-1
Brand
TE Connectivity
Category
Automotive Terminals
Technical specifications
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 5000 |
| Unit weight (kg) | 0.00049 |
| Terminal Type | Socket |
| Wire Size ( A W G) | 20 – 16 |
| Wire Size (Mm²) | .517 – 1.31 |
| Interface Plating | Tin (Sn) |
| Primary Locking Feature | Integrated in Housing |
| Product Features & Characteristics | Select All |
| Receptacle Style | 180° |
| Sealable | No |
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.3mm |
| Crimp Type | F-Crimp |
| Typical Current Rating ( A) | 8 |
| Mating Pin Diameter | 1.3 mm [ .051 in ] |
| Termination Method To Wire & Cable | Crimp |
| Product Terminates To | Wire |
| Compatible Insulation Diameter Range | 1.7 – 2.7 mm [ .067 – .106 in ] |
| Insulation Option | Uninsulated |
| Operating Temperature ( Max) | 105 °C [ 221 °F ] |
| Operating Temperature Range | -40 – 105 °C [ -40 – 221 °F ] |
| Compatible With Wire Base Material | Copper |
| Packaging Quantity | 5000 |
| Packaging Method | Reel |
| Terminal Transmits | 0 – 24 A (Low Power) |
Ordering and packaging
| Minimum order quantity | 5000 |
|---|---|
| Order multiple | 5000 |
| Factory stock | 0 |
| Suggested alternative | 571-7708541 |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| MXHTS | 8536902800 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
