产品资料

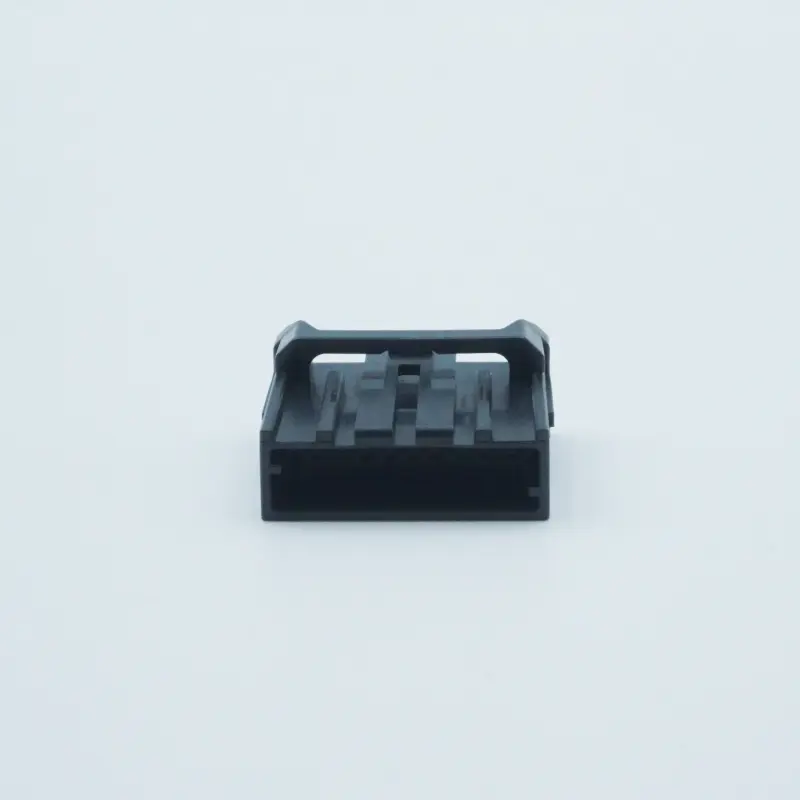

ZH05-20DP-HU(A)
ZH05-20DP-HU(A) 是 Hirose Connector 的 Wire-to-Board产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Hirose Connector
制造商
Hirose Connector
产品类别
Wire-to-Board
技术参数
| 产品状态 | Obsolete |
|---|---|
| 系列 | UQ |
| 产品尺寸 | 0.040" L x 0.020" W (1.02mm x 0.51mm) |
| 产品应用 | RF, Microwave, High Frequency |
| 包装方式 | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| 厚度(Max) | 0.024" (0.60mm) |
| 安装类型 | Surface Mount, MLCC |
| 安装高度(Max) | - |
| 容值 | 27pF |
| 尺寸 | 0402(1005) |
| 工作温度范围 | -55 to 125℃ |
| 引线间距 | - |
| 故障率 | - |
| 温度系数 | A |
| 特性 | High Q, Low Loss |
| 端接方法 | - |
| 精度 | ±5% |
| 额定电压 | 200V |
| Packaging | Bulk |
| Standard Pack Qty | 500 |
| Connector Type | Plug |
| Cable Assembly | No |
| Number Of Positions | 20 |
| Rated Current | 2.0 A |
| Rated Voltage ( A C) | AC 60.0 V |
| Rated Voltage ( D C) | DC 60.0 V |
| Number Of Rows ( Interface) | 2 |
| Contact Pitch | 2.0 mm |
| Connector Length | 24.7 mm |
| Connector Width | 22.3 mm |
| Connector Height | 11.5 mm |
| Mating/ Unmating Cycles | 30 |
| Housing Color | Black |
| Wire Termination Method | Crimping |
| Operating Temperature Max. | 125 ℃ |
| Operating Temperature Min. | -40 ℃ |
| Ro H S ( E U)2015/863 | Conforming |
| S V H C | 35th Non-Contained |
| Connector Type Details | Housing |
| Key | Yes |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| USHTS | 8538906000 |
|---|---|
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Japan |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
其他信息
| 产地 | 批量参考批次： |
|---|---|
| 品名 | 针座 |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
