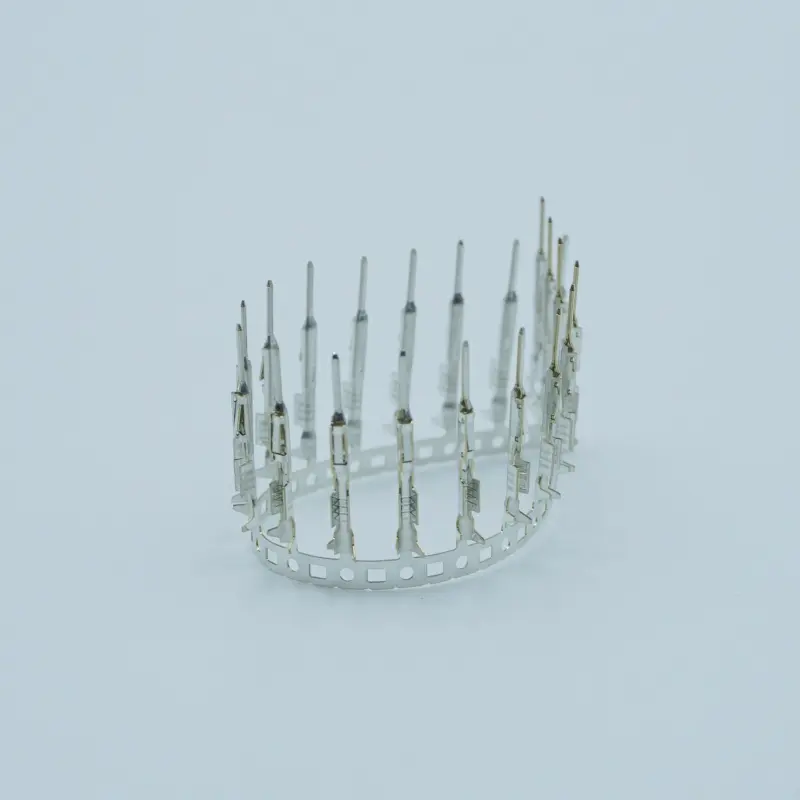

ZH05-2224PCF
ZH05-2224PCF 是 Hirose Connector 的 Wire-to-Board产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Hirose Connector
制造商
Hirose Connector
产品类别
Wire-to-Board
技术参数
| Packaging | Bulk |
|---|---|
| Standard Pack Qty | 75000 |
| Connector Type | Contact |
| Cable Assembly | No |
| Rated Current | 2.0 A |
| Rated Voltage ( A C) | AC 60.0 V |
| Rated Voltage ( D C) | DC 60.0 V |
| Mating/ Unmating Cycles | 30 |
| Contact Plating | Tin |
| Wire Termination Method | Crimping |
| Recommended Min. Wire Size ( A W G) | 24 |
| Recommended Max. Wire Size ( A W G) | 22 |
| Recommended Min. Wire Size (Mm²) | 0.22 mm² |
| Recommended Max. Wire Size (Mm²) | 0.35 mm² |
| Operating Temperature Max. | 125 ℃ |
| Operating Temperature Min. | -40 ℃ |
| Ro H S ( E U)2015/863 | Conforming |
| S V H C | 35th Non-Contained |
| Contact Resistance | 10.0 mΩ Max. |
| Min. Wire Insulation Diameter | 0.9 ｍｍ |
| Max. Wire Insulation Diameter | 1.4 ｍｍ |
| Packaging Type | Box |
| Purchase Unit | 75000 PCS |
| Mass | 0.078 g |
| 净重 | 0.078 g |
| Qty/ Box | 75000 PCS |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| CNHTS | 8536901100 |
|---|---|
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| TARIC | 8536901000 |
| MXHTS | 8536902800 |
| ECCN | EAR99 |
| Country of Origin | Japan |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
其他信息
| 产品状态 | 在产 |
|---|
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
