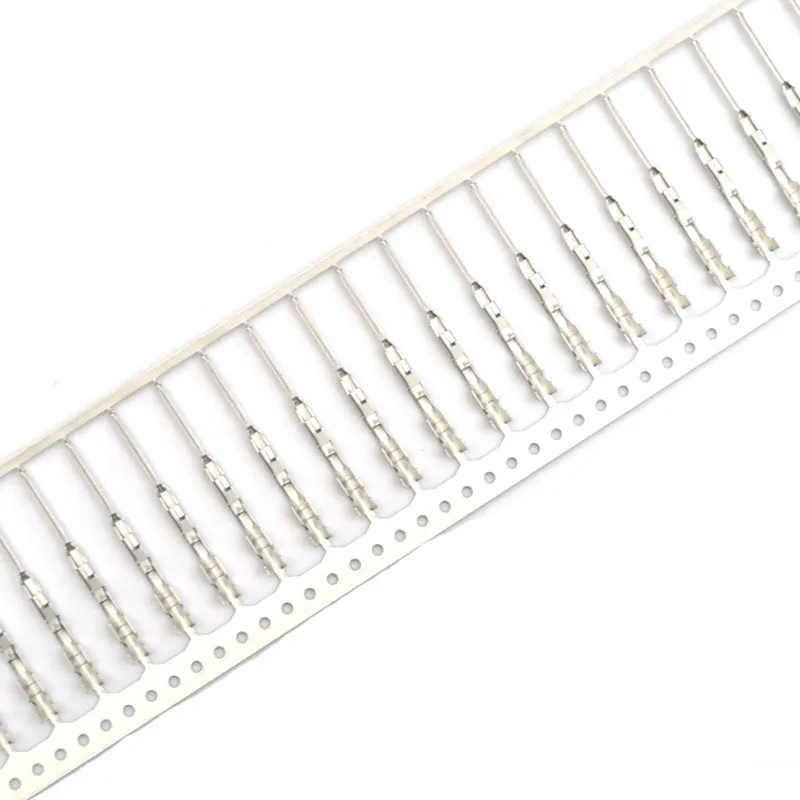

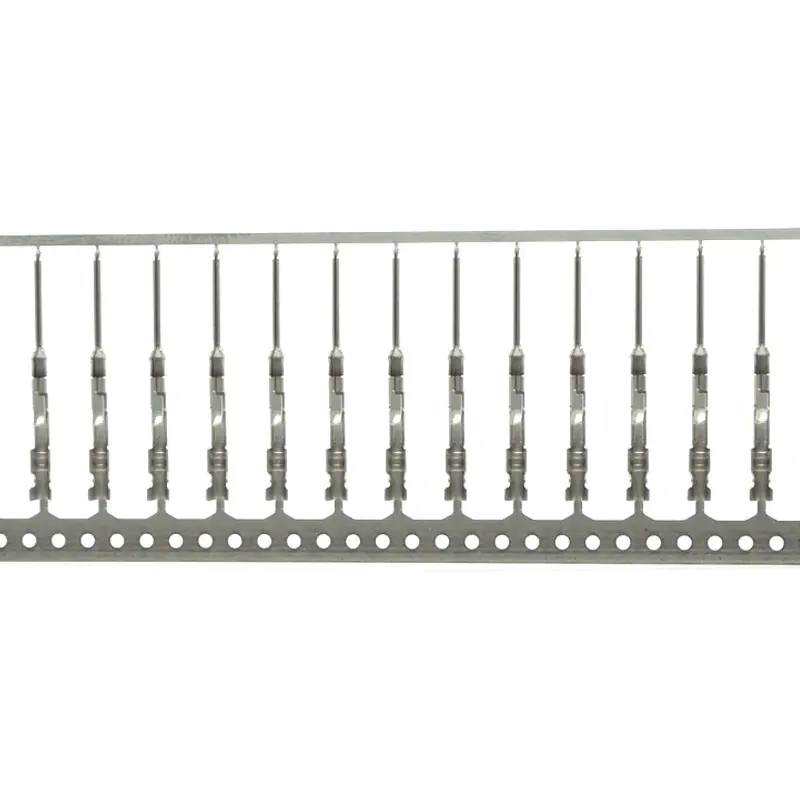

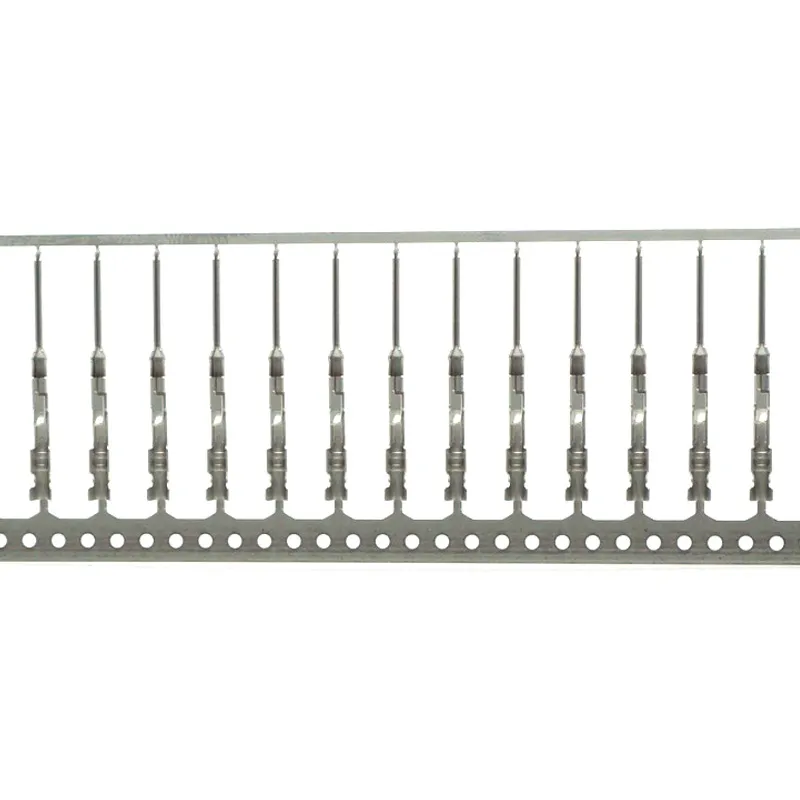

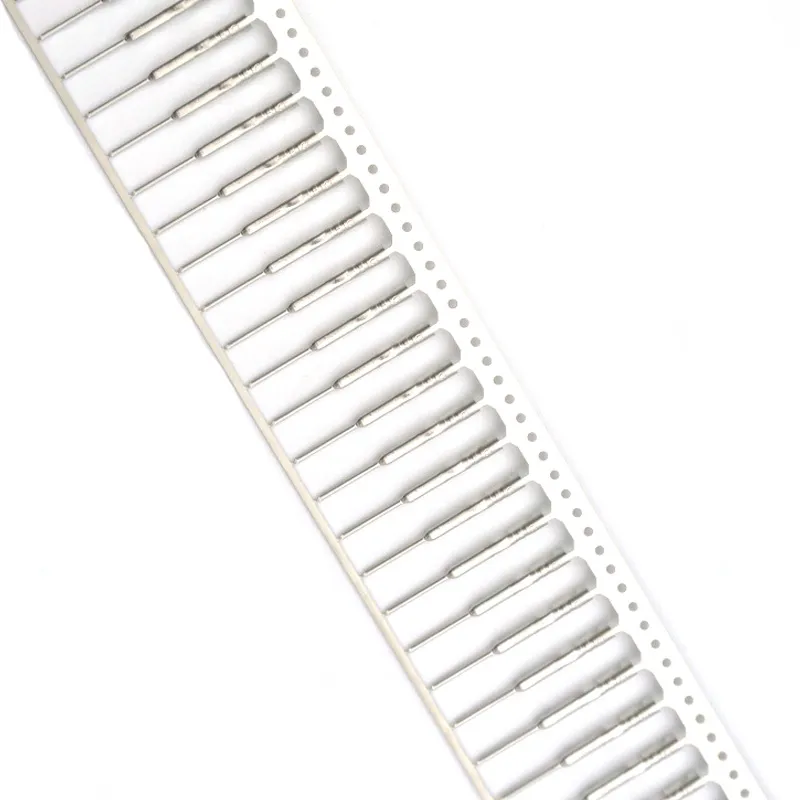

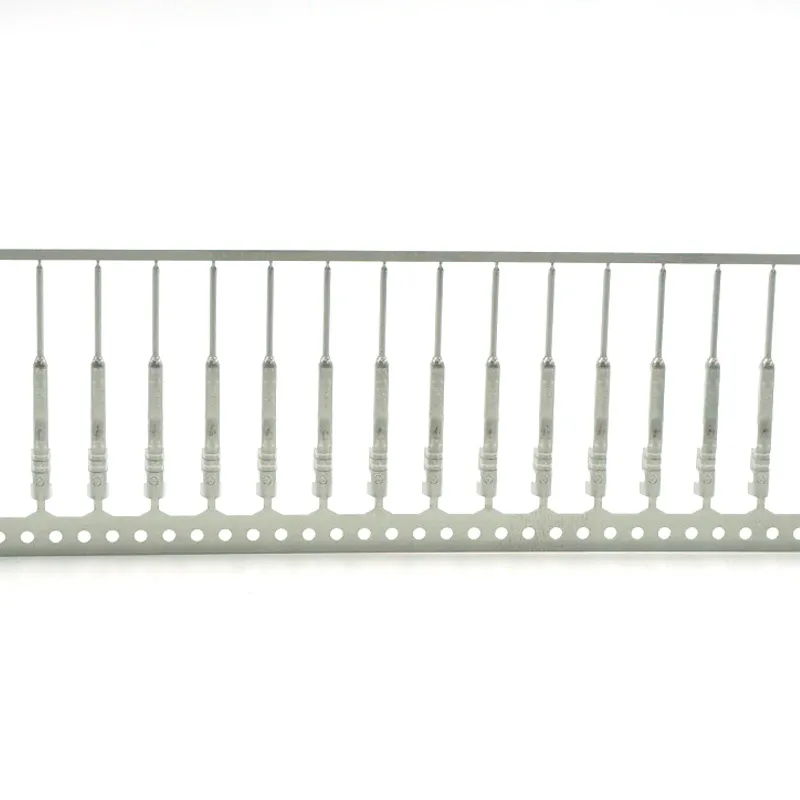

Molex 16-02-0107 Connector Terminal
16-02-0107 is a Molex Crimp Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
16-02-0107
Brand
Molex
Category
Crimp Terminals
Technical specifications
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 20000 |
| Unit weight (kg) | 9.4e-05 |
| Interface gender | Male |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net weight | 142.500/mg |
| Packaging Alternative Part | {'productNumber': '0016020114', 'packagingType': 'Bag'} |
| Plating Min Mating | 3.810µm |
| Plating Min Termination | 3.810µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.63mm max. |
| Wire Size Awg | 22、24 |
| Wire Size Mm | N/A |

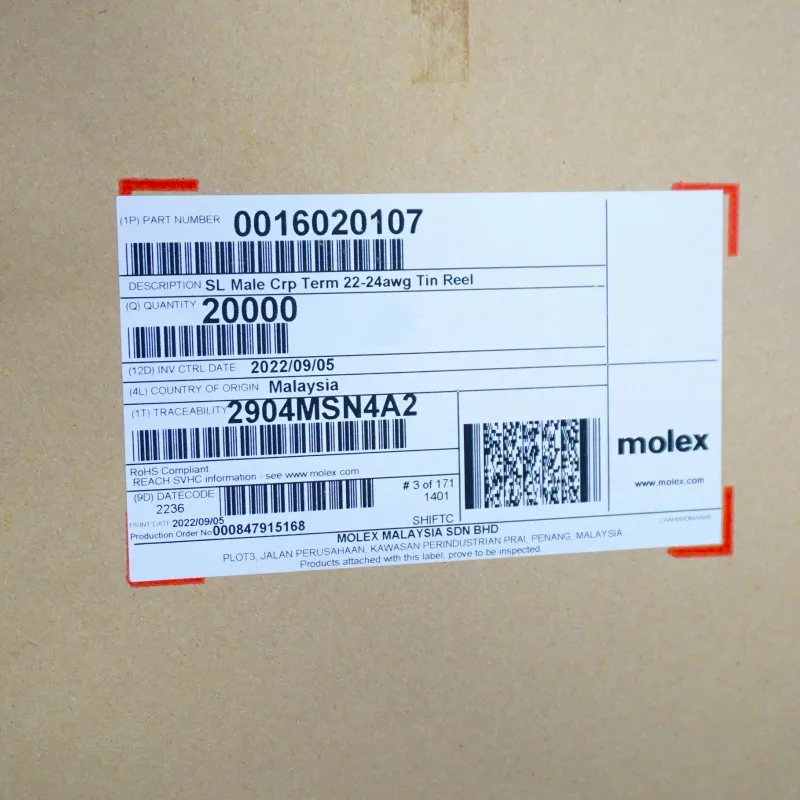

Ordering and packaging
| Minimum order quantity | 20000 |
|---|---|
| Order multiple | 20000 |
| Factory stock | 0 |
| Suggested alternative | 538-16-02-0114 |
| Packaging type | Reel |
Compliance information
| CNHTS | 8538900000 |
|---|---|
| TARIC | 8536699099 |
| CAHTS | 8536690020 |
| USHTS | 8536904000 |
| JPHTS | 853669000 |
| KRHTS | 8536691000 |
| MXHTS | 8536699999 |
| BRHTS | 85366990 |
| ECCN | EAR99 |
| Country of Origin | Malaysia |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44; 33 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Not Relevant |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
Mating and related products
| Use-with series | 70066 - SL Single Row Crimp Housings and CPA Retainers、70107 - SL Single Row Crimp Housings |
|---|
Additional information
| Product status | Active |
|---|---|
| Country of origin | HK,MY,US |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
