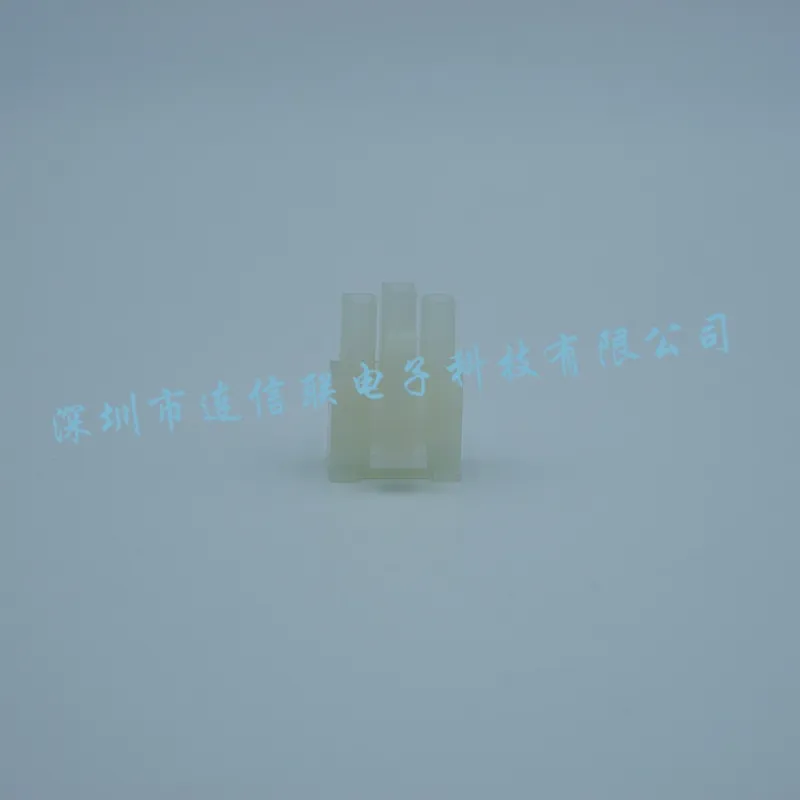

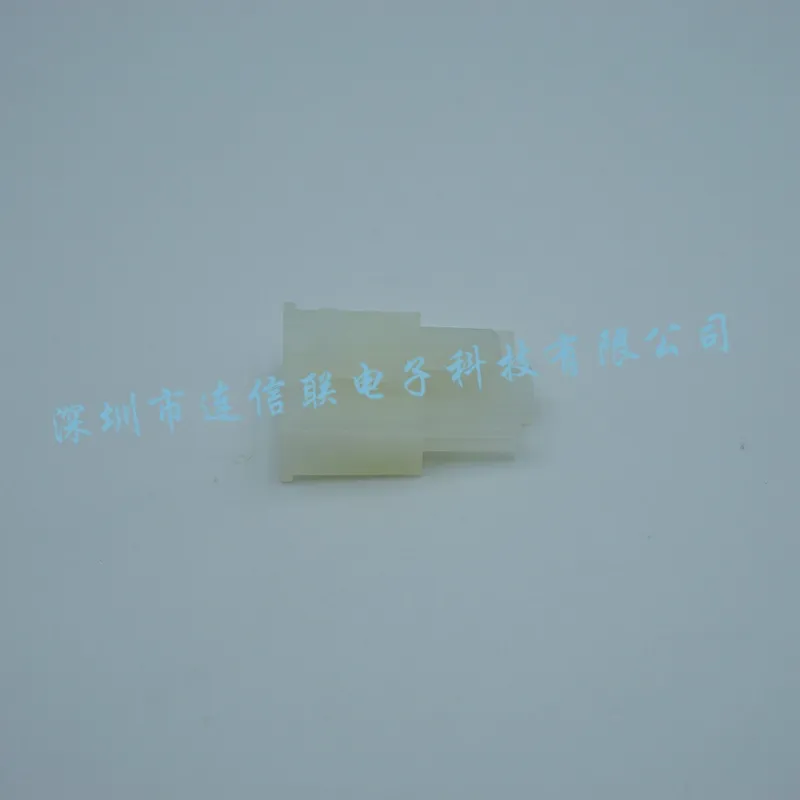

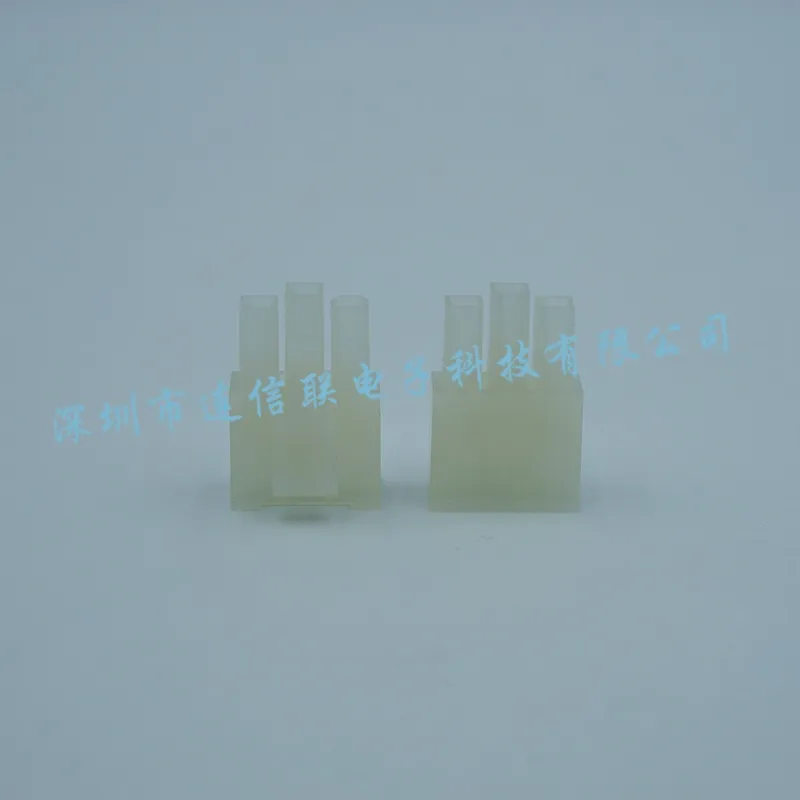

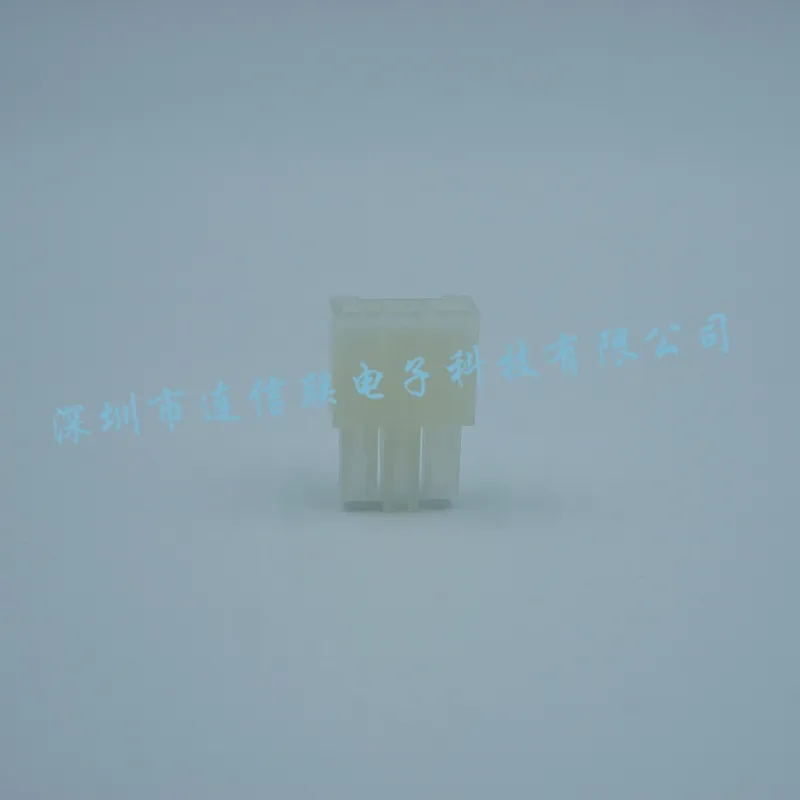

Molex 39-01-4030 连接器胶壳

描述: Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-2, Natural
参数: 产品间距: 4.20mm 排数: 1 针位数: 3

¥ 0.47

包装
- 个
- 箱
- 包

加入购物车

添加到心愿单

销售与网站使用条款
价格、库存与交期以订单确认为准

香港标准配送：17:00 截单，处理 3 个工作日 + 运输 3 个工作日，周一至周五，免运费。查看配送政策

品牌：Molex 产品类别：连接器胶壳

39-01-4030

39-01-4030 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Connector Housings产品。适用信息：Wire-to-Board、Wire-to-Wire。本页汇总官方技术资料、贸易合规、包装和国内供货信息。

品牌

Molex

制造商

Molex

产品类别

Products>Connectors>PCB / Wire Connectors>Connector Housings

技术参数

Packaging	Bulk
Standard Pack Qty	6500
单位重量（kg）	0.00088
最大回路数	3
颜色	Natural
Flammability	94V-2
接口性别	Receptacle
耐灼热丝	No
配接防错键	No
配接锁定	Yes
树脂材料	Nylon
净重	0.900/g
排数	1
面板安装	No
配接间距	4.20mm
Pitch Termination Interface	4.20mm
配接极性	Yes
可堆叠	No
工作温度范围	-40° to +105°C

采购与包装

最小订购量	1
订购倍数	1
工厂库存	0
包装类型	Bag

合规信息

CNHTS	8547200000
TARIC	8547200090
CAHTS	8538903900
USHTS	8538906000
JPHTS	853890000
BRHTS	85389090
ECCN	EAR99
Country of Origin	India
Assembly Country of Origin	Not available
Country of Diffusion	Not available
RoHS状态	RoHS Compliant
GADSL/IMDS	Not Relevant
China RoHS	Green Image per SJ/T 11365-2006
EU ELV	Not Relevant
Low-Halogen Status	Low-Halogen per IEC 61249-2-21
Prop65	Compliant per California Proposition 65
REACH SVHC	Not Contained per D(2025)7771-DC (04 Feb 2026)
EU RoHS	Compliant per EU 2015/863
CSA	LR19980
UL	E29179

配套关系

配套系列

5556 - Mini-Fit Female Crimp Terminals、45750 - Mini-Fit Plus Female Crimp Terminals、44476 - Mini-Fit HCS Female Crimp Terminals

配接产品

0039014032 - Mini-Fit Jr. Plug Housing, Single Row, 3 Circuits, UL 94V-2, with Panel Mounting Ears, Natural、0039014036 - Mini-Fit Jr. Plug Housing, Single Row, 3 Circuits, UL 94V-2, without Panel Mounting Ears, Natural、0039301039 - Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 3 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural、0039302031 - Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 3 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural、2004880003 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Single Row, UL 94V-0, Low-Halogen, Panel Mount, 3 Circuits、2004881003 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Single Row, UL 94V-0, Low-Halogen, Old Panel Mount Style, 3 Circuits、2004881103 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Single Row, UL 94V-2, Glow-Wire Capable, Panel Mount, 3 Circuits、2004710003 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Single Row, UL 94V-0, Low-Halogen, 3 Circuits

其他信息

产品状态	Active
原产国	HK,IN,JP,MY,US

参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
