产品资料

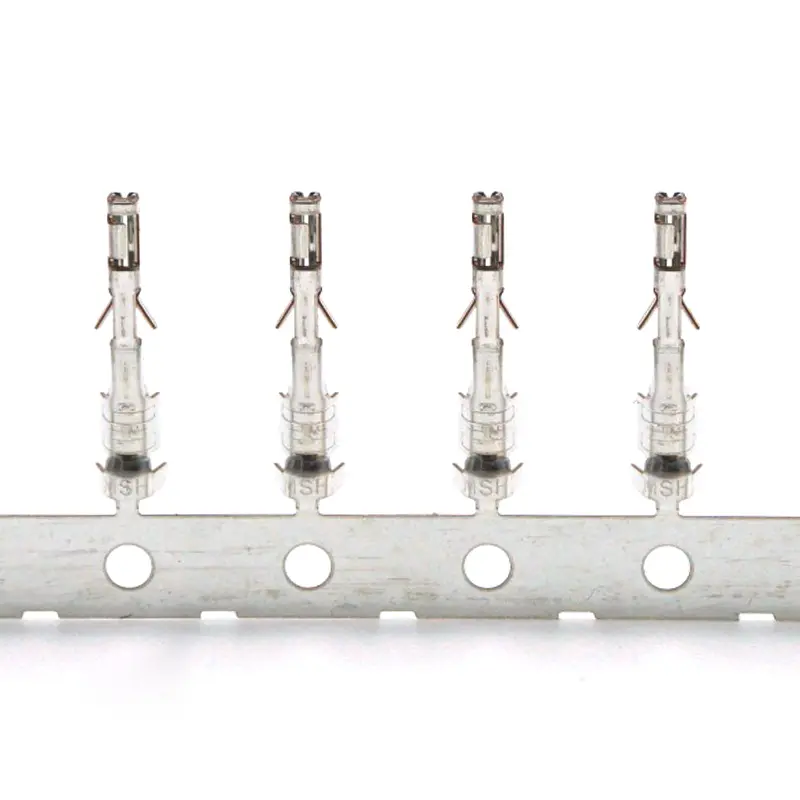

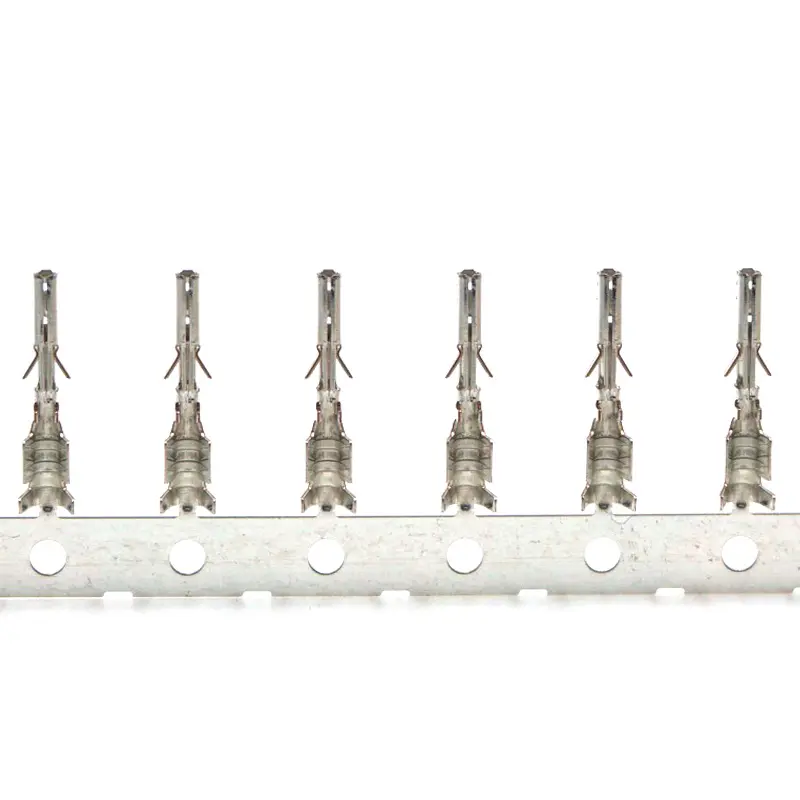

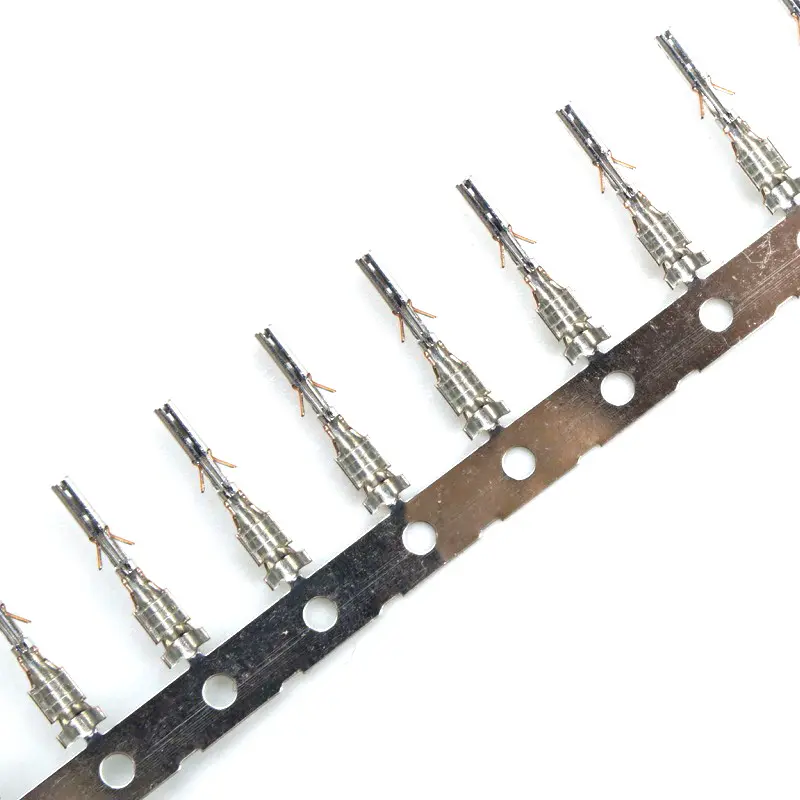

43030-0001
43030-0001 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Crimp Terminals产品。适用信息：Wire-to-Board、Wire-to-Wire。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Crimp Terminals
技术参数
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 12000 |
| 单位重量（kg） | 6.1e-05 |
| Durability Mating Cycles Max | 30 |
| 接口性别 | Female |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| 净重 | 0.061/g |
| Packaging Alternative Part | {'productNumber': '0430300007', 'packagingType': 'Bag'} |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.85mm max. |
| Wire Size Awg | 20、22、24 |
| Wire Size Mm | N/A |
采购与包装
| 最小订购量 | 12000 |
|---|---|
| 订购倍数 | 12000 |
| 工厂库存 | 0 |
| 建议替代型号 | 538-43030-0007 |
| 替代包装型号 | 43030-0001 (Cut Strip)、43030-0001 (Mouser Reel) |
| 包装类型 | Reel |
合规信息
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| KRHTS | 8536691000 |
| MXHTS | 8536902800 |
| BRHTS | 85366990 |
| ECCN | EAR99 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
配套关系
| 配套系列 | 43025 - Micro-Fit 3.0 Dual Row Receptacle Housings、43645 - Micro-Fit 3.0 Single Row Receptacle Housings、44133 - Micro-Fit BMI Dual Row Receptacle Housings、46623 - Micro-Fit BMI Single Row Receptacle Housings、171850 - Micro-Fit TPA Single Row Receptacle Housings、172952 - Micro-Fit TPA Receptacle Housings |
|---|
其他信息
| 产品状态 | Active |
|---|---|
| 原产国 | CN,HK,IT,JP,SG,US |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
