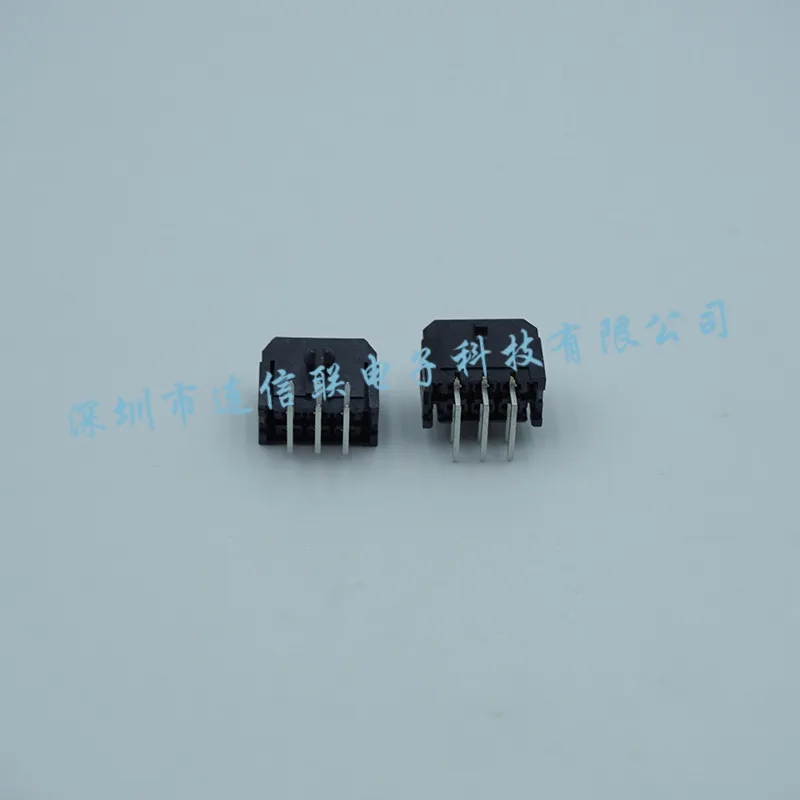

Molex 43045-0601 连接器针座

描述: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Glow-Wire Capable, Black
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Glow-Wire Capable, Black
参数: 产品间距: 3.00mm 排数: 2 针位数: 6
产品间距: 3.00mm 排数: 2 针位数: 6

价格请询价

包装
- 个
- 箱

添加到心愿单

销售与网站使用条款
价格、库存与交期以订单确认为准

香港标准配送：17:00 截单，处理 3 个工作日 + 运输 3 个工作日，周一至周五，免运费。查看配送政策

品牌：Molex 产品类别：PCB 针座与插座

43045-0601

43045-0601 是 Molex 的 Products>Connectors>PCB / Wire Connectors>PCB Headers and Receptacles产品。适用信息：Wire-to-Board。本页汇总官方技术资料、贸易合规、包装和国内供货信息。

品牌

Molex

制造商

Molex

产品类别

Products>Connectors>PCB / Wire Connectors>PCB Headers and Receptacles

技术参数

Packaging	Tray
Standard Pack Qty	1728
单位重量（kg）	0.0011
Breakaway	No
Circuits Loaded	6
最大回路数	6
颜色	Black
Durability Mating Cycles Max	30
First Mate Last Break	No
Flammability	94V-0
接口性别	Male
耐灼热丝	Yes
Mated Height	10.29mm
Material Metal	Brass
Material Plating Mating	Gold
Material Plating Termination	Tin
树脂材料	High Temperature Thermoplastic
净重	1.106/g
排数	2
Orientation	Right Angle
Pcb Locator	Yes
Pcb Retention	Yes
Pcb Thickness Recommended	1.60mm
配接间距	3.00mm
Plating Min Mating	0.381µm
Plating Min Termination	2.540µm
Polarized To Pcb	Yes
Shrouded	Shrouded
可堆叠	No
工作温度范围	-40° to +125°C
Termination Interface Style	Through Hole

采购与包装

最小订购量	1
订购倍数	1
工厂库存	0
包装类型	Tray

合规信息

CNHTS	8536901100
TARIC	8536693000
CAHTS	8536690020
USHTS	8536694040
JPHTS	853669000
KRHTS	8536691000
MXHTS	8536699999
BRHTS	85366990
ECCN	EAR99
Country of Origin	Mexico
Assembly Country of Origin	Not available
Country of Diffusion	Not available
RoHS状态	RoHS Compliant
GADSL/IMDS	Compliant with Exemption 44; 34; 33
China RoHS	Green Image per SJ/T 11365-2006
EU ELV	Not Relevant
Low-Halogen Status	Low-Halogen per IEC 61249-2-21
Prop65	Compliant per California Proposition 65
REACH SVHC	Not Contained per D(2025)7771-DC (04 Feb 2026)
EU RoHS	Compliant per EU 2015/863
CSA	LR19980
UL	E29179

配套关系

配接系列	43025 - Micro-Fit 3.0 Dual Row Receptacle Housings、172952 - Micro-Fit TPA Receptacle Housings、214755 - Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female Off-the-Shelf (OTS) Cable Assemblies、214756 - Micro-Fit 3.0 Female-to-Pigtail Off-the-Shelf (OTS) Cable Assemblies

其他信息

产品状态	Active
原产国	CN,HK,JP,MX,US

参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
