产品资料

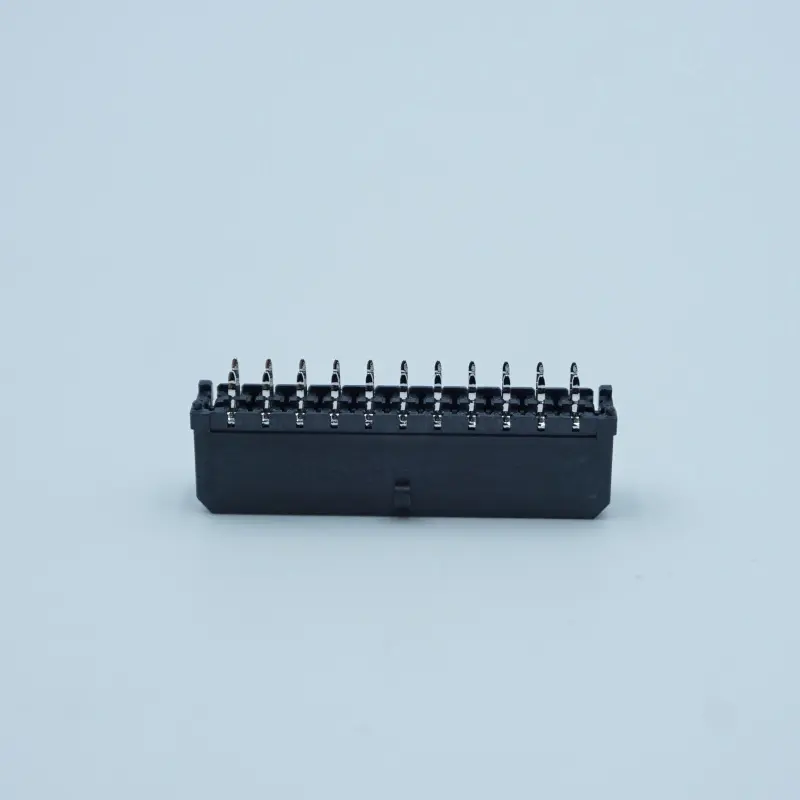

43045-2212
43045-2212 是 Molex 的 Products>Connectors>PCB / Wire Connectors>PCB Headers and Receptacles产品。适用信息：Wire-to-Board。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>PCB Headers and Receptacles
技术参数
| Packaging | Tray |
|---|---|
| Standard Pack Qty | 576 |
| 单位重量（kg） | 0.002917 |
| Breakaway | No |
| Circuits Loaded | 22 |
| 最大回路数 | 22 |
| 颜色 | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| 接口性别 | Male |
| 耐灼热丝 | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| 树脂材料 | High Temperature Thermoplastic |
| Mounting Style | Through Hole |
| 净重 | 2.917/g |
| 排数 | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| 配接间距 | 3.00mm |
| Pitch Termination Interface | 3.00mm |
| Plating Min Mating | 1.520µm |
| Plating Min Termination | 1.520µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| 可堆叠 | No |
| 工作温度范围 | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
| 包装类型 | Tray |
合规信息
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536693000 |
| CAHTS | 8536690020 |
| USHTS | 8536694040 |
| JPHTS | 853669000 |
| KRHTS | 8536691000 |
| MXHTS | 8536699999 |
| BRHTS | 85366990 |
| ECCN | EAR99 |
| Country of Origin | Mexico |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44; 33 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Not Relevant |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR19980 |
| UL | E29179 |
配套关系
| 配接系列 | 43025 - Micro-Fit 3.0 Dual Row Receptacle Housings、172952 - Micro-Fit TPA Receptacle Housings |
|---|
其他信息
| 产品状态 | Active |
|---|---|
| 原产国 | CN,JP,MX,PR,US |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
