产品资料

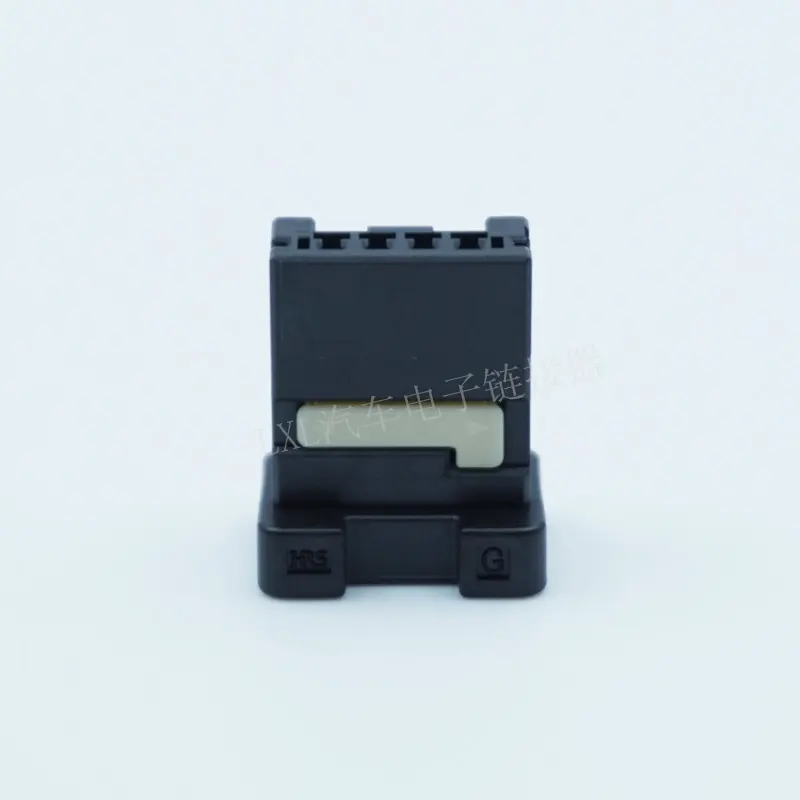

ZE05-4S-HU/R
ZE05-4S-HU/R 是 Hirose Connector 的 Wire-to-Board产品。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Hirose Connector
制造商
Hirose Connector
产品类别
Wire-to-Board
技术参数
| Packaging | Tray |
|---|---|
| Standard Pack Qty | 350 |
| 单位重量（kg） | 0.002131889 |
| Connector Type | Plug |
| Cable Assembly | No |
| Safety Standards | UL, C-UL/CSA |
| Number Of Positions | 4 |
| Rated Current | 2.0 A |
| Rated Voltage ( A C) | AC 60.0 V |
| Rated Voltage ( D C) | DC 60.0 V |
| Number Of Rows ( Interface) | 1 |
| Contact Pitch | 2.0 mm |
| Connector Length | 12.8 mm |
| Connector Width | 15.3 mm |
| Connector Height | 9.7 mm |
| Connector Orientation | Straight |
| Mating/ Unmating Cycles | 30 |
| Housing Color | Black |
| Wire Termination Method | Crimping |
| Recommended Wire Type | Discrete wire |
| Recommended Min. Wire Size ( A W G) | 26 |
| Recommended Max. Wire Size ( A W G) | 20 |
| Recommended Min. Wire Size (Mm²) | 0.13 mm² |
| Recommended Max. Wire Size (Mm²) | 0.5 mm² |
| Operating Temperature Max. | 125 ℃ |
| Operating Temperature Min. | -40 ℃ |
| Ro H S ( E U)2015/863 | Conforming |
| S V H C | 35th Non-Contained |
| Locking Style | Latch-lock |
| Metal Shields | No |
| Contact Resistance | 10.0 mΩ Max. |
| Withstanding Voltage | 1000 V Max. |
| Packaging Type | Tray |
| Purchase Unit | 350 PCS |
| Mass | 1.07 g |
| 净重 | 1.07 g |
| Qty/ Box | 350 PCS |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
合规信息
| CNHTS | 8547200000 |
|---|---|
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Japan |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
其他信息
| 产品状态 | 在产 |
|---|
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
