产品技术规格
| 应用领域 | 汽车电子 |
|---|---|
| 1 | 7.25 |
| 14000 | 4.516 |
| 20 | 6.905 |
| 3500 | 4.742 |
| 3Ddrawings | https://productdata.aptiv.com/api/assetstorage/2949_58061bb6-9394-40cf-99c1-ffd4620b3fb4/12015797_3D_STP |
| 700 | 4.877 |
| 7000 | 4.606 |
| Assembly Country of Origin | Not available |
| batch | N |
| BRHTS | 85389090 |
| CAHTS | 8538903900 |
| Catalogue | https://productdata.aptiv.com/api/assetstorage/2949_2817c047-0281-49f5-a58a-4d43263f7063/Low%20Voltage%20Catalog |
| CNHTS | 8547200000 |
| Country of Diffusion | Not available |
| Country of Origin | Mexico |
| Drawings | https://productdata.aptiv.com/api/assetstorage/2949_b51fd3b9-5dc8-4596-b951-c4b1a844eb93/12015797_2D_PDF |
| ECCN | EAR99 |
| ELV | True |
| JPHTS | 853890000 |
| REACH | True |
| RoHS | True |
| RoHS状态 | RoHS Compliant |
| Standard Pack Qty | 700 |
| TARIC | 8547200090 |
| USHTS | 8538908180 |
| 主锁定类型 | CAVITY LOCK |
| 交期 | 84 Days |
| 产品名称 | 12015797 (APTIV) |
| 产品概述 | Aptiv’s Weather Pack connectors are environmentally sealed electrical connectors designed to withstand exposure to extreme temperatures and moisture. They feature tin-plated terminals with special core wings that allow crimp-only connections, eliminating the need for solder. The connector and cavity seals are triple-ribbed and made of self-lubricating silicone. Cavity plugs are available to fill unused cavities. Weather Pack terminals utilize a flex-pin and lap-lock design to alleviate the problem of stress relaxation. They also have dual-locking tangs that lock into the connector cavity and help prevent backing out. |
| 产品状态 | GLOBAL - PN IN USE / HAS FUTURE USE |
| 产品系列 | Weather-Pack |
| 产品链接 | https://www.mouser.hk/en/ProductDetail/Aptiv-formerly-Delphi/12015797?qs=Pw7FMpsglsVKJckx8oiEbQ%3D%3D |
| 产地 | 墨西哥/MEX |
| 净重 | 8.05232 g |
| 出线方向 | 180° |
| 制造地点 | FW98 - CS CENTEC I MEXICO |
| 单位重量（kg） | 0.010561375 |
| 品名 | 塑壳 |
| 回路数 | 4 |
| 官方产品图片1 | https://productdata.aptiv.com/api/assetstorage/2949_be7d8b7b-bab3-4d3c-99c5-ae03c11b9558/12015797 |
| 官方产品图片2 | https://productdata.aptiv.com/api/assetstorage/2949_3232a8ed-4bfb-4311-b3c1-5c08075b1c05/12015792 |
| 宽度 | 37.1 |
| 排数 | 1排 |
| 接口性别 | Female |
| 是否密封 | True |
| 替代包装型号 | 12015797-B |
| 材料 | PA 66 |
| 标准包装数量 | 0 |
| 触头材料 | 不适用 |
| 贸泽编号 | 829-12015797 |
| 配套密封件 | 12010300, 15324982 |
| 配套端子 | 12089188 |
| 长度 | 40.5 |
| 颜色 | BLACK |
| 高度 | 22.5 |
| 接触件材质 | 不适用 |
| 包装 | Bulk |
Related product information
Similar products for discovery (not a compatibility or replacement claim)
Verified inquiry information
- Packaging
- Bulk
- Minimum order quantity
- 1
Manufacturer and authorized source records
Product information

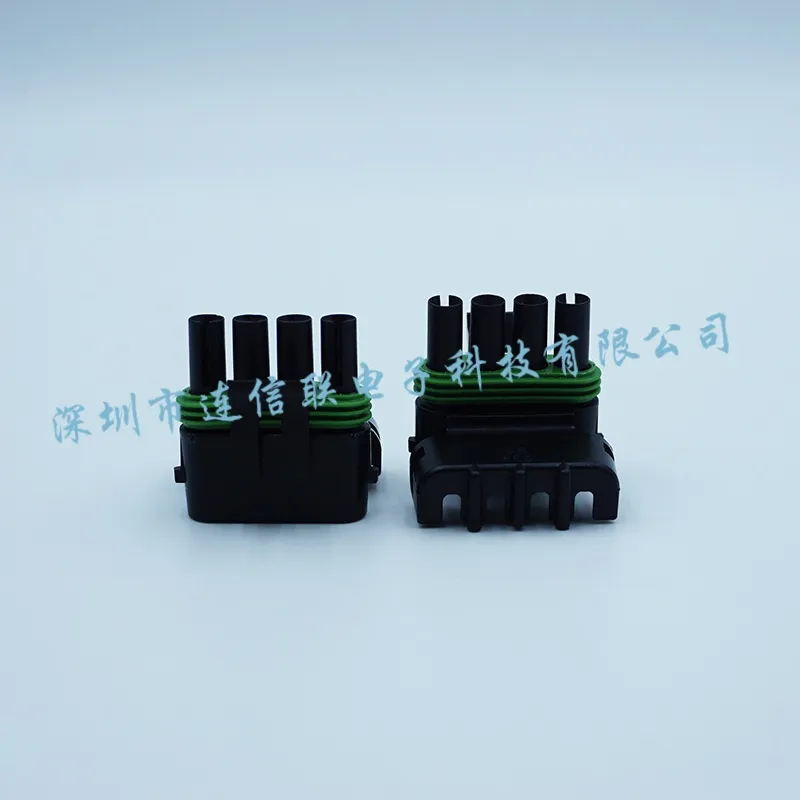

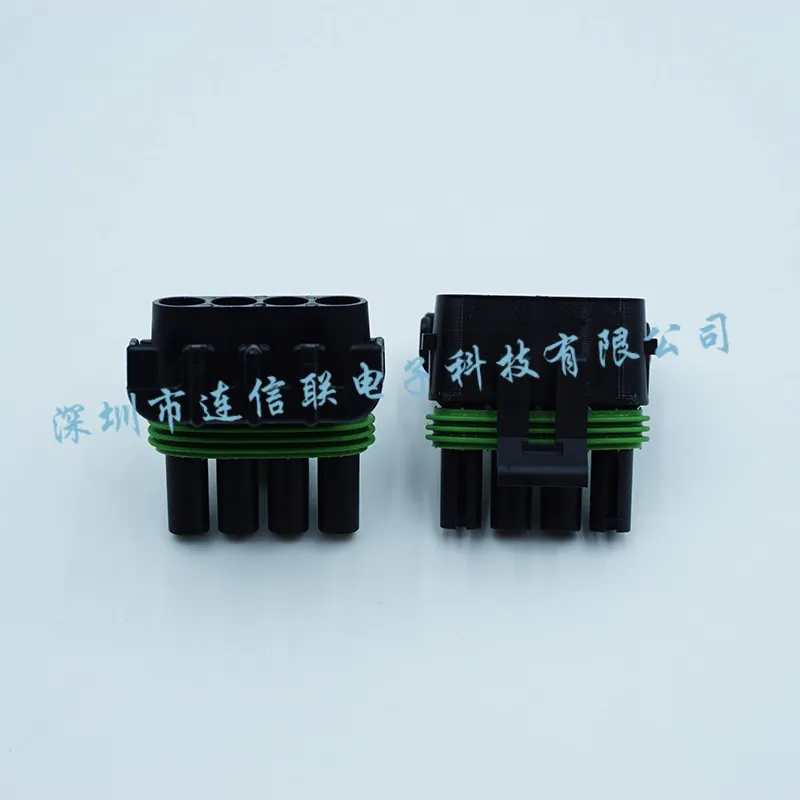

Aptiv 12015797 Electrical Connector
12015797 is a Aptiv Automotive Connectors. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
12015797
Brand
Aptiv
Category
Automotive Connectors
Technical specifications
| Packaging | Bulk |
|---|---|
| Standard Pack Qty | 700 |
| Unit weight (kg) | 0.010561375 |
| Color | BLACK |
| Interface gender | Female |
| Number of circuits | 4 |
| Product status | GLOBAL - PN IN USE / HAS FUTURE USE |
| Net weight | 8.05232 g |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8538903900 |
| USHTS | 8538908180 |
| JPHTS | 853890000 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Mexico |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| RoHS | True |
| REACH | True |
| ELV | True |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
